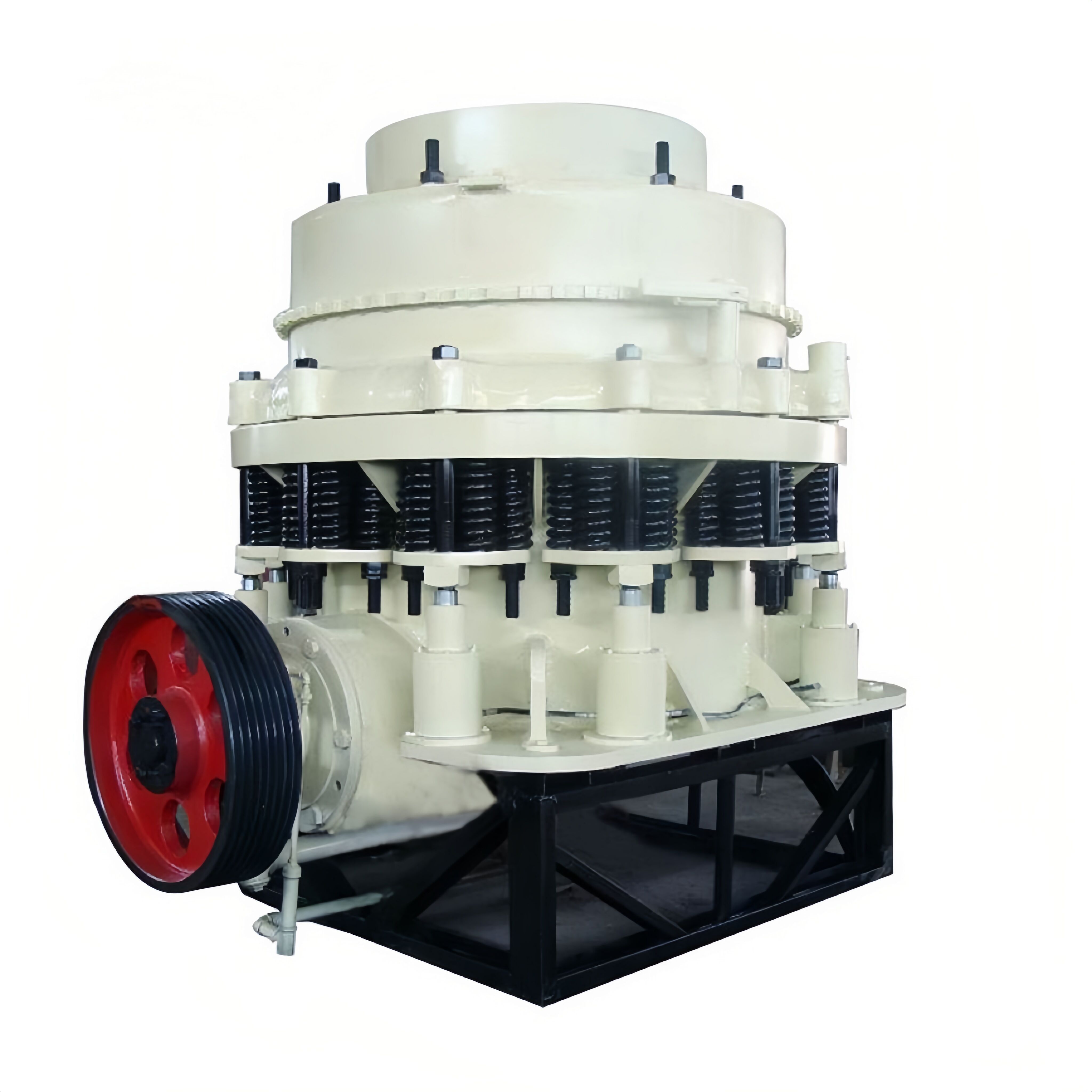

Stone Limestone Granite Gold Iron Ore Rock Hard Stone Cone Crusher
Stone Limestone Granite Gold Iron Ore Rock Hard Stone Cone Crusher
Stone Limestone Granite Gold Iron Ore Rock Hard Stone Cone Crusher
Stone Limestone Granite Gold Iron Ore Rock Hard Stone Cone Crusher
Stone Limestone Granite Gold Iron Ore Rock Hard Stone Cone Crusher
Stone Limestone Granite Gold Iron Ore Rock Hard Stone Cone Crusher
Stone Limestone Granite Gold Iron Ore Rock Hard Stone Cone Crusher
Stone Limestone Granite Gold Iron Ore Rock Hard Stone Cone Crusher

Stone Limestone Granite Gold Iron Ore Rock Hard Stone Cone Crusher

FOB Reference Price: Get Latest Price
≥1 Pieces
US $19999
≥2 Pieces
US $15999
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
Dpend on models
Weight:
5500 KG
Marketing Type:
Hot Product 2023
Product name:
Spring Cone Crusher
Name:
Crusher Stone Machine
Applicaton:
Mining Quarry
Quality:
High Grade
Keyword:
Portable Stone Crusher
Motor:
Chinese Famous Brand
Material:
High Manganese Cast Steel
Machine Type:
Broken

Quick Details

Application:
Mining/coal
Place of Origin:
Henan, China
Brand Name:
ASCEND
Dimension(L*W*H):
Dpend on models
Weight:
5500 KG
Marketing Type:
Hot Product 2023
Product name:
Spring Cone Crusher
Name:
Crusher Stone Machine
Applicaton:
Mining Quarry
Quality:
High Grade
Keyword:
Portable Stone Crusher
Motor:
Chinese Famous Brand
Material:
High Manganese Cast Steel
Machine Type:
Broken
Product Description

Product Introduction

The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing. According to stave work need of Cone crusher,cone crusher is mainly used in the compressive strength not surpassing 300Mpa each kind of ore and rock to medium crush and in broken bits .this is a typical equipment of our country for crushing hard ore to medium crush and broken bits.it is widely applied.it has the characteristics of high reduction ratio, high output,,few powder lost, the product granularity even, strong compatibility of hard grain.

Working Principle

Working Principle

The motor drives the eccentric sleeve to rotate through transmission shaft and gear. And the moving cone liner rotates under the eccentric bushing. The section of the moving cone liner close to the static cone liner becomes the crushing cavity, and the material is crushed between the moving and fixed cone liner. When the moving cone leaves the section, the material that has been broken to the required particle size falls under its own gravity and is discharged from the bottom of the cone.

Performance  Characteristics Of This Machine

1. The fuselage has high strength, and the accessories are finished and durable;  labyrinth combination, grease seal, good dust proof effect.

2. Semi-automatic hydraulic adjustment of the discharge port, fast and convenient;  special crushing chamber design, effectively improve production capacity.

3. The replacement of the movable and fixed tooth plates does not require fillers, which is convenient and quick, and can be quickly put into production and operation;  the fixed cone is mechanically locked by a swing bolt, which is easy to operate and has a low failure rate.

4. The lubricating oil circulating cooling system is designed according to the actual situation of the customer, and the temperature control system and pressure control system are convenient for customers to master and operate.

5. Over-iron protection, safe and reliable;  automatic cavity cleaning, fast and time-saving;  bevel gear transmission, firm and stable .

Technical Parameters

Technical Parameters

Type

Diameter of
cylinder
(mm)

Feeding size
(mm)

Adjustment range of output size
(mm)

Capacity
(t/h)

Rotation speed
(r/min)

Power
(kw)

Overall size
(mm)

Weight
(t)

PYB600

600

65

12-25

15-25

356

30

1740*1225*1940

5.5

PYZ600

600

45

5-18

8-23

356

30

1740*1225*1940

5.5

PYD600

600

36

3-13

5-20

356

30

1740*1225*1940

5.5

PYB900

900

115

15-50

50-90

333

55

2692*1640*2350

11.2

PYZ900

900

60

5-20

20-65

333

55

2692*1640*2350

11.2

PYD900

900

50

3-13

15-50

333

55

2692*1640*2350

11.3

PYB1200

1200

145

20-50

110-168

300

110

2790*1878*2844

24.7

PYZ1200

1200

100

8-25

42-135

300

110

2790*1878*2844

25

PYD1200

1200

50

3-15

18-105

300

110

2790*1878*2844

25.3

PYB1750

1750

215

25-50

280-480

245

160

3910*2894*3809

50.3

PYZ1750

1750

185

10-30

115-320

245

160

3910*2894*3809

50.3

PYD1750

1750

85

5-13

75-230

245

160

3910*2894*3809

50.2

PYB2200

2200

300

30-60

59-1000

220

260-280

4622*3302*4470

80

PYZ2200

2200

230

10-30

200-580

220

260-280

4622*3302*4470

80

PYD2200

2200

100

5-15

120-340

220

260-280

4622*3302*4470

81.4
