Quick Details
-
Power (kW):
-
15
-
Name:
-
Wood pallet notcher machine
-
Type:
-
Single/double heads
-
Speed:
-
600-800 pcs/h
-
Wood length:
-
max 2000mm
-
Wood width:
-
unlimited
-
Wood thickness:
-
160mm
-
Slot depth:
-
max 45mm
-
Goove width:
-
200-230mm
-
Blade material:
-
alloy steel
-
Package:
-
wooden case
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FUSION
-
Weight (KG):
-
400 KG
-
Power (kW):
-
15
-
Name:
-
Wood pallet notcher machine
-
Type:
-
Single/double heads
-
Speed:
-
600-800 pcs/h
-
Wood length:
-
max 2000mm
-
Wood width:
-
unlimited
-
Wood thickness:
-
160mm
-
Slot depth:
-
max 45mm
-
Goove width:
-
200-230mm
-
Blade material:
-
alloy steel
-
Package:
-
wooden case
Factory Log Home Machine Tongue And Groove Machine Wood Tongue And Groove Machine

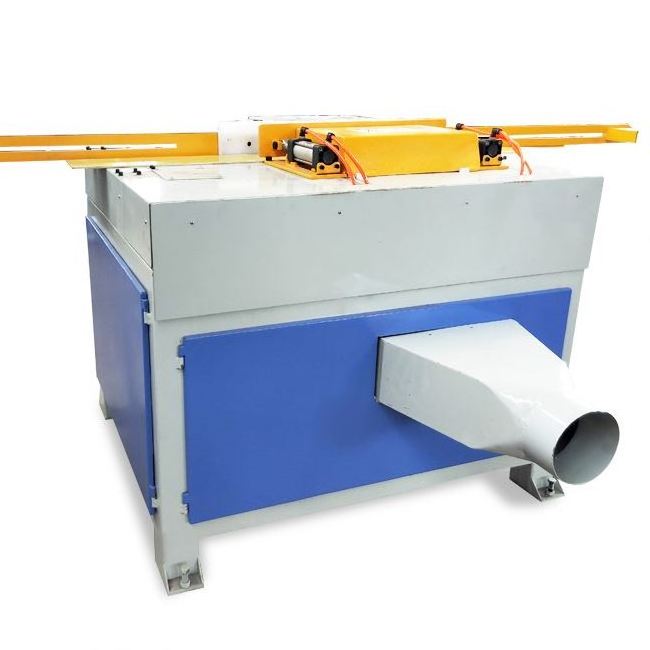

1. Introduction of wood pallet notcher machine:
1. wood pallet notcher machine(wood notcher machine). It's mainly used for grooving wood bars, square wood and wood pallets.
2. The machine is suitable for different notching size,it also can be customized according to customer requirements.
3.Adopt continuous feed, work platform automatic discharge. The slots are smooth and uniform, with high precision size.
4. The notch head is made of hard alloy steel, with advantage of high hardness, wear resistance, strength and toughness, heat resistance and corrosion resistance, thus guaranteeing the long term performance of the machine.
2. Technical parameters:
|
Model |
FX-01 (single head) |
FX-02 (double heads) |
|
Power |
15KW |
30KW |
|
Material of Knife |
Alloy |
Alloy |
|
Capacity |
600-800 PCS/H |
1800 PCS/H |
|
Processing Size |
Wood Pallet Length: max 2000mm |
Wood Pallet Length: max1300mm |
|
Wood Pallet Width: unlimited |
Wood Pallet Width: max 90mm |
|
|
Wood Pallet Thickness: 160mm |
Wood Pallet Thickness: max 40-60mm |
|
|
Slot Depth:<45mm |
Slot Depth:<45mm |
|
|
Slot Width:200-230mm |
Slot Width:200-230mm |
|
|
Machine Size |
1100*1100*1000mm |
2300*1100*1400mm |
|
Machine Weight |
400kg |
1000kg |
|
The groove size(width and depth) can be adjusted, also could be customized |
||
Gouging wooden pallets (also called digging holes wooden pallets) is one of the wooden pallets,which is made of in a special requirement, also known as "American wood pallet"; During cargotransport,push forklift only two-way into fork, pallet support beams above excavated convenientmachinery forklift operation, can realize machinery forklift four-way into fork.
