Quick Details
-
Luminous Efficacy(lm/w):
-
80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Miboxer
-
Product Name:
-

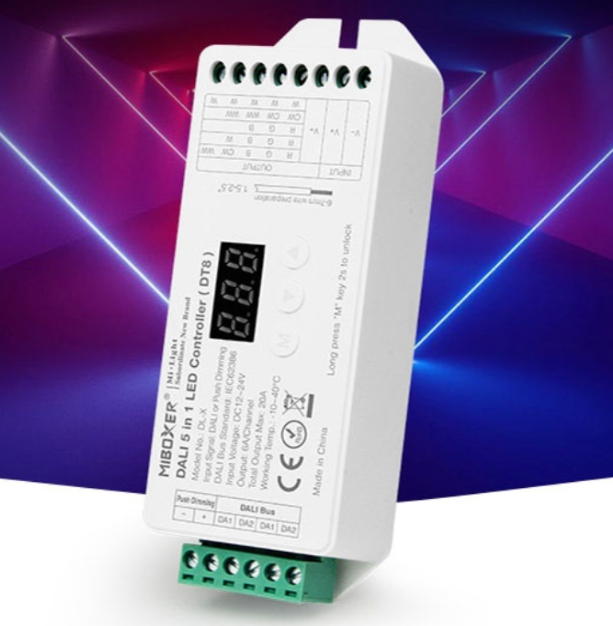

DALI 5 in 1 LED Controller (DT8)
-
Model No.:
-
DL-X
-
Working Voltage:
-
DC12V~24V
-
Working Temperature:
-
-10~40°C
-
Output Current:
-
20A
-
Output Power:
-
Max 480W
-
Input Signal:
-
DALI Dimming Signal/Push dimming
-
DALI Bus Standard:
-
IEC62386-102,207,209
-
Product Dimension:
-
130x27x49mm
-
Warranty:
-
2Year
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
Remote Control
-
Max. Load Power:
-
480W
-
Luminous Efficacy(lm/w):
-
80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Miboxer
-
Product Name:
-
DALI 5 in 1 LED Controller (DT8)
-
Model No.:
-
DL-X
-
Working Voltage:
-
DC12V~24V
-
Working Temperature:
-
-10~40°C
-
Output Current:
-
20A
-
Output Power:
-
Max 480W
-
Input Signal:
-
DALI Dimming Signal/Push dimming
-
DALI Bus Standard:
-
IEC62386-102,207,209
-
Product Dimension:
-
130x27x49mm
-
Warranty:
-
2Year
Technical Parameters
| Product Name | DALI 5 in 1 LED Controller (DT8) |
| Model No. | DL-X |
| Input Voltage | DC12V~24V |
| Working Temperature | -10~40°C |
| Input Signal | DALI Dimming Signal/Push dimming |
| Output Current | Max 20A |
| Standard Protocol | IEC62386-102,207,209 |
| Output Power | Max 480W |
| Output | 6A/Channel |
| Warranty | 2 Year |
| Packing size & net weight | 1PC/box,132x32x51mm, 0.12kg |
| Carton size & gross weight | 100pcs/carton, 335x273x290mm, 11.5kg |
