Quick Details
-
Application:
-
Drilling equipment
-
Dimension(L*W*H):
-
1000*900*900mm
-
Power:
-
15KW
-
Voltage:
-
380V/460V, 380V/460V
-
Weight (KG):
-
1200
-
Marketing Type:
-
New Product 2023
-
Frequency:
-
50HZ/60HZ
-
IP:
-
55
-
Explosion Proof:
-
Yes
-
RPM:
-
1480
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YAOU
-
Model Number:
-
JB/W15 Mud Agitator
-
Application:
-
Drilling equipment
-
Dimension(L*W*H):
-
1000*900*900mm
-
Power:
-
15KW
-
Voltage:
-
380V/460V, 380V/460V
-
Weight (KG):
-
1200
-
Marketing Type:
-
New Product 2023
-
Frequency:
-
50HZ/60HZ
-
IP:
-
55
-
Explosion Proof:
-
Yes
-
RPM:
-
1480
Products Description

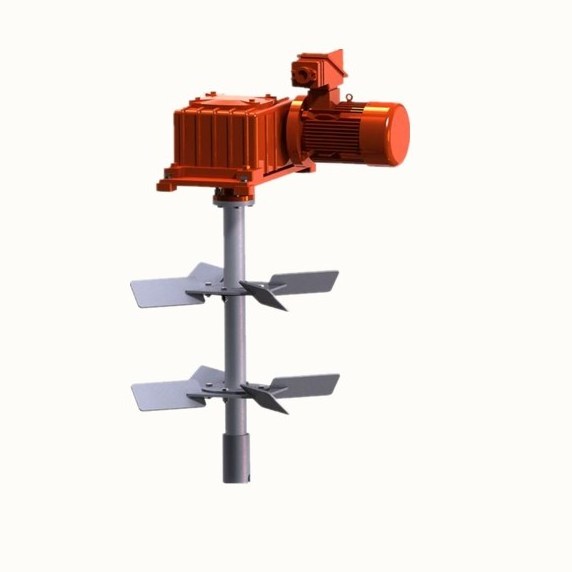

Drilling liquid agitator mixes the drilling liquid continuously to mix the drilling liquid evenly and make the cuts suspend in the drilling liquid. JB/15 Double impeller mud agitator use SEW reducer with Germanic technology. the agitator is effective, compact,
powerful, and easy to maintain.
Its characteristics
1. stable drive, less noise
2. good radiation, low temperature
3. good seal, no leakage.
4. big drive power, strong in mixing liable
5. no maintenance is needed within three years.
powerful, and easy to maintain.
Its characteristics
1. stable drive, less noise
2. good radiation, low temperature
3. good seal, no leakage.
4. big drive power, strong in mixing liable
5. no maintenance is needed within three years.
Product Paramenters
|
Model
|
JB/W15
|
JB/W15A
|
|
|
Motor
|
15KW(20hp)
|
7.5KW(20hp)
|
|
|
Shaft length
|
According to tank size and client’s requirement
|
|
|
|
Impeller type
|
Canted or turbine blade
|
|
|
|
Impeller layer
|
Double or single
|
|
|
|
Impeller diameter
|
Ø600~Ø1200mm
|
|
|
|
Speed
|
1480RPM or 1775RPM
|
|
|
|
Remark
|
When shaft length exceeds 1.7m, there will be stabilizer
|
|
|
Details Images
Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
