Quick Details
-
Function:
-
Charging
-
Brand Name:
-
Shengyoude
-
Model Number:
-
QX1200
-
Input voltage and current:
-
90-260V
-
output voltage and current:
-
12V/30A 24V/30A 48V/25A 60V/20A 72V/18A
-
Maximum Output Power:
-
1200W
-
Place of Origin:
-
Zhengzhou,China
-
Product name:
-
Waterproof Battery Charger
-
Keywords:
-
Charger Adaptor
-
Model:
-
QX1200
-
IP Rate:
-
IP67
-
Efficiency:
-
≥ 93% ( full loading )
-
Power factor:
-
99%
-
Communication:
-
CAN 2.0 (optional)
-
Certification:
-
CE ROHS
-
Warranty:
-
24 Months
-
Color:
-
Black+Sliver
Quick Details
-
Type:
-
Electric, Power Supply Adapter, Fast Charger
-
Port:
-
DC, AC
-
Material:
-
Aluminium
-
Function:
-
Charging
-
Brand Name:
-
Shengyoude
-
Model Number:
-
QX1200
-
Input voltage and current:
-
90-260V
-
output voltage and current:
-
12V/30A 24V/30A 48V/25A 60V/20A 72V/18A
-
Maximum Output Power:
-
1200W
-
Place of Origin:
-
Zhengzhou,China
-
Product name:
-
Waterproof Battery Charger
-
Keywords:
-
Charger Adaptor
-
Model:
-
QX1200
-
IP Rate:
-
IP67
-
Efficiency:
-
≥ 93% ( full loading )
-
Power factor:
-
99%
-
Communication:
-
CAN 2.0 (optional)
-
Certification:
-
CE ROHS
-
Warranty:
-
24 Months
-
Color:
-
Black+Sliver

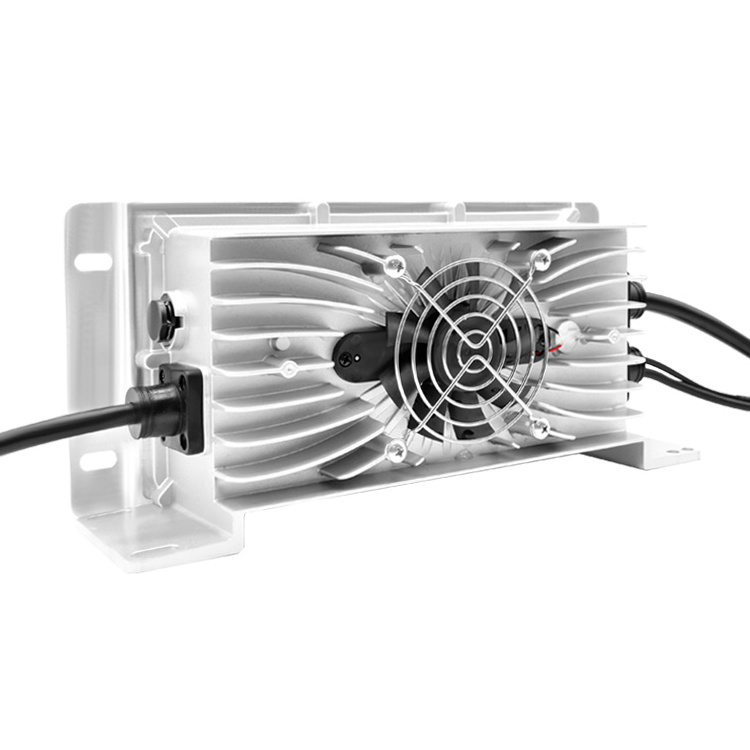

12V 20A 30A Waterproof Golf cart Lithium Battery Charger Integrated Type 3-pin Plug for 48V ClubCar Golf carts
Products Description
|
QX1200 Battery Charger Parameter
|
|
|
|
|
|
|
|
|
||||||||
|
Input voltage: 90VAC~260VAC 50HZ/60HZ
|
CV
|
|
|
CC
|
Transition /
Cut-off Current
|
|
Net Weight
|
Size
|
||||||||
|
Rated voltage
|
Lead Acid
|
Li-ion
|
LiFePo4
|
A
|
Lead Acid
|
Li
|
Kg
|
mm
|
||||||||
|
12V
|
14.7V
|
16.8V
|
14.6V
|
30A
|
4A
|
3A
|
3.0
|
281*128*80
|
||||||||
|
24V
|
29.4V
|
33.6V
|
29.2V
|
30A
|
4A
|
3A
|
|
|
||||||||
|
36V
|
44.1V
|
42V
|
43.8V
|
30A
|
4A
|
3A
|
|
|
||||||||
|
48V
|
58.8V
|
54.6V
|
58.4V
|
25A
|
3.3A
|
2.5A
|
|
|
||||||||
|
60V
|
73.5V
|
71.4V
|
73V
|
20A
|
2.7A
|
2A
|
|
|
||||||||
|
72V
|
88.2V
|
84V
|
87.6V
|
18A
|
2.4A
|
1.8A
|
|
|
||||||||
|
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.
|
|
|
|
|
|
|
|
|
||||||||
