Quick Details
-
Brand Name:
-
YF
-
Model Number:
-
MT-0-102-F001-T000-RS
-
Max. Current:
-
5A
-
Product name:
-
Transmitter Switch
-
Function:
-
ON-ON
-
Rating:
-
5a 125vac 2a 250vac
-
Color:
-
red
-
Electric Life:
-
10000cyles
-
Mechanical Life:
-
40000 cycles
-
Material:
-
H65
-
Name:
-
Toggle switch
-
Application:
-
remote control of airplane model
-
Termination:
-
Solder Lug
-
Certification:
-
RoHs
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125VAC
-
Place of Origin:
-
GuangDong
-
Brand Name:
-
YF
-
Model Number:
-
MT-0-102-F001-T000-RS
-
Max. Current:
-
5A
-
Product name:
-
Transmitter Switch
-
Function:
-
ON-ON
-
Rating:
-
5a 125vac 2a 250vac
-
Color:
-
red
-
Electric Life:
-
10000cyles
-
Mechanical Life:
-
40000 cycles
-
Material:
-
H65
-
Name:
-
Toggle switch
-
Application:
-
remote control of airplane model
-
Termination:
-
Solder Lug
-
Certification:
-
RoHs
Product Description
|
Specifications
|
|
|
Rating
|
5A 125VAC, 2A 250VAC
|
|
Contact Resistance
|
20MΩ Max
|
|
Insulation Resistance
|
500VDC 1000MΩ Min
|
|
Dielectric Strength
|
1500V AC， 1 Minute
|
|
Operatiing Temperature
|
-25ºC~+85ºC
|
|
Electrical Life
|
10000 cycles
|
|
Mechanical Life
|
40000 cycles
|
|
Circuit
|
SPDT
|
|
Switch function
|
ON ON
|
|
Materials:
|
|
|
Case
|
PPA(UL94V-0)
|
|
Actuator
|
Brass,Aluminium Alloy,Nickel-plated,Chrome-plated
|
|
Bushing
|
Brass,Aluminium Alloy,Nickel-plated,Chrome-plated
|
|
Housing
|
Stainless Steel
|
|
Support Bracket
|
Brass,Tin-plated
|
|
Contact/Terminals
|
Copper Alloy, Silver or Gold-plated
|
NOTE: Specifications and Materials listed above are for switches with standard options. For information on specific and custom switches, Please feel free to contact us.
Typical Applications:
• Medical equipment
• Telecommunications
• Instrumentation
• Machinery
• Medical equipment
• Telecommunications
• Instrumentation
• Machinery
•
Networking
Hardware：Nuts*2 ，Locking washer *1，Locking ring*1
Hardwares are available separately.

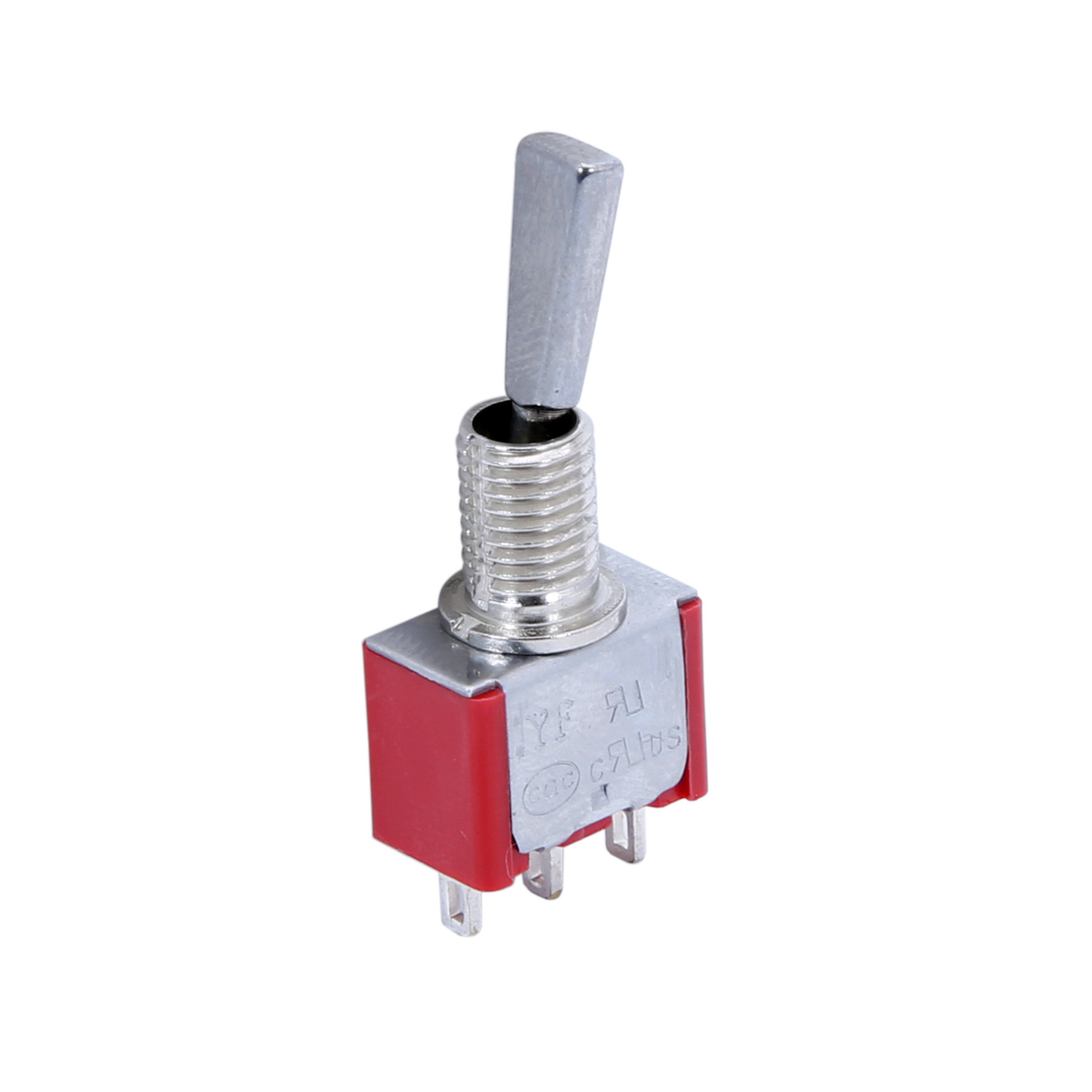

Toggle Switch
This product is mainly used for the remote control switch of airplane model.
Function:ON-OFF ON-ON ON-OFF -ON
Type:Flat long handle and Flat short handle
Material:H65/PPA
Electronic life:10000above
Mechanic life:40000
Packing & Delivery
PACKING :
Carton boxs
Delivery:
3-5DAYS
