Quick Details
-
Place of Origin:
-
Hebei, China
-
Product name:
-
Standing seam self lock metal roofing clip panel roll forming machine
-
Forming steps:
-
24 rows
-
Raw material:
-
Color Steel Sheet
-
Efficiency width:
-
675 mm
-
Main frame:
-
350 H steel
-
Material expand width:
-
1000 mm
-
Thickness of coil sheet:
-
0.2-0.8 mm
-
Suitable to process:
-
Color steel plate
-
Diameter of shaft:
-
70 mm or as your requirement
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
20-25 m/min
-
Place of Origin:
-
Hebei, China
-
Product name:
-
Standing seam self lock metal roofing clip panel roll forming machine
-
Forming steps:
-
24 rows
-
Raw material:
-
Color Steel Sheet
-
Efficiency width:
-
675 mm
-
Main frame:
-
350 H steel
-
Material expand width:
-
1000 mm
-
Thickness of coil sheet:
-
0.2-0.8 mm
-
Suitable to process:
-
Color steel plate
-
Diameter of shaft:
-
70 mm or as your requirement

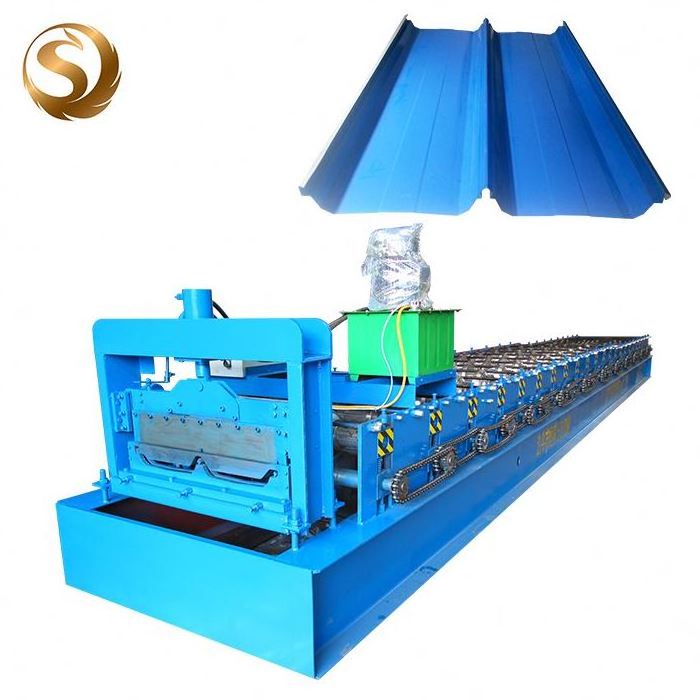

Standing seam self lock metal roofing clip panel roll forming machine
|
Raw material |
|
|
Material spec |
colored steel sheet , galvanized steel sheet, aluminum sheet |
|
Thickness of coil sheet |
0. 2 -0.8 mm |
|
Material expand width |
1000mm |
|
Efficiency width |
675mm |
|
Machine details |
|
|
Roller material |
high grade NO. 45 forged steel with 0.05mm hard chrome plating |
|
Shaft material |
high grade NO. 45 carbon wrought steel |
|
Cutting blade |
Cr12 mould steel with quenched treatment |
|
Diameter of shaft |
7 0mm or as your requirement |
|
Main frame |
350 H steel |
|
Forming steps |
24rows |
|
Hydraulic station power |
4 KW |
|
Hydraulic pressure |
10-12MPa |
|
Controlling system |
famous PLC computer control |
|
Material of cutting table |
Cr 12 mould steel with quenched treatment |
|
Hydraulic oil |
40# hydraulic oil |
|
After sale-services |
|
|
Delivery time |
30 workdays after receiving the deposit |
|
Payments |
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |
