Quick Details
-
Place of Origin:
-
ZHEJIANG
-
Brand Name:
-
CHYF
-
Model Number:
-
YF19-P11F-E
-
Certification:
-
CE ROHS
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
ZHEJIANG
-
Brand Name:
-
CHYF
-
Model Number:
-
YF19-P11F-E
-
Certification:
-
CE ROHS
|
Product name
|

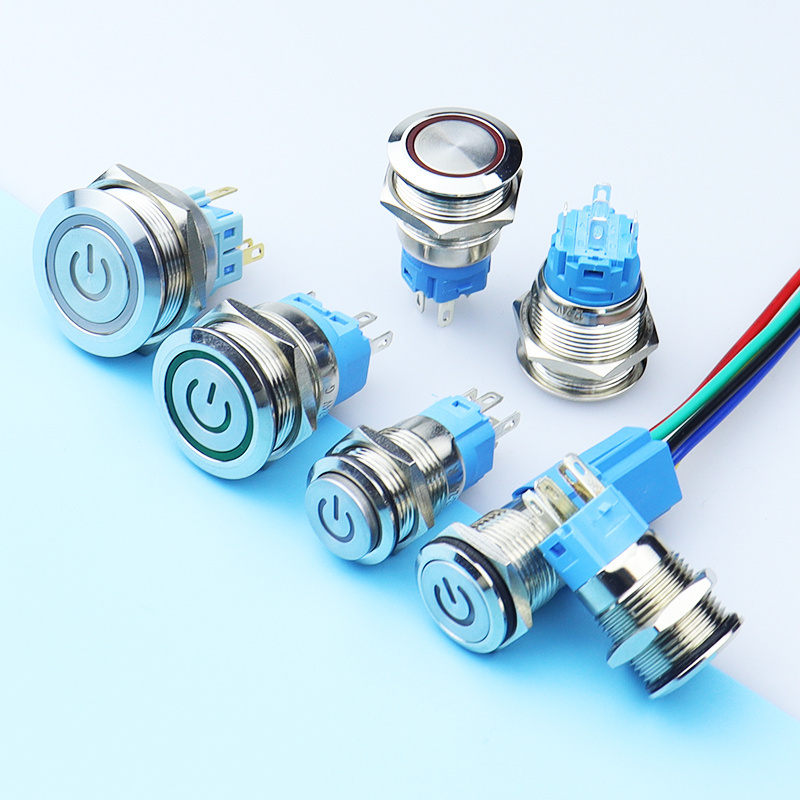

Push Button Switch
|
|
Material
|
Stainless steel/Nickel plated brass/Black oxide
|
|
Switch rating
|
3A/220V
|
|
Terminal type
|
Pin terminal
|
|
Point resistanc
|
Max50MΩ
|
|
Isolation resistance
|
≥1000MΩ
|
|
Isolation intensity
|
1500VAC，50Hz/60Hz
|
|
Operating temperature
|
-45℃~+78℃
|
|
Mechanical life
|
More than 500000 times
|
|
Electrical life
|
More than 100000 times
|
|
Panel thickness
|
1~15mm
|
|
Operating pressure
|
Abou4N
|
|
Operation travel
|
About2mm
|
|
IP degree
|
IP65
|
|
The material of contact
|
Silver alloy
|
|
Led type
|
High brightness LED lamp,cool
|
|
Luminous color
|
Red, Green, Blue, Yellow, White, Orange, Purple
|
|
Rated voltage
|
AC/DC 3V,5V,6V,12V,24,36V,48V,110V,220V
|
|
Rated current
|
≤20 mA
|
Q1: When can we get reply?
A; All inquiries will be repalied within 1 hour.
Q2: Could I put my own designs of label on the products?
A: sure, you can send your drawing or picture, we will do according your.
Q3: What products does your company mainly sell?
A： Our leading products are waterproof metal push button,plastic switches,indicators etc.Size 8mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm, 40mm push button switches are all available.
Q4: How long I can get the goods?
A: Most goods we have stock for it, delivery time about 1-5 days after received payment.For customzied requirement switch, time will be a longer.
Q5:What is your sample policy?
A:We can provide sample before formal order for your testing, but customer should pay courier cost.
Q6: What kind of logistics do you use for delivery?
We mainly deliver goods by DHL, UPS,FEDEX,EMS and other express delivery. we will choose the most cost-effective logistics for customers.Also supported goods picked by your forwarder.
Q7: What certificates have you obtained for your products?
A:Most of the products have passed CE RoHS and IP67.
