Quick Details
-
Roll Ratio(Front/Back):
-
1:1.25
-
Cooling Mode:
-
water cooling optional
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
ST
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1100*700*1200 mm
-
Power (kW):
-
2.8KW
-
Weight (KG):
-
380 KG
-
product name:
-
Open Mixing Two Roll Mill
Quick Details
-
Diameter of Roll(mm):
-
160 mm
-
Rotation Speed of Front Roll(rpm):
-
1 - 19 rpm
-
Length of Roll(mm):
-
350 mm
-
Roll Ratio(Front/Back):
-
1:1.25
-
Cooling Mode:
-
water cooling optional
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
ST
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1100*700*1200 mm
-
Power (kW):
-
2.8KW
-
Weight (KG):
-
380 KG
-
product name:
-
Open Mixing Two Roll Mill
Product Description

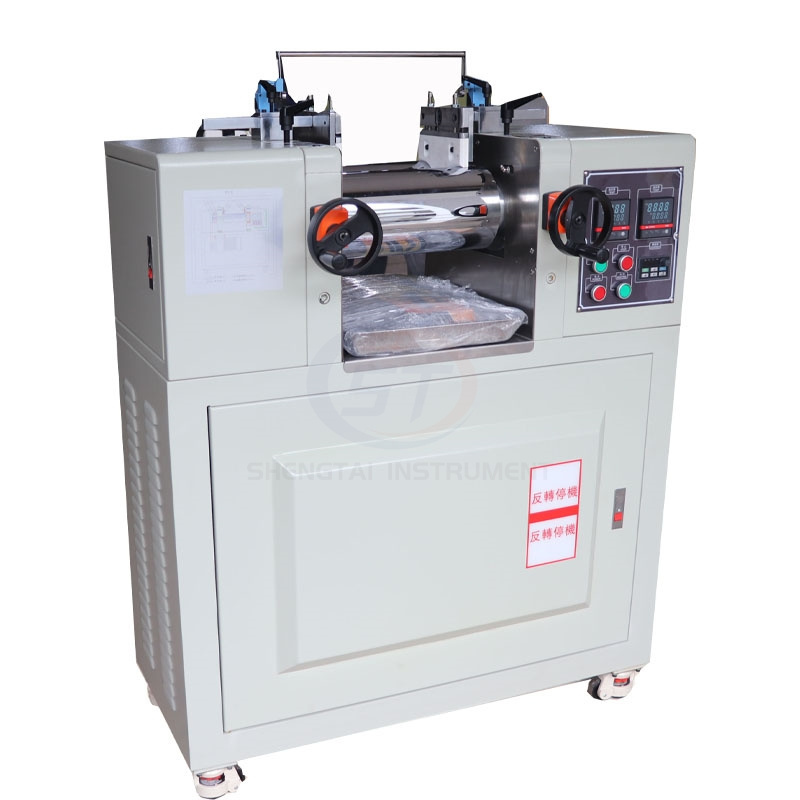

Small laboratory two roll mill
Introduction:
Suitable for for masterbatch, PVC, plastic, pigment plasticization
and dispersion. The machine uses a special mold for electric
heating, double-roller mirror chrome plating, uniform temperature.
The inverter installed in this machine can freely adjust the rotation
speed of the roller to meet the dispersion of raw materials of
different formulations.
1: Temperature range: RT~300 degrees.
Suitable for for masterbatch, PVC, plastic, pigment plasticization
and dispersion. The machine uses a special mold for electric
heating, double-roller mirror chrome plating, uniform temperature.
The inverter installed in this machine can freely adjust the rotation
speed of the roller to meet the dispersion of raw materials of
different formulations.
1: Temperature range: RT~300 degrees.
2: Controller: LED digital display, key setting input, digital display
output
3:Heating mode: Electric heater tube
4: Heating time:RT~200 degrees(about 25min)
5:Temperature accuracy: ±3℃
6:Roll size: Ø150× L320mm（we have other choice, please tell me your material then we will recommend best）
7:Space: 0.05~8mm adjustable
8:Speed: 0~35r/min adjustable
9:Ratio: 1:1.27
10:Power: 8KW safety protection: Pull rod emergency stop/ knee
top reversal and other security devices
11: Roller Material: High Hardness SKD Chrome Molybdenum Alloy
Roller surface: HRC 60 mirror chrome
11: Supply: 3,AC380V,22A
12:Weight: 525kg
Accessories:
1 cutting scraper and feeding tray: each one piece
2 heating rods: 2
3 product manual and quality certificate: each one piece
3. Oil gun: one piece
output
3:Heating mode: Electric heater tube
4: Heating time:RT~200 degrees(about 25min)
5:Temperature accuracy: ±3℃
6:Roll size: Ø150× L320mm（we have other choice, please tell me your material then we will recommend best）
7:Space: 0.05~8mm adjustable
8:Speed: 0~35r/min adjustable
9:Ratio: 1:1.27
10:Power: 8KW safety protection: Pull rod emergency stop/ knee
top reversal and other security devices
11: Roller Material: High Hardness SKD Chrome Molybdenum Alloy
Roller surface: HRC 60 mirror chrome
11: Supply: 3,AC380V,22A
12:Weight: 525kg
Accessories:
1 cutting scraper and feeding tray: each one piece
2 heating rods: 2
3 product manual and quality certificate: each one piece
3. Oil gun: one piece
Specification
|
roll szie
|
150*320
|
|
Temperature
|
RT- 200 degrees
|
|
Controller
|
digital control or touch screen control optional
|
|
Heating roll material
|
SKD Chrome molybdenum alloy/HRC60 Mirror chrome
|
|
Suitable material
|
masterbatch, PVC, plastic, pigment plasticization
and dispersion |
Heating roll
SKD Chrome molybdenum alloy/HRC60 Mirror chrome
Control Panel
Control system:
Including temperature,
Speed adjusting,
Heating, start and stop butto
Including temperature,
Speed adjusting,
Heating, start and stop butto
Protection system to avoid hand hurt
