Quick Details
-
Weight (KG):
-
180
-
Power (kW):
-
0.55
-
Functions:
-
Auto Maintenance Equipment
-
Max. dia. of valves to be ground:
-
90mm
-
Valve stem dia.:
-
3.5-20 mm
-
Usage:
-
valve grinder
-
Product Name:
-
valve grinder machine
-
Certification:
-
CE / ISO9001
-
Application:
-
valve Repair
-
Valve head dia.:
-
12-100mm
-
Valve length:
-
70-290mm
-
Angle grinding range:
-
10-57 degree
Quick Details
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1050x100x680mm
-
Weight (KG):
-
180
-
Power (kW):
-
0.55
-
Functions:
-
Auto Maintenance Equipment
-
Max. dia. of valves to be ground:
-
90mm
-
Valve stem dia.:
-
3.5-20 mm
-
Usage:
-
valve grinder
-
Product Name:
-
valve grinder machine
-
Certification:
-
CE / ISO9001
-
Application:
-
valve Repair
-
Valve head dia.:
-
12-100mm
-
Valve length:
-
70-290mm
-
Angle grinding range:
-
10-57 degree

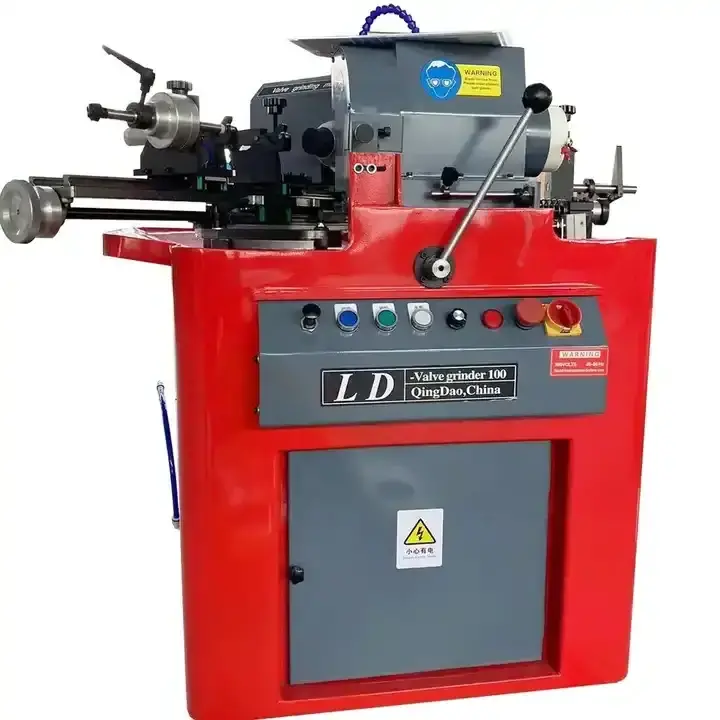

The main functions of valve grinding machine LD100:
1. reface the cone surface of the valve head
2. Reface the end surface of the valve stem
3. Reface the valve stem chamfers
4. Grinding wheel correction pen
1. reface the cone surface of the valve head
2. Reface the end surface of the valve stem
3. Reface the valve stem chamfers
4. Grinding wheel correction pen
Specification
|
Model
|
|
Unit
|
LD100A
|
LD100B
|
|
|
Valve stem dia.
|
|
mm
|
3.5-20
|
3.5-20
|
|
|
Valve head dia.
|
|
mm
|
12-100
|
12-100
|
|
|
Valve length
|
|
mm
|
70-290
|
70-290
|
|
|
Angle grinding range
|
|
degree
|
10-57
|
10-54
|
|
|
Main wheel diameter
|
|
mm
|
200
|
200
|
|
|
Cup wheel diameter
|
|
mm
|
100
|
100
|
|
|
Main wheel width
|
|
mm
|
15
|
15
|
|
|
Grinding wheel travel
|
|
mm
|
90
|
90
|
|
|
Valve feed travel
|
|
mm
|
90
|
90
|
|
|
Spindle motor
|
Power
|
w
|
550
|
550
|
|
|
|
Speed
|
rpm
|
2900
|
2900
|
|
|
Valve driving motor
|
Power
|
w
|
180
|
180
|
|
|
|
Speed
|
rpm
|
120-750
|
120-750
|
|
|
Coolant motor
|
Power
|
w
|
100
|
100
|
|
|
Power supply
|
|
KVA-V-HZ
|
380V 50HZ 3Phase
220V 60HZ 3Phase |
380V 50HZ 3Phase
220V 60HZ 3Phase |
|
|
Air supply max.
|
|
bar
|
Max 6
|
Max 6
|
|
|
Packing size(LxWxH)
|
|
mm
|
1050x100x680
|
1050x100x1080
|
|
|
Weight
|
|
kg
|
180
|
240
|
|
