Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1899 * 1096 * 30mm
-
Panel Efficiency:
-
21.4%
-
keyword:
-
Sunpal Shingled Solar Panels
-
Frame:
-
Silver / Black, Anodized Aluminium Alloy
-
Front Side Glass:
-
High Transparency Solar Glass 3.2/2.0mm
-
Size:
-
1899 * 1096 * 30mm
-
Cable:
-
4mm,+300mm/-1000mm(Vertical).+220mm/-180mm(Horizontal)
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Weight:
-
21.8kg
-
Application:
-
Residencial,Commercial & Industry
-
OEM Order:
-
Acceptable
Quick Details
-
Cell size:
-
210mmx210mm
-
Brand Name:
-
Sunpal
-

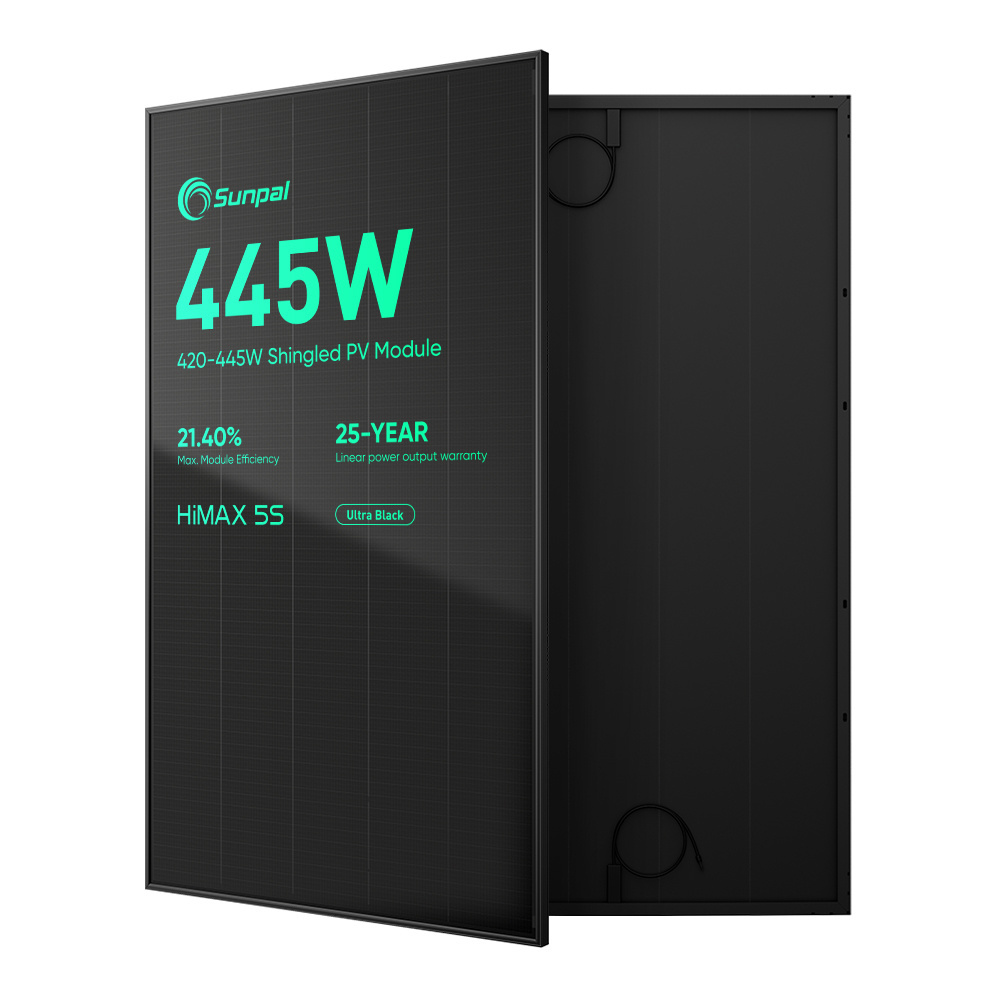

Model Number:
-
Shingled All Black 420-445W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1899 * 1096 * 30mm
-
Panel Efficiency:
-
21.4%
-
keyword:
-
Sunpal Shingled Solar Panels
-
Frame:
-
Silver / Black, Anodized Aluminium Alloy
-
Front Side Glass:
-
High Transparency Solar Glass 3.2/2.0mm
-
Size:
-
1899 * 1096 * 30mm
-
Cable:
-
4mm,+300mm/-1000mm(Vertical).+220mm/-180mm(Horizontal)
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Weight:
-
21.8kg
-
Application:
-
Residencial,Commercial & Industry
-
OEM Order:
-
Acceptable
Products Description
|
Maximum Power: Pmax [W]
|
445
|
440
|
435
|
430
|
|
425
|
|
420
|
|||||||
|
Open Circuit Voltage: Voc [V]
|
43.8
|
43.7
|
43.6
|
43.5
|
|
43.4
|
|
43.3
|
|||||||
|
Short Circuit Current: Isc [A]
|
13.01
|
12.90
|
12.79
|
12.68
|
|
12.56
|
|
12.46
|
|||||||
|
Voltage at Maximum Power: Vmp [V]
|
36.4
|
36.3
|
36.2
|
36.1
|
|
36.0
|
|
35.9
|
|||||||
|
Current at Maximum Power: Imp [A]
|
12.23
|
12.13
|
12.02
|
11.92
|
|
11.81
|
|
11.71
|
|||||||
|
Module Efficiency: [%]
|
21.4
|
21.1
|
20.9
|
20.7
|
|
20.4
|
|
20.2
|
|||||||
|
Power Output Tolerance (W)
|
0~+5
|
|
|
|
|
|
|
|
|||||||
|
Temperature Coefficient of Isc
|
+0.04%/°C
|
|
|
|
|
|
|
|
|||||||
|
Temperature Coefficient of Voc
|
-0.27%/°C
|
|
|
|
|
|
|
|
|||||||
|
Temperature Coefficient of Pmax
|
-0.34%/°C
|
|
|
|
|
|
|
|
|||||||
Certifications
Smart Manufacturing
Modularized fully automated production lines enable fast delivery and cost savings. To achieve high utilization rate and efficiency, SunPal divided the whole production chain into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.
Details Images & Packing
Project Case
Commercial
Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And SunPal was, is, and will always be a reliable partner which you won`t regret to choose.
Residential
Thousands of houses around the globe are equipped with SunPal solar panel systems, so they can now enjoy the clean power with a lower electricity bill and moreover, make profits from them.
