Quick Details
-
Power (kW):
-
13.37
-
Range of Spindle Speed(r.p.m):
-
3200 - 5800 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kuayue
-
Voltage:
-
Customized, Customized
-
Dimension(L*W*H):
-
depends on model
-
Weight (KG):
-
800 KG
-
Marketing Type:
-
New Product 2022
-
Model Number:
-
15/20/30/60/80
-
Available device:
-
dust-collection
-
Weight:
-
depending on what model
-
Power:
-
depending on what model
-
Capacity:
-
10-2000kg/h
-
Fuction:
-
Make Dry Powder
-
Product name:
-
Grinder Pulverizer
Quick Details
-
Output (kg/h):
-
10 - 2000 kg/h
-
Feeding Size (mm):
-
5 - 20 mm
-
Output Size (mesh):
-
40 - 600 mesh
-
Power (kW):
-
13.37
-
Range of Spindle Speed(r.p.m):
-
3200 - 5800 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kuayue
-
Voltage:
-
Customized, Customized
-
Dimension(L*W*H):
-
depends on model
-
Weight (KG):
-
800 KG
-
Marketing Type:
-
New Product 2022
-
Model Number:
-
15/20/30/60/80
-
Available device:
-
dust-collection
-
Weight:
-
depending on what model
-
Power:
-
depending on what model
-
Capacity:
-
10-2000kg/h
-
Fuction:
-
Make Dry Powder
-
Product name:
-
Grinder Pulverizer
Product Description

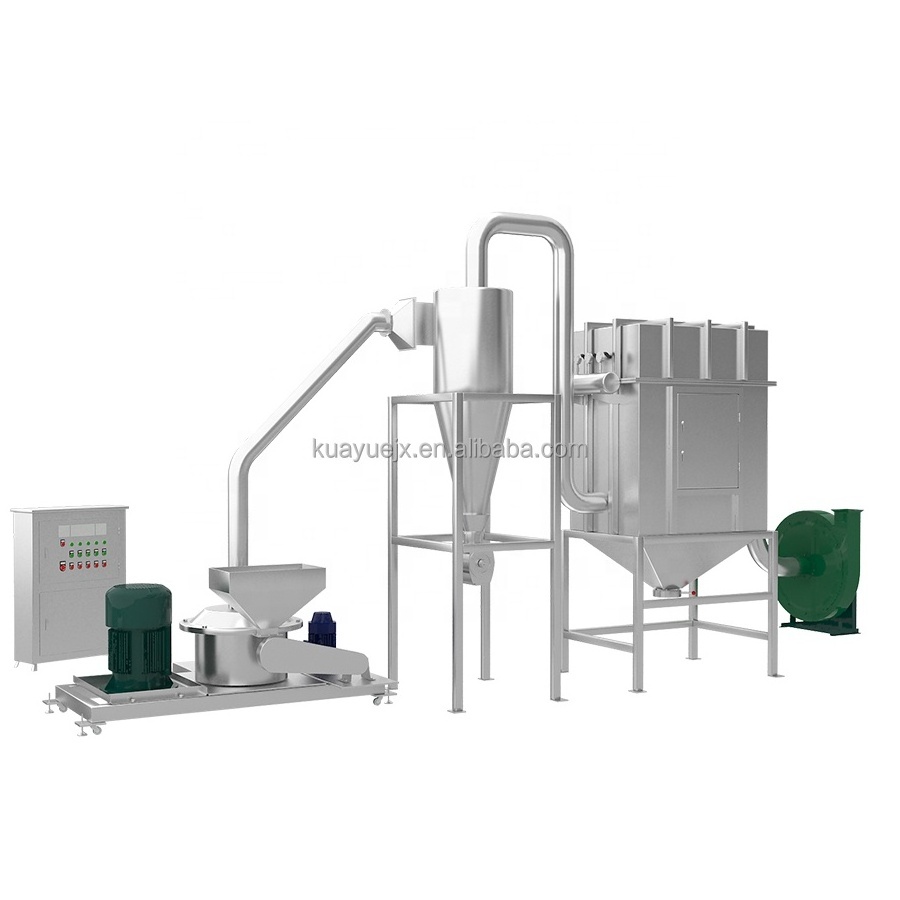

WFJ SERIES MICRO PULVERIZER
It is composed of main crushing machine, cyclone separator, pulse dust-collecting box and centrifugal fan. The material enters the crushing chamber through the feeding hopper and is crushed by the interaction of the high-speed rotating movable cutter disc and the fixed tooth disc,the grinding fineness can be achieved by adjusting the rotating speed of the classifying impeller with the adjusting speed transmission. The faster the rotating speed of the classifying impeller,the finer the fineness of the discharge. The crushed material enters the cyclone separation chamber by the rotating centrifugal force and the induced draft fan. After the fan is closed, the material is discharged and the dust enters the pulse dust removal box. The machine is designed in accordance with GMP standard and is made of stainless steel. There is no dust flying in the production process. The machine is widely used in food, chemical,feed,calcium carbonate, fiber plants, dyes, coatings, pesticides and other low-hardness materials of fine grinding.
Specification
|
Model
|
WFJ-15
|
WFJ-20
|
WFJ-30
|
WFJ-60
|
WFJ-80
|
||||
|
Production Capacity (kg)
|
30~80
|
80~200
|
200~400
|
400~800
|
500~1000
|
||||
|
Feeding size (mm)
|
<10
|
<10
|
<12
|
<12
|
<12
|
||||
|
Crushing fineness (mesh)
|
40-600
|
|
|
|
|
||||
|
Motor power (kw)
|
13.37
|
18.37
|
42.5
|
77.5
|
96
|
||||
|
Spindle speed (rpm)
|
5800
|
4200
|
3800
|
3200
|
2800
|
||||
|
Weight (kg)
|
1000
|
1200
|
1800
|
2500
|
3000
|
||||
|
Overall dimension
(L*W*H)(mm) |
4500x1250x2700
|
6000x1250x2900
|
7100x1300x3650
|
8000x2300x4500
|
8500x2500x4600
|
||||
Details Images
Packing & Delivery
wooden case or container for Powder Pulverizer.
