Quick Details
-
Model Number:
-
DS3566
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Geniatech
-
D/C:
-
5V 2A
-
Function:
-
SBC Module
-
Core Processor:
-
arm
-
Chipset:
-
Rockchip RK3566
-
Market area:
-
Global
-
CPU:
-
Quad-core ARM Cortex-A55 1.8GHz
-
RAM:
-
2GB~8GB LPDDR4
-
ROM:
-
16GB~128GB eMMC
-
Operating temperature:
-
0~60℃
-
Network:
-
Cellular: 2G/3G/4G/LTE
-
Operating system:
-
Debian10/ Android11
-
Power supply:
-
DC5V 2A
-
Size:
-
124mm*85mm
Quick Details
-
Type:
-
Development Board
-
Series:
-
Development board
-
Description:
-
high-performance intelligent display
-
Model Number:
-
DS3566
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Geniatech
-
D/C:
-
5V 2A
-
Function:
-
SBC Module
-
Core Processor:
-
arm
-
Chipset:
-
Rockchip RK3566
-
Market area:
-
Global
-
CPU:
-
Quad-core ARM Cortex-A55 1.8GHz
-
RAM:
-
2GB~8GB LPDDR4
-
ROM:
-
16GB~128GB eMMC
-
Operating temperature:
-
0~60℃
-
Network:
-
Cellular: 2G/3G/4G/LTE
-
Operating system:
-
Debian10/ Android11
-
Power supply:
-
DC5V 2A
-
Size:
-
124mm*85mm

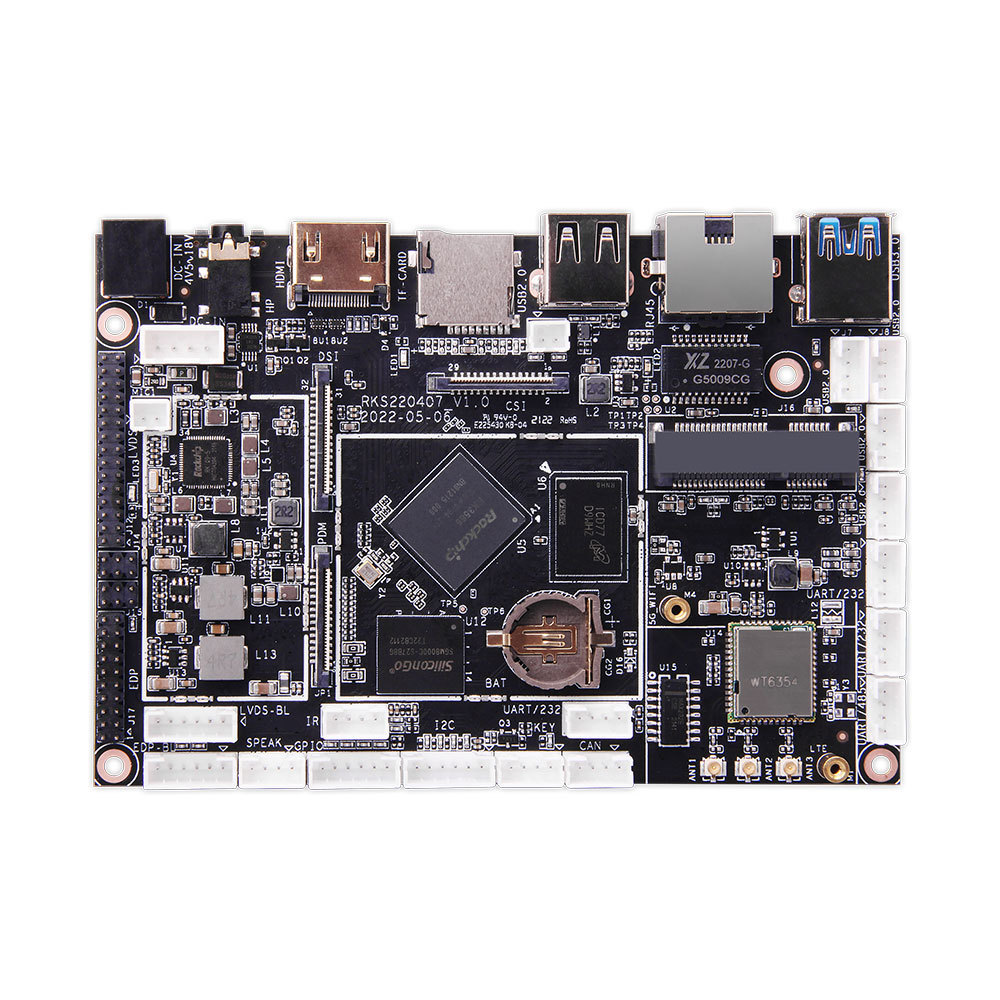

Geniatech DS-3566 is a high-performance intelligent display SBC which is specially developed for commercial display industry. It
adopts Rockchip RK3566 processor, and supports HDMI® 4K display output. DS-3566 also features LVDS、eDP、MIPI-DSI display interfaces
and can access internet through 4G、WiFi and wired network. It supports Linux Debian10/Android 11 system. With open system
architecture design, we provide technical datasheet for your secondary development. It is the best choice for commercial display
advertising machine, touch control machine, conference tablet, cash register and self-service terminal.
adopts Rockchip RK3566 processor, and supports HDMI® 4K display output. DS-3566 also features LVDS、eDP、MIPI-DSI display interfaces
and can access internet through 4G、WiFi and wired network. It supports Linux Debian10/Android 11 system. With open system
architecture design, we provide technical datasheet for your secondary development. It is the best choice for commercial display
advertising machine, touch control machine, conference tablet, cash register and self-service terminal.
|
Chipset
|
Rockchip RK3566
|
|
Market area
|
Global
|
|
CPU
|
Quad-core ARM Cortex-A55 1.8GHz
|
|
RAM
|
2GB~8GB LPDDR4
|
|
ROM
|
16GB~128GB eMMC
|
|
Cellular
|
2G/3G/4G/LTE
|
|
Network
|
• Cellular: 2G/3G/4G/LTE
• WiFi: 802.11 a/b/g/n/ac
• Ethernet: 1*RJ45 10/100/1000 Mbps LAN
|
|
I/O
|
USB: USB-A 3.0 x 1, USB-OTG 2.0 x1， USB2.0 4P 2.0 Pinx4
DS-IN: Power supply
RS232: 4P 2.0Pin，UART/RS232 x3
RS485: 4P 2.0Pin，UART/RS485 x1 GPIO: 2P 2.0Pin，GPIOx2 CAN: 4P 2.0Pin，CANx1 SPI: 6P 2.0Pin，SPIx1
I2C: 6P 2.0Pin，I2Cx1
Mic: 2 × Mic
SPEAKER:4P 2.0Pin, SPEAKERx1
PDM: FPC， PDMx1
|
|
Communication protocol
|
• Bluetooth 4.1
• RS485: TIA485/EIA-485-A -7 ~ +12V
• CAN: ISO11898-2:2016 and SAE J2284-1 to SAE J2284-5 ESD（8kV IEC and HBM）
5Mbit/s
• RS232: ±5 ~ ±15V
• GPIO: 3.3V ±15KV ±10KV
|
|
Display
|
LVDS x1
eDP x1
MIPI-DSI x1，4Lane
MIPI-CSI X1, 4Lane
|
|
|
IR
Micro SIM Card
TF Card
Debug Port 4P 2.0pin
ADC Key
|
|
Operating system
|
Debian10/ Android11
|
|
|
|
|
|
|
|
|
|
|
|
|
