With G7 wireless digital alarm input and Base Station Extender, you can start monitoring sensor measurement online remotely.

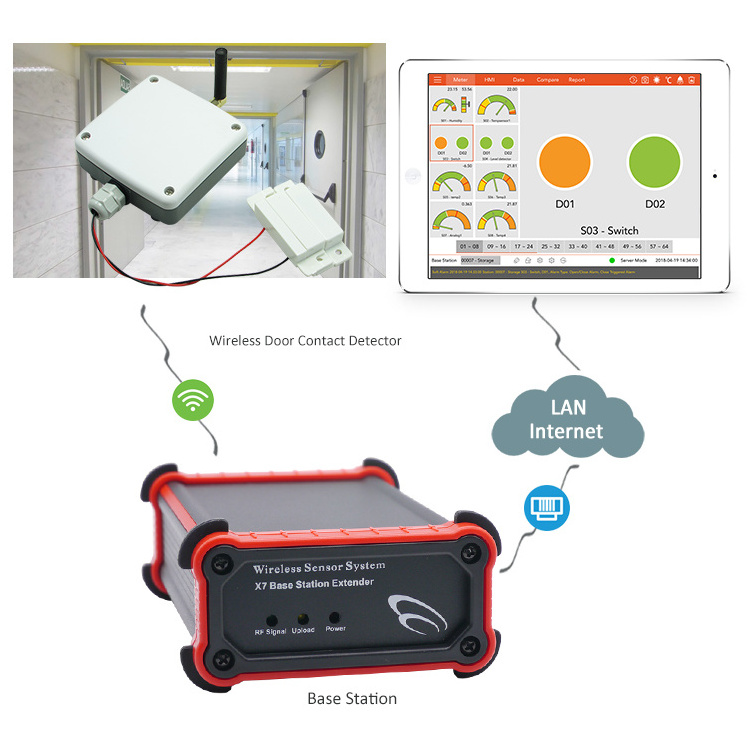

Wireless sensor G7 transmits measurement of any detector with dry contact output signal to Base Station via wireless signal to Base Station via wireless signal. Base Station receives wireless data from sensors.  Extender receives wireless data from base stations and uploads to central server in interval via Modbus TCP protocol.

G7-Centre App receives data from Extender over Internet or LAN.

G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by high or low level of sensor reading e.g. air pressure, water level, load cell or CO2.

[Detail]

X7 Base Station Extender:

X7 extends the wireless distance up to 5km

creating the IoT platform of sensor data exchange

96 wireless sensors each station 5

5000 meter extended LoRA wireless distance

G7 - D2 Wireless Digital Alarm

supports 2 channels of digital alarm inputs

It is widely used in remote alarm of oil tank level switch or cold food fridge door open

Low Power Design: Micro-controller supports sleep mode for 3-5 years long operation in battery.

Wireless Door Contact Detector
* supports max. 64 wireless detectors
* battery operated

applications:
- building management
- hotel room or office door open
- hospital or dangerous sites
- machines room or data centre

² Instant Alarm

It provides instant alarm even in sleep mode.

·           Programmable repeated alarm interval

·           Programmable number of repeated alarms

·           Low battery alarm

² Digital Input Status

Keep track of input status in interval

Alert user when alarm input resumes normal

² LAN/Internet Connection

Base Station sends alarm over LAN/Internet instantly

Both fixed IP and DDNS are supported

Support TCP Modbus for BMS integration

² Digital Alarm Detector

Support any alarm detector with on/off dry contact output

² Simple Installation

·           No cabling for wireless transmitter

·           2 wire connection with detector

[Technical Specification]

G7-D2	Wireless Digital Alarm Input
Digital Alarm Input	2 x channels
	Dry Contact
NO (Normal Open)	Closed Alarm Triggered
Upload Interval	5s ~ 4 hours
Wireless Distance	1200 meter (unblock)
Sensor ID:	User programmable 5 digits
RF Wireless	433MHz (license free)
RF Power	< 20dBm
Operation Rating	80mA (data transmission)
Standby Rating:	~3.0uA (sleep mode)
Operating Voltage	2.5~3.6V DC
Battery 3400mAh	~ 3 year (1hr upload)
Dimension	80 x 80 x 28 mm

Base Station Extender
Station Mode	1200m wireless to sensors
Extender Mode	4000m wireless to station
Upload Interval	5s ~ 4 hours
Protocol:	TCP/IP Network
	TCP Modbus support
Network Port	10/100M Ethernet
	Fixed & Dynamic IP
Upload Central Server	Fixed IP & DDNS
Industrial Support	Modbus TCP protocol
RF Wireless	433MHz, 4.8Kbit/s
RF Address/Band	255/15
Operating Voltage	9V DC
Rating	< 1A
Operating Temperature	-15 ~ 75 °C
Dimension	110 x 95 x 45 mm

How to receive the wireless sensor data?

G7 Wireless Sensor sends real time data wirelessly through radio wave to the Base Station.

Base Station collects the measurement of its wireless sensors, and uploads to Extender with max.

1200m wireless distance.

Extender collects all sensors data from base stations wireless, and uploads in one packet to central

server via Ethernet port.

Each Extender supports max. 4 base stations or 96 wireless sensors.

X7 can be user programmed as [Base Station] or [Extender] by user using free bundled X7 Setup

Software.

Free Alarm Monitoring Software

·           Real Time Alert on alarm & resume normal

·           Monitoring max. 320 alarm sensors

·           Max. 100 base stations

·           Each sensor supports max. 2 alarm inputs

·           Sensor battery low level alert

·           Audio & Display alerts, Email & SMS Alarm

·           Email Alarm sent to max. 5 users mailbox

·            SMS Alarm sent to max. 5 users mobile phone

·            Digital Alarm On, Off, Resume status in different alert colors

·           Alert on wireless sensor communication loss

·           Base Station and Sensor Name are user programmable

·           Auto fill search base station or sensor ID and name

[INTEGRATION]

Support third party system integration:

1) TCP Modbus

²  via industrial standard Modbus data registers

²  TCP Modbus tool is bundled free

²  Data can be accessed by other SCADA directly

2) API driver

²  API dll for third party development

3) REST API

²  Web Service API for third party web portal

4) Centre Software

²  Data received and saved into text file

5) G7 Server (op ti onal)

²  Data received and saved into database

[Application]

Gas Refueling System - elimina ti ng overflow or under refuel problem

Oil Tanks - real ti me alert on below or above normal levels

Mobile Oil or Gas Tanks - no cable connec ti on is needed from mobile tanks to monitoring system

Mul ti ple Tanks Monitoring System - one single so ft ware is capable of monitoring > 500 tanks

Hotels - no cabling cost, real ti me monitoring of water leak in max. 500 rooms

Hospital - no cable installa ti on, minimize loss of medical equipment or material in water leak

Factory - wireless sensor can be installed anywhere e.g. produc ti on line, package or storage

Warehouse - complete environmental monitoring together with wireless temperature & humidity sensors
