Quick Details
-
Description:
-
Fan Motor capacitor
-
Capacitance:
-
Motor capacitor CBB61
-
Product name:
-
Fan Motor capacitor CBB61
-
Size:
-
Customers' Requirement
-
Quality:
-
Drawing Standard
-
Application:
-
Drum washing machine
-
SIZE:
-
38X27X16MM
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NIDE
-
Model Number:
-
NDPJ-CBB61-1
-
Description:
-
Fan Motor capacitor
-
Capacitance:
-
Motor capacitor CBB61
-
Product name:
-
Fan Motor capacitor CBB61
-
Size:
-
Customers' Requirement
-
Quality:
-
Drawing Standard
-
Application:
-
Drum washing machine
-
SIZE:
-
38X27X16MM
1.2UF Electric Fan Capacitor CBB61 AC Motor Capacitor 450V
CBB61 capacitor is a kind of AC motor running & starting capacitor. Its shape is generally rectangular. It is characterized by large capacity, low loss, strong moisture resistance, good reliability and excellent electrical performance. The ambient temperature suitable for use is -40℃~+85℃. Our company can develop, design and produce products that meet various special needs according to the different needs of customers.
Capacitor Application :
CBB61 capacitors are mainly used in electric fans, mahjong machines, bread machines, paper shredders, range hoods, etc.
Capacitor Feature:
1. Encapsulated in plastic shell, with good appearance consistency.
2. Small loss at high frequency, suitable for larger current.
3. High insulation resistance, good self-healing and long life.
Capacitor Structure:
1. The capacitor core is wound by metallized organic film.
2. Plastic shell, flame retardant epoxy resin potting, single capacitor core or multi-capacitor core can be installed in one shell.
3. The installation components include plastic ears and iron ears.
4. The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.
Capacitor Parameter
| Product Name: | AC Motor Capacitor |
| Model: | CBB61 |
| Material: | Metal Plastic; |
| Voltage: | 250VAC,370VAC,440VAC,450VAC 50/60Hz |
| Max.TEMP: | 70°C |
| Size: | 38X27X16MM |
| Reference standards: | GB/T 3667.1 ( IEC60252-1 ) |
| Climatic category: | 40/ 70/21,40/85/21 |
| Class of operation | Class B (10000h) Class C (3000h) |
| Class of safety protection | S0 /S3 |
| Capacitance range | 1~35μ F |
| Capacitance tolerance | +- 5%,+-10%, +- 15% |
| Dissipation factor | 20x10^(-4) ( 100Hz, 20°C ) |
| Test voltage terminalto terminal UTT | 2Un for 2 seconds |
| Test voltage terminal to caseUTC | (2Un+ 1000)VAC or 2000VAC- 50Hz for 60 seconds |
| RC | ≥3000s (100Hz, 20°C,1min) |
Capacitor Feature:
Self-healing
High stability
reliability

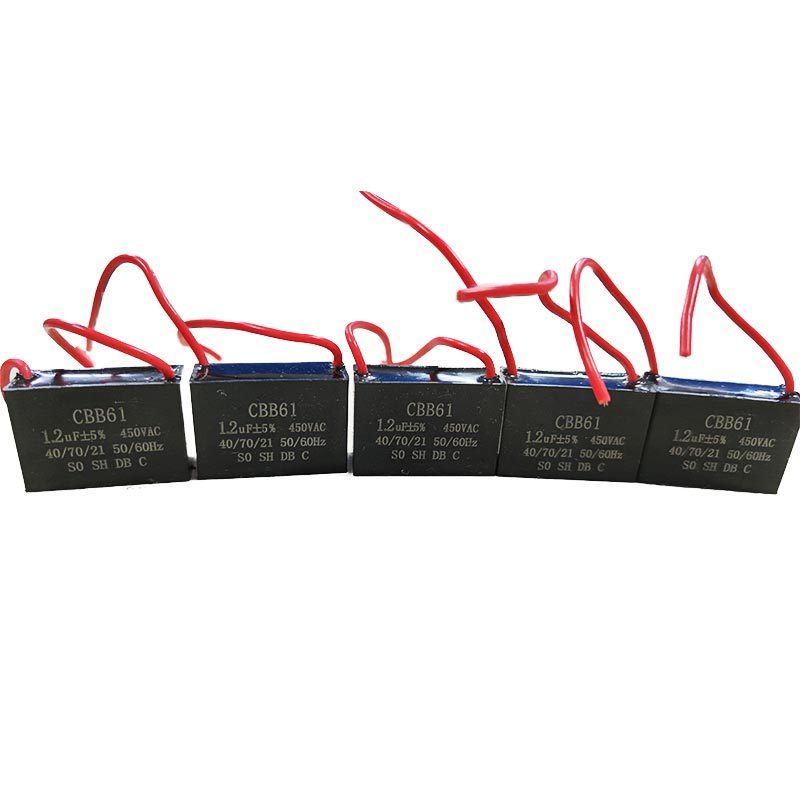

Capacitor Picture:
