Quick Details
-
Brand Name:
-
CUF MILANO
-
Model Number:
-
JALEED
-
Product name:
-
JALEED
-
Material:
-
GLASS AND ALUMINIUM
-
Color:
-
SILVER OR CUSTOM
-
Style:
-
Modern Office Wall Partitions
-
Size:
-
Customized Size
-
Function:
-
Divide Space
-
Certificate:
-
ISO9001
-
Height:
-
245 cm, or full-height
-
Feature:
-
Highly Effective Sound Absorption
Quick Details
-
Application:
-
Home Office, Office Building, Mall, Workshop, Storage & Closet, Exterior, Entry, Hall
-
Design Style:
-
Modern
-
Place of Origin:
-
Italy
-
Brand Name:
-
CUF MILANO
-
Model Number:
-
JALEED
-
Product name:
-
JALEED
-
Material:
-
GLASS AND ALUMINIUM
-
Color:
-
SILVER OR CUSTOM
-
Style:
-
Modern Office Wall Partitions
-
Size:
-
Customized Size
-
Function:
-
Divide Space
-
Certificate:
-
ISO9001
-
Height:
-
245 cm, or full-height
-
Feature:
-
Highly Effective Sound Absorption

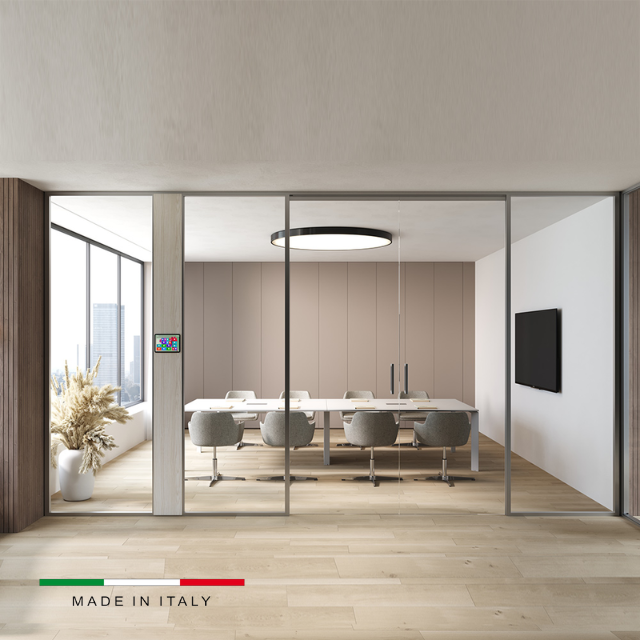

JALEED GLASS WALL
Jaleed means ice in Arabic: a sparkling, fluid, crystalline element that, like the new glass wall, represents the precise point where lightness and solidity meet. Jaleed is the result of years of mechanical research and acoustic experimentation. It can be configured with single, double glass, blind or fitted panel.
The certified sound insulation of the double-glazed wall, made of 66.2A glass, is 49 dB Jaleed is a glazed wall system made of extruded aluminium perimeter profile, oxidised aluminium, or painted RAL 7039 or RAL 7021
Floor profile section 60 x 20 mm Perimeter profile section 60 x 30 mm. plus any compensating profile.
Laminated double-glazing 10 or 12 mm thick in float, acoustic or extra-clear, simple or double lamination.
A transparent, double-sided PVC gasket is inserted between the glass and the glass.
Transparent doors made with perimeter frames coated on both sides with 6 mm tempered glass coplanar to the partition wall. The acoustic certification of the double-glazed door is 42 dB.
The doors are made in the flush version, framed glass, double glass, double blind panel; glazed and sliding doors are concealed in the gap between the panes.
Hinged doors are offered in a standard height of 245 cm, or full-height; sliding doors are also made of glass.
Hinged doors are offered in a standard height of 245 cm, or full-height; sliding doors are also made of glass.
The certified sound insulation of the double-glazed wall, made of 66.2A glass, is 49 dB Jaleed is a glazed wall system made of extruded aluminium perimeter profile, oxidised aluminium, or painted RAL 7039 or RAL 7021
Floor profile section 60 x 20 mm Perimeter profile section 60 x 30 mm. plus any compensating profile.
Laminated double-glazing 10 or 12 mm thick in float, acoustic or extra-clear, simple or double lamination.
A transparent, double-sided PVC gasket is inserted between the glass and the glass.
Transparent doors made with perimeter frames coated on both sides with 6 mm tempered glass coplanar to the partition wall. The acoustic certification of the double-glazed door is 42 dB.
Specification
|
item
|
value
|
|
General Use
|
Commercial Furniture
|
|
Type
|
Office Furniture
|
|
Mail packing
|
N
|
|
Application
|
Home Office, Office Building, Mall, Workshop, Storage & Closet, Exterior, Entry, Hall
|
|
Design Style
|
Modern
|
|
Place of Origin
|
Italy
|
|
Brand Name
|
CUF MILANO
|
|
Model Number
|
JALEED
|
|
Product name
|
JALEED
|
|
Material
|
GLASS AND ALUMINIUM
|
|
Color
|
SILVER OR CUSTOM
|
|
Application
|
Commercial Office Room
|
|
Style
|
Modern Office Wall Partitions
|
|
Size
|
Customized Size
|
|
Function
|
Divide Space
|
|
Certificate
|
ISO9001
|
|
Height
|
245 cm, or full-height
|
|
Feature
|
Highly Effective Sound Absorption
|
Packing & Delivery
Shipped in pallets
