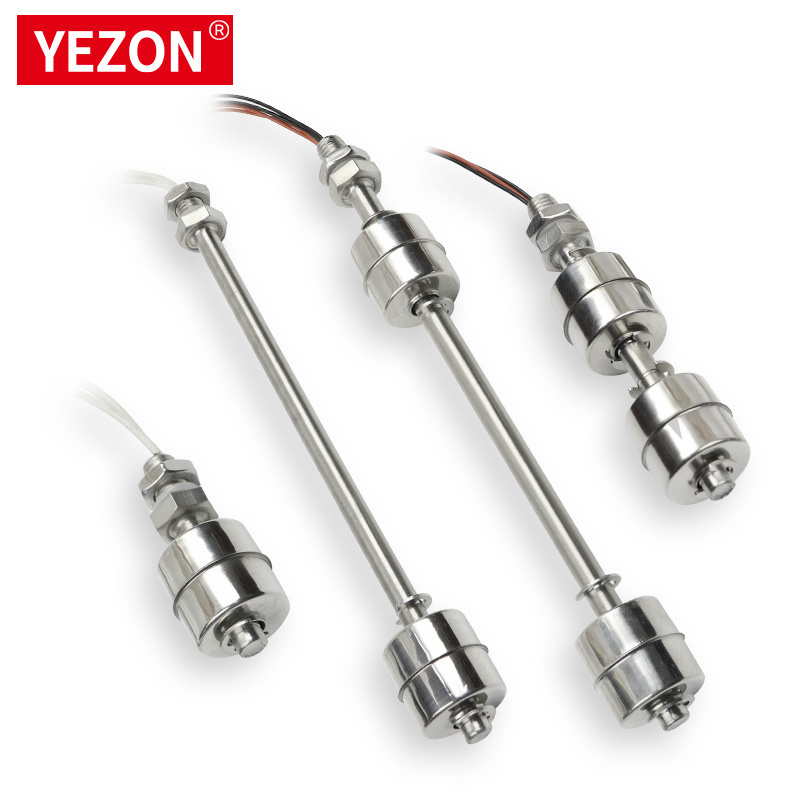

Quick Details
-
Brand Name:
-
YEZON
-
Model Number:
-
FLM001
-
Product name:
-
oil level float switch
-
Temp.rating:
-
-20-100 degrees
-
float material of body:
-
SUS304
-
Connection:
-
M10
-
Insert length:
-
45mm
-
Output:
-
Normally open with 10W&50
-
Installation:
-
Vertical
-
Contact capacity:
-
DC24V/0.5A
-
Application:
-
water or other liquid P+/P-
-
material of screw:
-
SUS 304
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YEZON
-
Model Number:
-
FLM001
-
Product name:
-
oil level float switch
-
Temp.rating:
-
-20-100 degrees
-
float material of body:
-
SUS304
-
Connection:
-
M10
-
Insert length:
-
45mm
-
Output:
-
Normally open with 10W&50
-
Installation:
-
Vertical
-
Contact capacity:
-
DC24V/0.5A
-
Application:
-
water or other liquid P+/P-
-
material of screw:
-
SUS 304
1.The parameters:
| Application | Water level control |
| Max. Power | 10W/50W |
| Power | 24VDC |
| Max. Current | 1A |
| Operating pressure | 10kg/cm |
| Operating Temp. | -10~120 degrees |
| Size | 45 100 200 300 |
| Float Material | 304 stainless steel |
| Installation | Vertical |
2.The description and principle:
The working principle of the float valve is actually very simple. In fact, it is a normal on-off valve. There is a lever on the upper part of the valve. One end of the lever is fixed at a certain position of the valve. Then, at this point and near another point, a control valve is opened and closed. The mechanism, while the end of the lever is fitted with a float (hollow ball).
When the water level of the water tank is low, the float ball decreases with the water level. The piston of the valve body is pulled outward by the connecting rod of the fixed float ball, so that the air between the valve body and the piston is generated, so that the tap water can enter the water tank; when the water level of the water tank reaches the setting At the height position, the force generated by the rise of the float with the water level pushes the piston in the valve body through the connecting rod to the valve body. Since the top end of the piston is fitted with a sealing rubber gasket, the water outlet in the valve body is processed more smoothly and smoothly. When the buoyancy of the float exceeds the tap water pressure, the piston fitted with the sealing rubber gasket and the water outlet of the valve body are tightly sealed, and the tap water is closed by the float valve.
When the float is full of water and buoyancy causes him to rise, the valve will be closed to stop the water supply. When the water level drops, the float will fall, and the valve will open due to the action of the spring, and the water will enter the water until the float receives water. After the buoyancy rises, close the valve to close the water.
About US:
Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers. We ’ re professional in sensor area for over 13 years .
Q:
Where is your company located?
Could I visit your factory?
A:
Our company is located in Foshan Guangdong province.Sincerely invite you
to visit our factory.
Q:Could I get samples?
A:
W
e have materials in stock to help you to get the samples as soon as we can.
Welcome to contact us by e-mail or alibaba for your your required.
Q:How
does your factory do regarding QC
?
A:
Quality is priority.We always consider quality as the most important thing during the whole production process.
We have the certificatio
n of ISO,
CE.W
e could send the certification to you
if needed
.
Q:
Can you offer OEM or Design services?
A:
Yes.Our products are independently designed and manufactured.We can offer OEM service according to your requirement,including products function,logo,packing etc.
Q:
what is your after-sale service?How about the warranty?
A:
We offer guarantee on our product for 12 months and we have a professional after-sales team at your service.
Q:
What about your delivery time?And how do you delivery the goods?
A:
RTS products can be delivery within 2-7 days.Customized products shall be arranged according to the orders.Many delivery service can be choosed,like DHL,FedEx,TNT,Airline and sea shipping.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
How to order?
A. In order to
recommend
you
most suitable
solution and best offer, please provide the following information when send inquiry, thanks !
1. What is the
tested
medium? Water, oil
, gas
or
others.
2. Measure range: 0-200bar or ...?
3. Output signal:4-20mA, 0~5V
RS485
or..?
4.
Medium Temperature
:under normal Temp. or heating
5
. Require quantity?
