Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Dimension(L*W*H):
-
1300*900*50mm
-
Weight (KG):
-
880 KG
-
Product name:
-
co2 cutter 600 x 900 mini wood laser engraving cutting machine
-
Water chiller:
-
CW5200, CW5000, CW3000
-
Motor:
-
Good Leadshine stepper motor
-
Chiller:
-
Industrial water chiller
-
Software support:
-
CorelDraw, PhotoShop, AutoCAD,TAJIMA,Lasercut5.3
-
Control system:
-
Ruida Control System/DRW/Topwisdom
-
Laser tube power:
-
50W/80W/100W/130W/150W
-
Laser tube brand:
-
Beijing Reci EFR Yongli
-
Lens:
-
US II-VI lens
-
Transmission:
-
belt/rack and pinion, PMI guide rails
Quick Details
-
Engraving Area:
-
900*600mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
75000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Dimension(L*W*H):
-
1300*900*50mm
-
Weight (KG):
-
880 KG
-
Product name:
-
co2 cutter 600 x 900 mini wood laser engraving cutting machine
-
Water chiller:
-
CW5200, CW5000, CW3000
-
Motor:
-
Good Leadshine stepper motor
-
Chiller:
-
Industrial water chiller
-
Software support:
-
CorelDraw, PhotoShop, AutoCAD,TAJIMA,Lasercut5.3
-
Control system:
-
Ruida Control System/DRW/Topwisdom
-
Laser tube power:
-
50W/80W/100W/130W/150W
-
Laser tube brand:
-
Beijing Reci EFR Yongli
-
Lens:
-
US II-VI lens
-
Transmission:
-
belt/rack and pinion, PMI guide rails

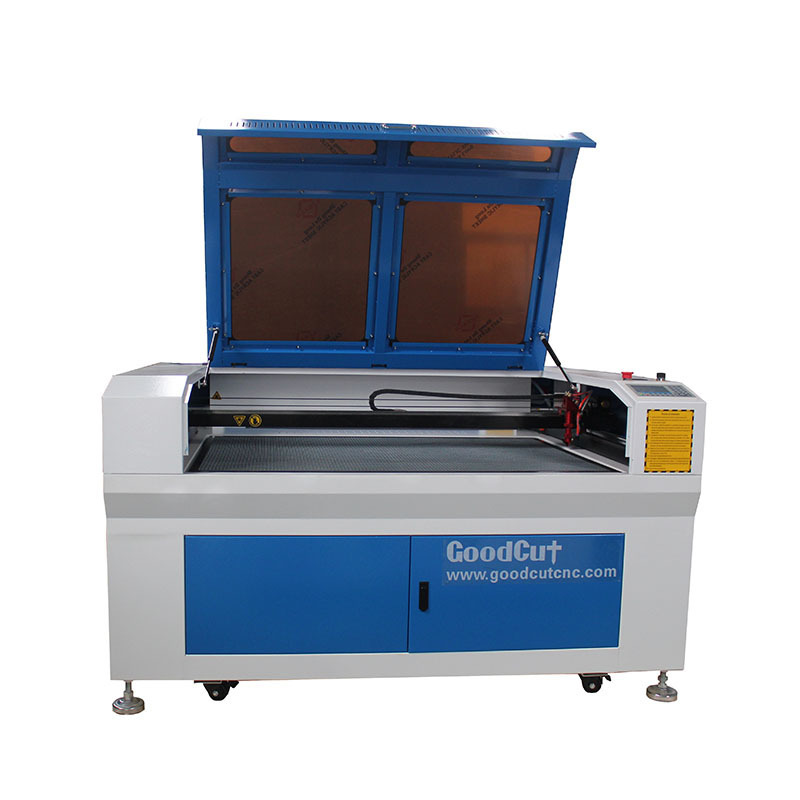

co2 cutter 600 x 900 mini wood laser engraving cutting machine
Advantages:
1.Imported linear guides and high-speed stepping motors and drives to make the cutting effect smooth and ripple-free;
2.The integrated frame structure design makes the machine run stably and without noise;
3.The operation is simple, the engraving sequence can be freely, the processing level can be realized, and the partial or all
one-time output laser power, speed and focal length can be adjusted flexibly;
4.Open software interface, compatible with Autocad, Coredraw, Wentai carving, Photoshop and other vector design software;
5.Equipped with a water shut-off protector to better protect the laser, extend the life of the laser, and optional foot switch to make your operation easier and faster.
6.Exquisite design; super-strength steel plate, industrial grade; effectively guarantee the smooth operation and longevity of
equipment;
7.Double rail operation; belt drive; optional honeycomb/bar/plate/lift;
8.Patented technology: unique upper and lower exhaust smoke and dust removal system; blowing protection;
Parameters :
|
Model |
1390 |
|
Working area |
1300*900mm |
|
Laser Types |
Hermetic And Detached CO2 Laser Tube |
|
Laser power |
80/100/130/150/180/280/300w laser tube |
|
Engraving speed |
0-60,000mm/min |
|
Cutting speed |
0-50,000mm/min |
|
Location precision |
≤0.01mm |
|
Resetting positioning accuracy |
0.01mm |
|
Power supply |
AC 110v-220V; 50/60HZ |
|
Operating temperature |
0 - 45° |
|
Operating humidity |
5-95% |
|
Minimum shaping character |
English 1.0 x 1.0mm Chinese 2.0*2.0mm |
|
Driving system |
Three-phase (YAKO) |
|
Drive motor |
Three-phase stepper (Leadshine) |
|
Cooling mode |
Water-cooling and protection system |
|
Auxiliary Devices |
Exhaust fan and the Exhaust Pipe |
|
Control system and software |
Ruida 6442S system and RDV8.0 with USB cable |
|
Graphic format supported |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG |
|
Accessories(for free) |
1One set lens and mirrors 2.Red dot position 3.Wrench 4.USB cable 5.Air pump 6.Other small tools |
|
Optional parts
|
(1) up and down platform (2) rotary attachment (3) auto focus |
High Quality co2 Laser tube provides the Strong beam and Long service life,perfect wood cutting effect.
YAKO,can be option
The Optical Lens adopt high intensity gilding silicon and non sphere focusing lens, So the Lens can endure the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The focusing diameter of the non sphere lens is small, and make the cutting effect better.
The humanized and modern appearance shows GoodCut’s consistent humanity idea, and it also makes the operation and maintenance quite easy
Samples
Jinan GoodCut CNC Machinery Co., Ltd.
The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service
Good Quality
1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;
2. Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;
3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.
Good Price
1. GoodCut manufactures about 50 sets of machines per month, with a large sales volume.
We have long-term cooperation with parts suppliers, can get advantageous prices of parts,
so that the price of machine is very competitive;
2. GoodCut aims to develop long-term cooperation with new and regular customers,
and to give customers the best prices with the most sincere attitude.
Good Service
1. English manual and video for machine using and maintaining, explaining the operation steps in detail;
2. Professional after-sales service staffs, providing 24-hour online service;
3. Provide free technical training and factory field operation teaching to eliminate customer worries.
