Quick Details
-
Brand Name:
-
GESTER
-
Model Number:
-
GT-C28
-
Product:
-
ASTM E96 Fabric water vapour permeability tester
-
Dimension:
-
740*670*1185mm
-
Color:
-
Black
-
Price:
-
factory price
-
advantage:
-
avaliable ,factory direct sale
-
Power Source:
-
AC220V
-
Load Way:
-
Electronic Load
-
Control:
-
Computer Control
-
Testing method:
-
Upright cup method
-
Certification:
-
ISO
Quick Details
-
Warranty:
-
1 year, 1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GESTER
-
Model Number:
-
GT-C28
-
Product:
-
ASTM E96 Fabric water vapour permeability tester
-
Dimension:
-
740*670*1185mm
-
Color:
-
Black
-
Price:
-
factory price
-
advantage:
-
avaliable ,factory direct sale
-
Power Source:
-
AC220V
-
Load Way:
-
Electronic Load
-
Control:
-
Computer Control
-
Testing method:
-
Upright cup method
-
Certification:
-
ISO
WELCOM TO GESTER
ASTM E96 Textile Fabric Water Vapour Transmission
Permeability Tester
Application
ASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester to test the water vapour transmision of various fabric (moisture permeable fabric included) and non-woven fabric such as bat wool, space cotton, sportswear fabric etc.
Feature
1. Apply to various standards and testing methods.
2. Rotary specimen holder, the speed can be adjusted. The test is much evenly than fixed specimen holder.
3. The wind speed can be adjusted. Adopt import air velocity transducer to demarcate which can ensure the speed.
4. The temperature and humidity control use RID algorithm, which fluctuation is small and can prevent the overshoot. The temperature and humidity calibration function can avoid the sensor bias caused by long time using.
5. High accuracy temperature and humidity sensor makes the test result reliable and precise.
6. Single chip control, color touchscreen operation,modular design, temperature and humidity digital setting, intelligent control and real-time display the temperature, humidity and time.
7. Can input parameter on the touch screen and calculate the WVT, WVP, PV value.
8. The machine equipped with upper computer software, can record the temperature and humidity curve, be easy to calculate and print mass data report.
Standards
GB/T12704, GB/T21655, ASTM E90, ASTM E96 (Procedure A, B, C, D, E), JIS L1099, BS 7209
Key Specification
|
Model |
GT-C28-1 |
GT-C28-2 |
|
Water vapour permeability cups |
1 layer, 8pcs |
2 layers, 8pcs/layer |
|
Test chamber temperature |
RT~50℃ |
|
|
Resolution |
0.1℃ |
|
|
Accuracy of temperature |
±0.5℃ |
|
|
Weighing function |
No |
|
|
Testing method |
Upright cup method |
|
|
Humidity of testing chamber |
40%RH~95%RH |
|
|
Resolution |
0.1%RH |
|
|
Accuracy of humidity |
±1%RH |
|
|
Testing time |
0.1~999.9h (can be changed into “min”) |
|
|
Speed of circulating air |
0.1~0.8m/s |
|
|
Breathable area |
2826mm² (60mm GB12704) or 4534mm² (76mm ASTM E96) Or 5408mm² (83mm BS 7209) or 2826mm² (60mm JIS L1099)
|
|
|
Dimension |
740×670×1185mm |
1050×635×1170mm |
|
Weight |
200kg |
250kg |
|
Power supply |
AC 220V 50/60HZ 4KW |
AC 220V 50/60HZ 4KW |
Accessories
|
Standard accessories
|
1set |
Soak Cup(GB Standard, and can be changed into other standards according to customer’s requirements) |
|
1pc |
Power Line |
|
|
Optional accessories
|
1set |
Soak Cup (ASTM standard) |
|
1set |
Soak Cup (BS standard) |

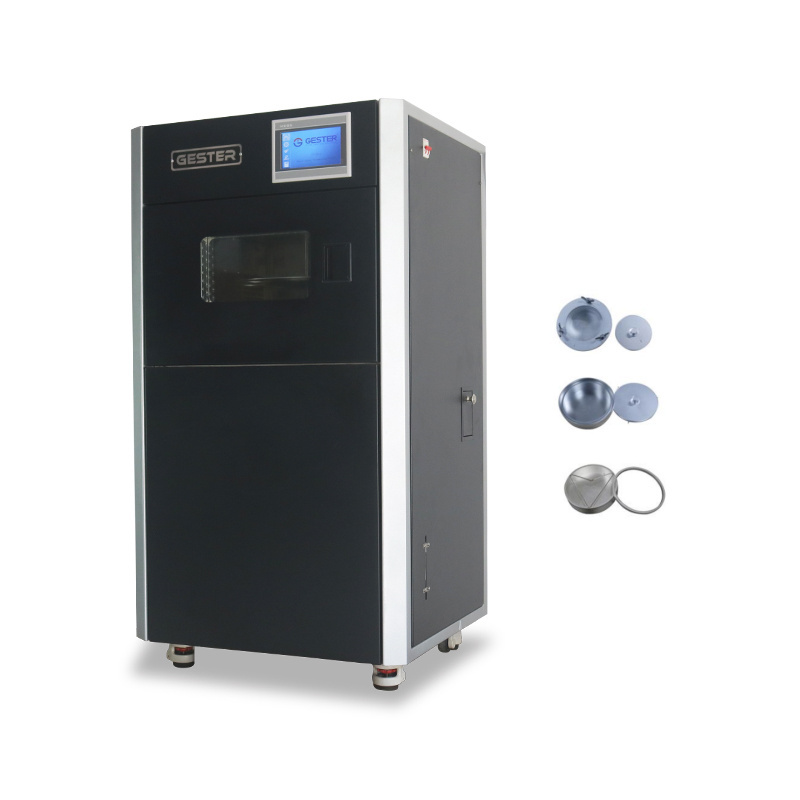

Product Image
- Q Is your company a trading company or factory?
- A Factory + trade (integration), has 20 years focusing on test instruments field, 6 years exporting experience.
- Q After an order is placed, when to deliver?
- A Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
- Q What’s the payment term?
- A T/T,L/C and other payment terms could be negotiated.
- Q What's the warranty and after-sales service?
- A 12 months warranty. Feedback to you within 24h and help you to repair your problem controller freely, even it's not from our factory.
- Q What the standards do you adopt?
- A We have been adopting the world standards and regulation such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA .
- Q What about the product' services and quality?
- A Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. And our Main clients : SGS, BV and Intertek.
