Quick Details
-
Production Capacity:
-
30-60 bags/min
-
Weight (KG):
-
230
-
Voltage:
-
220V, 380V/ 50Hz, 60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mingke
-
Dimension(L*W*H):
-
L800* W700* H1600
-
Bag width:
-
20-110 mm
-
Bag length:
-
40-160 mm
-
Filling range:
-
1-80 ml
-
Sealing type:
-
3/4 sides sealing
-
Net weight:
-
220kg
-
Max film:
-
220mm
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags, Film, Pouch, Sachet
-
Packaging Material:
-
Plastic, Paper
-
Production Capacity:
-
30-60 bags/min
-
Weight (KG):
-
230
-
Voltage:
-
220V, 380V/ 50Hz, 60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mingke
-
Dimension(L*W*H):
-
L800* W700* H1600
-
Bag width:
-
20-110 mm
-
Bag length:
-
40-160 mm
-
Filling range:
-
1-80 ml
-
Sealing type:
-
3/4 sides sealing
-
Net weight:
-
220kg
-
Max film:
-
220mm
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support

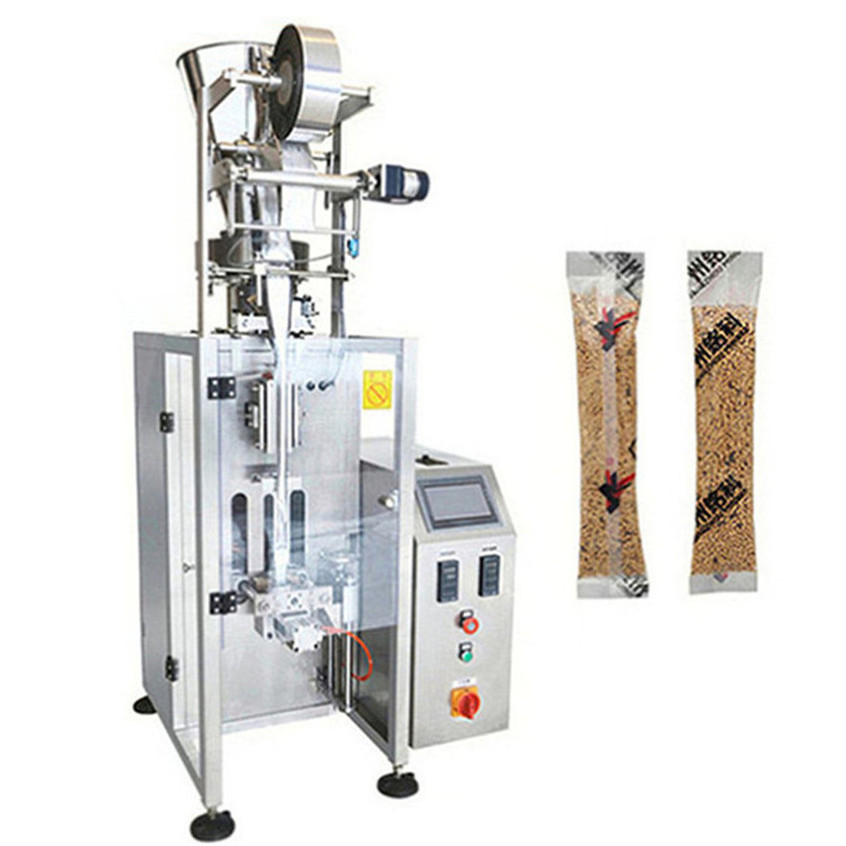

Automatic Paper Sugar Stick Bag Granule Sachet Packaging Packing Machine
Scope of application:
Granule Packing Machine is suitable for pharmacy, food, household chemicals, plastic products and other special industry and other loose type granule material. Such as seeds, Chinese Drugs, feeding stuff, medicinal granules, salt, sugar, soup blend, oat, tea, active carbon, washing powder, dryer, etc.
1) Automatic granule packing machine can finish the process like conveying bag, bag making, filling, weighing, sealing, cutting, counting, lot number, etc.
2) Imported Mitsubishi, Japan PLC control, Chinese and English intelligent screen, stainless steel cabinet. Set up the required data(include filling, weighing, bag size, etc) in the touch screen.
3) Stepper Motor control, this system has the advantage of precise, needless to adjust the other parts.
4) Intelligent temperature control by temperature controller to make heat balance better. use bilingual display screen control system and stainless steel cabinet.
5) Fine packaging performance ,low noise , sealing texture and strong sealing performance.
6) With safe plastic box on rotating blade to avoid hurting operator's hands.
7) It has color system controller, so that can get the complete trade mark design.
8)With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.
Technical parameter:
|
Type |
MK-60KZ |
MK-60KB |
MK-420E |
|
Packaging speed |
30-60bags/min |
30-60bags/min |
30-50 bags/min |
|
Measuring range |
1-80ml |
1-80ml |
150-1500ml |
|
Bag size(mm) |
L:40-160 W:20-110 |
L:40-160 W:30-110 |
L:50-300 W:80-200 |
|
Max film |
220mm |
240mm |
420mm |
|
Sealing type |
3/4 sides sealing |
back sides sealing |
Pillow bag, stand up pouch, pillow with hole pouch, continuous bag |
|
Power |
1200W |
1200W |
2.5KW |
|
Net weight |
220kg |
250kg |
950kg |
|
Voltage |
220V,380V/50Hz,60Hz |
||
|
Packaging film |
Paper/PE,PP/Aluminum foil(all heating material) |
||
|
Overall size(mm) |
L800*W700*H1600 |
L1400*W970*H3000 |
|
Our service:
1. Calling or door to door service
2. Online video service working 24h
3. Operate video service
4. All machine with operate U disk and manul
5. 24 hours teahnical support by mail or phone
6. Machine testing working one day before shipping
7. Machine finished picture and video send by mail
8. Machine packaging piture and spare parts service
9. One year guarantee for all machines.
10. Our engineer team can provide variety of solutions for different client
