Quick Details
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
seppes
-
Model Number:
-
200
-
Product name:
-
high speed door for cold room
-
Max size:
-
width 6000mm,height 8000mm
-
opening times of every day:
-
500-800times
-
Color:
-
orange,blue,grey,yellow and customized
-
Opening Speed:
-
Max 2.0m/s (adjustable )
-
Operation Methods:
-
Buttons, Sensors, Remote Control
-
Power Supply:
-
1-phase 220V, or 3-phase 380V
-
Power:
-
0.75-1.5KW
-
Wind Resistance level:
-
6-7(distance within 9m^2 )
-
Use the venue:
-
Vegetable Processing Factory Frozen Food Factory
Quick Details
-
Door Material:
-
Composite
-
Main Material:
-
PVC+stainless steel
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
seppes
-
Model Number:
-
200
-
Product name:
-
high speed door for cold room
-
Max size:
-
width 6000mm,height 8000mm
-
opening times of every day:
-
500-800times
-
Color:
-
orange,blue,grey,yellow and customized
-
Opening Speed:
-
Max 2.0m/s (adjustable )
-
Operation Methods:
-
Buttons, Sensors, Remote Control
-
Power Supply:
-
1-phase 220V, or 3-phase 380V
-
Power:
-
0.75-1.5KW
-
Wind Resistance level:
-
6-7(distance within 9m^2 )
-
Use the venue:
-
Vegetable Processing Factory Frozen Food Factory

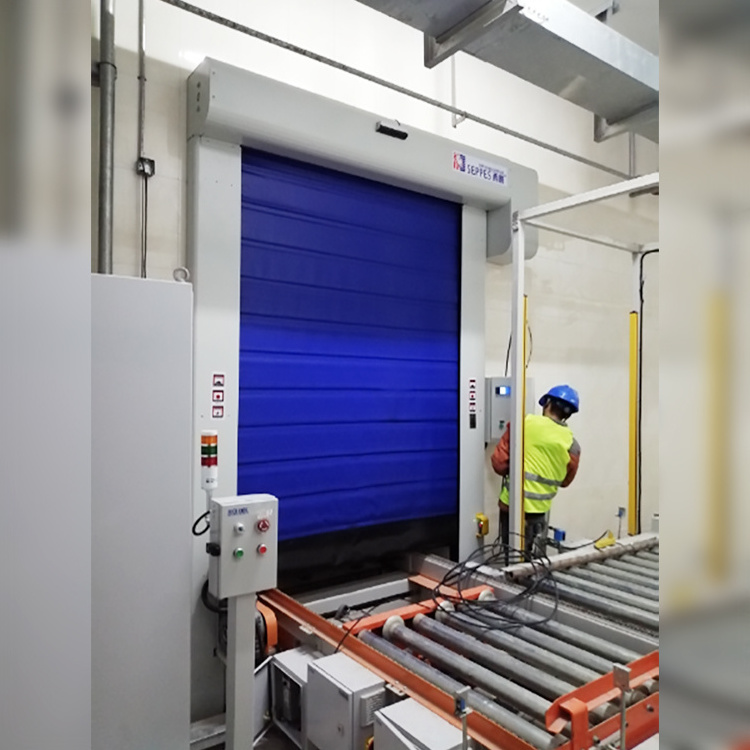

Frozen low temperature high speed door
What's the effect?
This is a high-speed rolling curtain
pvc fast door
that can be used at
minus 40 degrees
. The main function is to install in the low-temperature workshop, heat insulation, anti-freezing, and can be used quickly and frequently.
Technical characteristics
Zipper self-repairing, quick opening,
efficient sealing
, silent, 100% safe (there is aluminum film in the door body for heat insulation), the door body is designed and the door frame is integrated (easy to assemble), reducing maintenance, energy saving, double curtains (
forming an insulated air wall
), high thermal insulation coefficient.
Product Description
Application field
R
efrigeration industry |
C
old chain logistics |
F
rozen food industry |
F
ruit warehouse |
L
ow temperature medicine warehouse.
Charactor
|
Thickness of door curtian
|
0.9mm+3.0mm thick foam door curtain
|
|
Material of door curtain
|
PVC(Polyvinyl chloride)
|
|
Door frame
|
optional 304 stainless steel,aluminum alloy,steel of coated paint
|
|
Size of door
|
Maximum width 6m,Maximum height 8m
|
|
Voltage
|
220v or 380v
|
|
Power supply
|
0.75KW or 1.5KW
|
|
Frequency
|
50HZ or 60HZ
|
|
Speed of door
|
0.8-1.2m/s,up to 2.0m/s
|
|
Use life
|
about more than 15 million times
|
The component of product
Options of Door Opening ways
our door's opening way has the push button,motion sensor,induction loop,remote control,
pull switch
,infrared light curtain and so on.
Product Advantages
|
1.high speed working due to not add the flyweight assembly
|
|
2.Frequent used about opening hundreds of times,the adjustable opening speed is more than 1.5m/s.
|
|
3.The drive unit is with IP65 protection level and combined with rail heating technology,the door’s cold-resistant is up to
-40degrees Celsius. |
|
4.comprehensive safety protection,the soft edge is equipped with the safety anti-pinch device,built-in orbital use the whole root
safety light curtain. |
Four advantage
C
ontrol System
Easy to use and interlocking, adjustment speed ,
self-diagnosis function,
S
elf-healing function
After the door is hit, it will automatically return to the track without manual intervention or interruption of production.
M
ultiple security
Standard configuration of infrared eye and anti-winding bottom edge protection.
U
ltra-low temperature work
Benefit from the heated door frame structure and the slowly released heated air wall principle.
Project Cooperation
Packing&Shipping
Company & Customer
Established in 2011,Seppes Door Industry(suzhou)Co.,ltd is a manufacturing and trade enterprise,which is located in Suzhou,Jiangsu
Province in mainland China.We specialize in manufacturing complete and customized solution of entrance door system for industrial
clients,which let factory in a dust-free,noise-free,energy-saving,thermal insulation environment or meet customers other
requirement.our main products are high speed door,rapid roller door,automatic roller shutter door,sectional door and so on. those
are involved in food and drug industry,automobile,electronic industry,chemical industry,printing,textile,logistics and other
industries.
Certifications
FAQ
1. What's the delivery time?
For common order, 10-20 days only
2. How long warranty for the doors?
We provide 13 month warranty for all doors and accessories.
3. Do you provide OEM Service?
Yes. We do provide OEM Service
4. How about the package?
Wooden case
5. Can you provide the Technical support?
YES, professional engineer drawing and Installation instructions and more
For common order, 10-20 days only
2. How long warranty for the doors?
We provide 13 month warranty for all doors and accessories.
3. Do you provide OEM Service?
Yes. We do provide OEM Service
4. How about the package?
Wooden case
5. Can you provide the Technical support?
YES, professional engineer drawing and Installation instructions and more
