Port Size:
3/8" (9.5mm)Hose
barb
Liquid:
140°F [60 °C] Max
Self-priming:
4feet [about 1.2M]
Max pressure：
80psi
Run Dry:
Yes (within 30 second)
Motor:
Permanent Magnet, Intermittent
Duty Protection:
Automatic Restart
Volts:
12/24 VDC motors standard
Approved Certificate:
CE and RoHS
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
Singflo
-
Model Number:
-

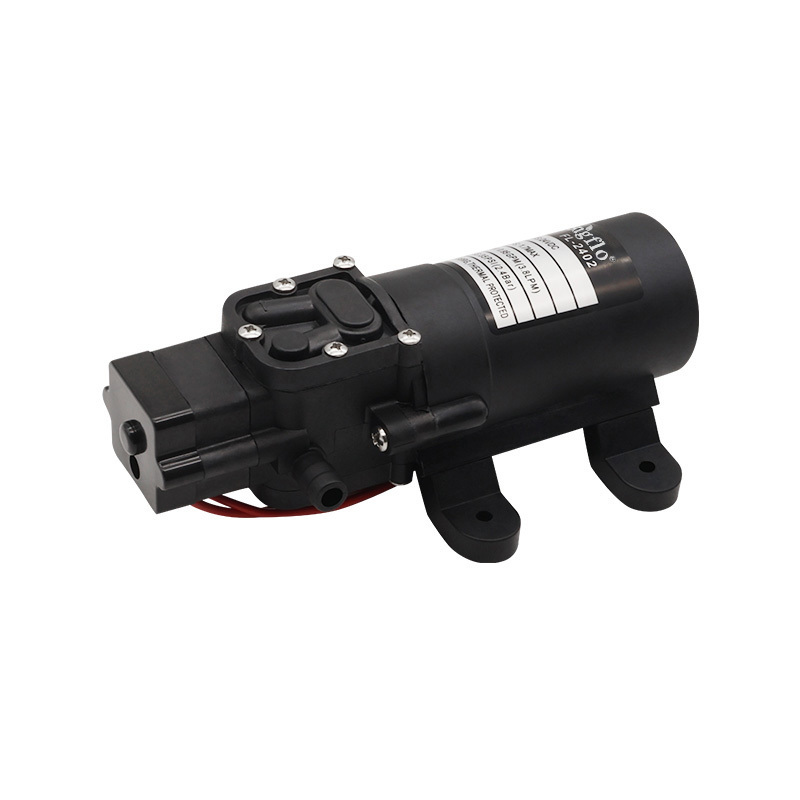

FLO-2402
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
9.5mm
-
diaphragm made of thermoplastic:
-
santoprene
-
Check valve made:
-
V iton or EPDM
-
housing:
-
stainless iron
-
port size:
-
9.5mm/12.5mm
-
liquid temperate:
-
60
-
motor voltage:
-
24v dc
-
Pump Design:
-
2 Chamber Diaphragm
-
pressure:
-
35psi
-
Fuel:
-
electric
Quick Details
-
Application:
-
Food and Beverage Industry, Irrigation and Agriculture, Marine, Washing and Cleaning, Water Treatment Solutions
-
Pressure:
-
35psi
-
Voltage:
-
24v
-
Warranty:
-
1year
-
Brand Name:
-
Singflo
-
Model Number:
-
FLO-2402
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
9.5mm
-
diaphragm made of thermoplastic:
-
santoprene
-
Check valve made:
-
V iton or EPDM
-
housing:
-
stainless iron
-
port size:
-
9.5mm/12.5mm
-
liquid temperate:
-
60
-
motor voltage:
-
24v dc
-
Pump Design:
-
2 Chamber Diaphragm
-
pressure:
-
35psi
-
Fuel:
-
electric
Application:
It can be used for low flow rate while high pressure requirements in situation as:
1. For marine, RV, Agricultural and recreational Application
2. Suits all size boats, caravans, Mobile homes etc.
3. For sinks, taps, showers or toilets.
4.
Water purification, filter machine , chemical metering and fluid supply.
5.
Food, Beverage filling and transfer.
6. Other applications where you have to transfer water.
Products Description
Feature:
Type:
2 Chamber Diaphragm
|
Model
|
Volt
|
Open Flow
|
Pressure
|
Amps
|
Wire Connections
|
|
|
|
(lpm /Gpm)
|
(PSI/bar)
|
|
|
|
FLO-2201
|
12
|
2(0.52)
|
55(3.79)
|
1.8
|
2-pin/Leads
|
|
FLO-2202
|
12
|
3.8(1.0)
|
35(2.41)
|
3
|
2-pin/Leads
|
|
FLO-2202-1
|
12
|
4.3(1.13)
|
35(2.41)
|
3.5
|
2-pin/Leads
|
|
FLO-2203
|
12
|
2.6(0.68)
|
70(4.83)
|
2.1
|
2-pin/Leads
|
|
FLO-2203-1
|
12
|
3.1(0.82)
|
70(4.83)
|
2.2
|
2-pin/Leads
|
|
FLO-2202A
|
12
|
4(1.05)
|
80(5.52)
|
2.6
|
2-pin/Leads
|
|
FLO-2401
|
24
|
2(0.52)
|
55(3.79)
|
0.9
|
2-pin/Leads
|
|
FLO-2402
|
24
|
3.8(1.0)
|
35(2.41)
|
1.5
|
2-pin/Leads
|
|
FLO-2403
|
24
|
2.6(0.68)
|
70(4.83)
|
1
|
2-pin/Leads
|
|
FLO-2402A
|
24
|
4(1.05)
|
80(5.52)
|
1.3
|
2-pin/Leads
|
