Quick Details
-
Diameter dead bolt:
-
15mm,14.5mm
-
Shear strength:
-
2000Lbs/800kg
-
Door Status Sensor:
-
Dry contact NO,NC,COM
-
Relock Delay Timer:
-
0,3,6 seconds open time delay is adjustable
-
Rated Operating Voltage:
-
DC 12V or 24V (Customization Available)
-
Start Current:
-
960mA
-
Optional Functions:
-
LED,Buzzer
-
Face place material:
-
High Aluminum
-
Suitable for:
-
Wooden & Aluminum & Glass & Fireproof &Metal door
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nordson
-
Version:
-
Fail unlocked(the bolt is unlocked when the current is off)
-
Diameter dead bolt:
-
15mm,14.5mm
-
Shear strength:
-
2000Lbs/800kg
-
Door Status Sensor:
-
Dry contact NO,NC,COM
-
Relock Delay Timer:
-
0,3,6 seconds open time delay is adjustable
-
Rated Operating Voltage:
-
DC 12V or 24V (Customization Available)
-
Start Current:
-
960mA
-
Optional Functions:
-
LED,Buzzer
-
Face place material:
-
High Aluminum
-
Suitable for:
-
Wooden & Aluminum & Glass & Fireproof &Metal door
-
Certification:
-
ce

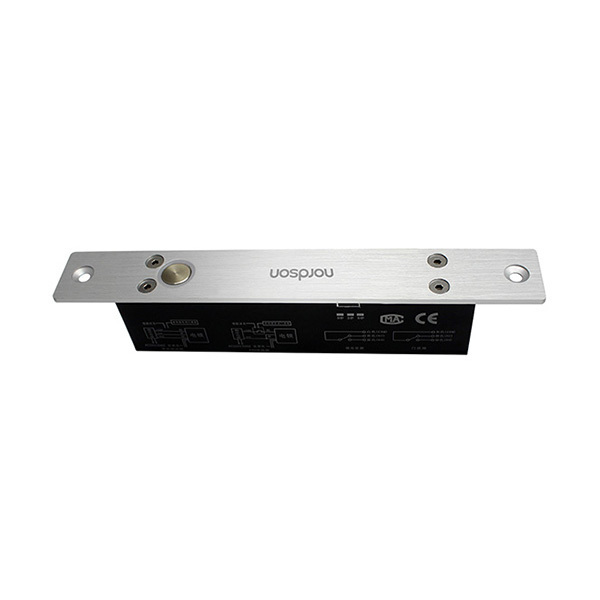

Power to lock Sturdiness DC12V Electric Bolt Door Lock
1. Professional electric bolt lock, Full solid stainlesssteel lock and lock body, durable
2. Equipped with an emergency mechanical lock, emergency key to open the door by hand or twist
3. Ultra-low temperature design, less heat is safe andreliable
A.Momentary current conversion
B. electric bolt will start scouting low power consumption and low temperature conversion while Door position is not corrector withstands bolt
C. Photoelectric technology, reduce mechanical failure
4. Optical control techniques to prevent mechanical failure
5. Ultra-low-power design, energy saving
6. 500,000 times successful test
7. Built-in reverse current preventing equipment.
8. Intelligent single-chip configuration, level three current applications
9. Product specification is complete for all types of door installation
10. time delay setting: 0/3/6/9 sec.
11. Protective performance with intelligent single-chip configuration
12. Prevents external damage,MOV Provides Reverse Current Protection
13. overload dual current
14. Built-in optical coupling open output push button contact
15. Auto-relock if no Action within 5 secs.
16. CE, ROHS & MA certificates
| Version |
Fail unlocked(
the bolt is unlocked when the current is off
)
|
| Diameter dead bolt | ø15mm,14.5mm |
| Shear strength | 2000Lbs/800kg |
| Door Status Sensors | Dry contact NO,NC,COM |
| Relock Delay Timer | 0,3,6 seconds open time delay is adjustable |
| Rated Operating Voltage | DC 12V or 24V (Customization Available) |
| Start Current | 960mA |
| Standby Current | 140mA |
| Optional Functions | LED,Buzzer |
| Face place material | High Aluminum |
| Surface Temp | Low Temperature |
| Ambient temperature in °C | -10°C - +55°C |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal door |
| Face Plate Dimensions(L x W x D) | 200L*28W*39H(mm) |
| Strike Plate Dimensions(L x W x D) | 130Lx30Wx2H(mm) |
| Weight in kg | 0.9kg |
| CE-mark for building | YES |
| Rohs-mark for building | YES |
