Quick Details
-
Ejector Force(kN):
-
5 kN
-
Theoretical Shot Volume(cm³):
-
30 cm³
-
Injection Rate (g/s):
-
5 g/s
-
Injection Weight (g):
-
30 g
-
Screw diameter (mm):
-
30 mm
-
Weight (KG):
-
40 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
120 mm
-
Model Number:
-
WZ20000
-
Brand Name:
-
Kunlun
-
Power (kW):
-
0.5 kW
-
Function:
-
for making plastics parts
-
Suitable material:
-
PP, ABS, PE, PC, etc.
-
Max. mold size:
-
120*120*80mm
-
Heating power:
-
500W
-
Mold:
-
allumium mold silicone mold or stainless steel mold
-
Clamping Force (kN):
-
10 kN
-
BRAND:
-
Kunlun
-
Injection pressure:
-
500kg
-
Application:
-
for making small plastics
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Plasticizing Capacity(g/s):
-
5g/s
-
Mold Height(mm):
-
50 - 120 mm
-
Ejector Stroke(mm):
-
135 mm
-
Ejector Force(kN):
-
5 kN
-
Theoretical Shot Volume(cm³):
-
30 cm³
-
Injection Rate (g/s):
-
5 g/s
-
Injection Weight (g):
-
30 g
-
Screw diameter (mm):
-
30 mm
-
Weight (KG):
-
40 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
120 mm
-
Model Number:
-
WZ20000
-
Brand Name:
-
Kunlun
-
Power (kW):
-
0.5 kW
-
Function:
-
for making plastics parts
-
Suitable material:
-
PP, ABS, PE, PC, etc.
-
Max. mold size:
-
120*120*80mm
-
Heating power:
-
500W
-
Mold:
-
allumium mold silicone mold or stainless steel mold
-
Clamping Force (kN):
-
10 kN
-
BRAND:
-
Kunlun
-
Injection pressure:
-
500kg
-
Application:
-
for making small plastics
-
Marketing Type:
-
Ordinary Product

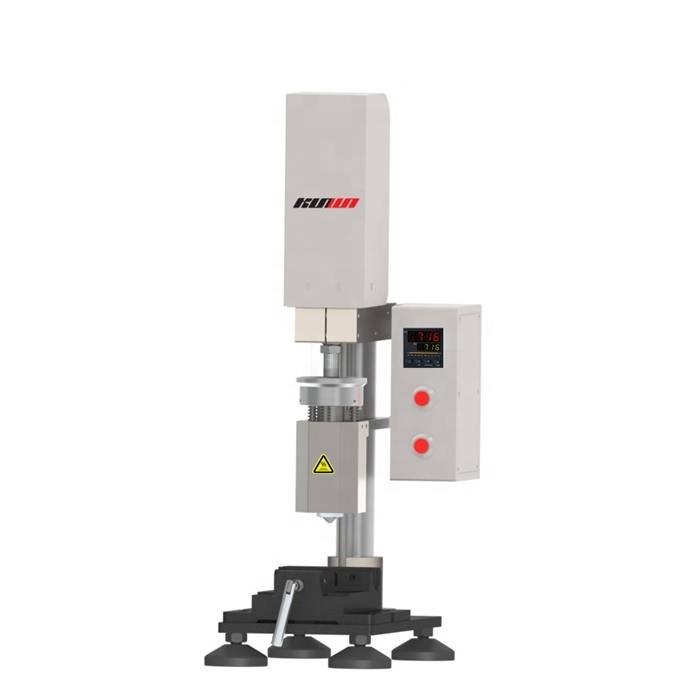

2020 Advanced technology small products mini desktop plastic injection molding machine
WZ30000 is the improved type of WZ20000. It replaces the hand operated procedure with air compressor driving. It’s more convenient to users and also more precise to the products. Please check attached details.
|
Maxi. temperature |
490 ℃ |
|
Plunger diameter |
30mm |
|
Maximum compressing stoke |
135mm |
|
Heating cavity size |
30*70mm |
|
Maximum shot volume |
30cm3(30g) |
|
Mold max. size |
120*120*80mm |
|
Machine weight |
50kg |
|
Power supply |
400w |
|
Voltage |
220V/230V, 50/60HZ |
2020 Best Selling Small Vertical Bench Top Injection Molding Machine is pakced in export wooden case.
And Usually it will be shipped by TNT, DHL, Fedex express. Shipping time: about 7days
Also we can choose special logistics, sea transport. Shipping time: about 10~30 days.
