Quick Details
-
Brand Name:
-
okystar
-
Voltage - Supply:
-
24VDC
-
Current - Supply:
-
40 mA
-
Operating Temperature:
-
14° to 122°F
-
Mounting Type:
-
Celling mount
-
Current - Supply (Max):
-
40 mA
-
Package / Case:
-
High-impact ABS
-
Frequency:
-
50/60hz
-
Current:
-
40 mA
-
Voltage Rating:
-
24VDC
-
Humidity Range:
-
0% to 90%
-
Sensing Range:
-
3M
-
Current - Output (Max):
-
40MA
-
Bandwidth:
-
56MM
-
Product Name:
-
40KHZ 2.3m-4.0m Remote Lighting Control System
-
Customization:
-
Yes
-
brand:
-
okystar
-
Mounting Height:
-
2.3m-4.0m
-
Operating Power:
-
12VDC or 24VDC
-
Ultrasonic Frequency:
-
40kHz
-
Approvals:
-
CE
-
RF Immunity:
-
20V/m,10-1000MHz; 10V/m,1000-2000MHz
-
Adjustable sunset sensor::
-
100lux-3000lux
-
Dimensions:
-
D110mm x 55mm
-
Theory:
-
Resistance Sensor
-
Output:
-
Switching Transducer
-
Interface:
-
2-Wire
-
Function:
-
Latch
-
Application:
-
Industrial Automation
-
Output Function:
-
Not Applicable
Quick Details
-
Use:
-
Sensor
-
Model Number:
-
IQ-SM01
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
okystar
-
Voltage - Supply:
-
24VDC
-
Current - Supply:
-
40 mA
-
Operating Temperature:
-
14° to 122°F
-
Mounting Type:
-
Celling mount
-
Current - Supply (Max):
-
40 mA
-
Package / Case:
-
High-impact ABS
-
Frequency:
-
50/60hz
-
Current:
-
40 mA
-
Voltage Rating:
-
24VDC
-
Humidity Range:
-
0% to 90%
-
Sensing Range:
-
3M
-
Current - Output (Max):
-
40MA
-
Bandwidth:
-
56MM
-
Product Name:
-
40KHZ 2.3m-4.0m Remote Lighting Control System
-
Customization:
-
Yes
-
brand:
-
okystar
-
Mounting Height:
-
2.3m-4.0m
-
Operating Power:
-
12VDC or 24VDC
-
Ultrasonic Frequency:
-
40kHz
-
Approvals:
-
CE
-
RF Immunity:
-
20V/m,10-1000MHz; 10V/m,1000-2000MHz
-
Adjustable sunset sensor::
-
100lux-3000lux
-
Dimensions:
-
D110mm x 55mm
-
Theory:
-
Resistance Sensor
-
Output:
-
Switching Transducer
-
Interface:
-
2-Wire
-
Function:
-
Latch
-
Application:
-
Industrial Automation
-
Output Function:
-
Not Applicable
Automatic Dimming System Introduction
okystar won the title of Alibaba's major customer
Products Description

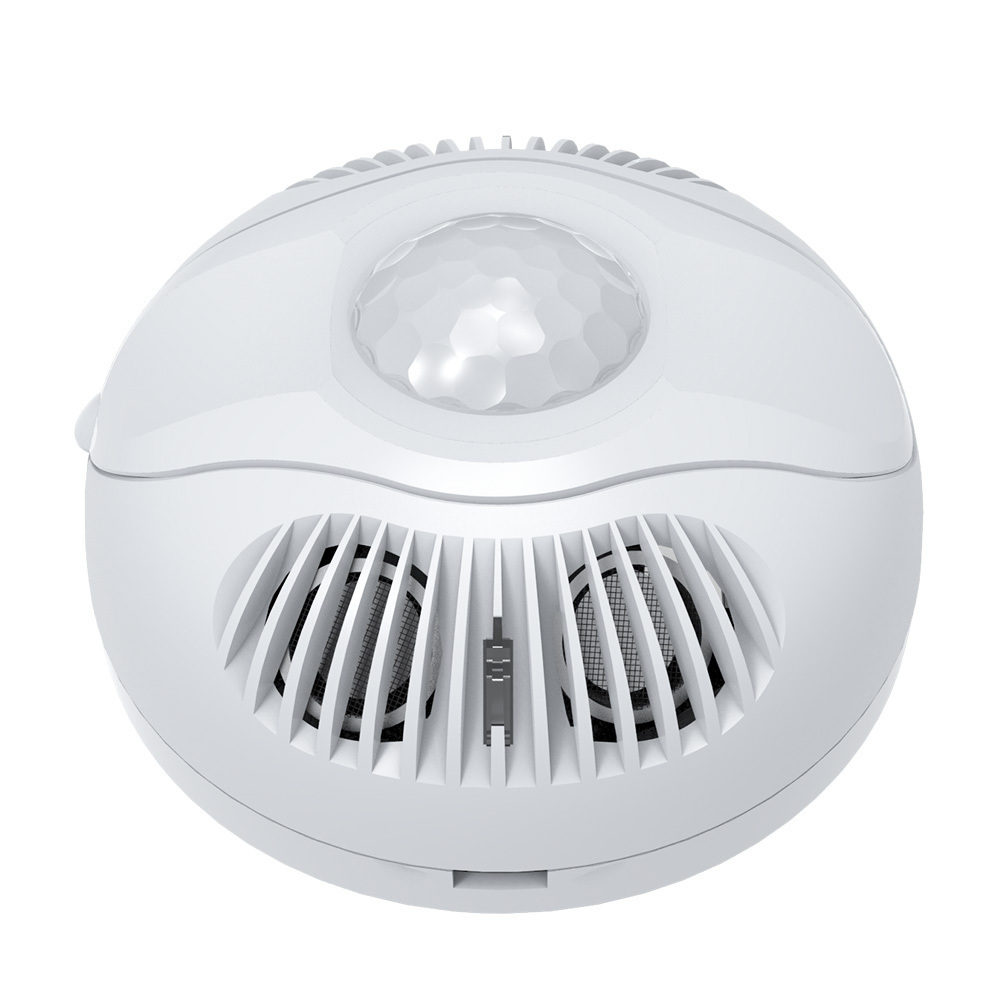

IQ-SM01 is a Dual-technology Motion Sensor. Mounted at a height of 2.4 m,this sensor provides full circular
8m diameter detection for minor motion, e.g.hand movement of people in that area. IQ-SM01 can be surface
mounted or flush mounted for an attractive, un-obstructive appearance.
Product Features
·
Passive Infrared Detection
· Ultrasonic Detection
· Wall or ceiling mount occupancy sensor
· Dual-technology motion detection
· Surface mounted or flush mounted
Product Specifications
|
RF-Immunity
|
20 V/m 10-1000 Mhz 10 V/m 1- 2 GHz
|
|
PIR
|
(1) Red LED, indicates infrared motion
|
|
Ultrasonic
|
(1) Green LED, indicates ultrasonic motion
|
|
Sensor Technology
|
Dual-Technology Passive Infrared and Ultrasonic 40 kHz
|
|
Power Usage
|
1 Watt
|
|
Horizon Detection Degree:
|
120 °
|
