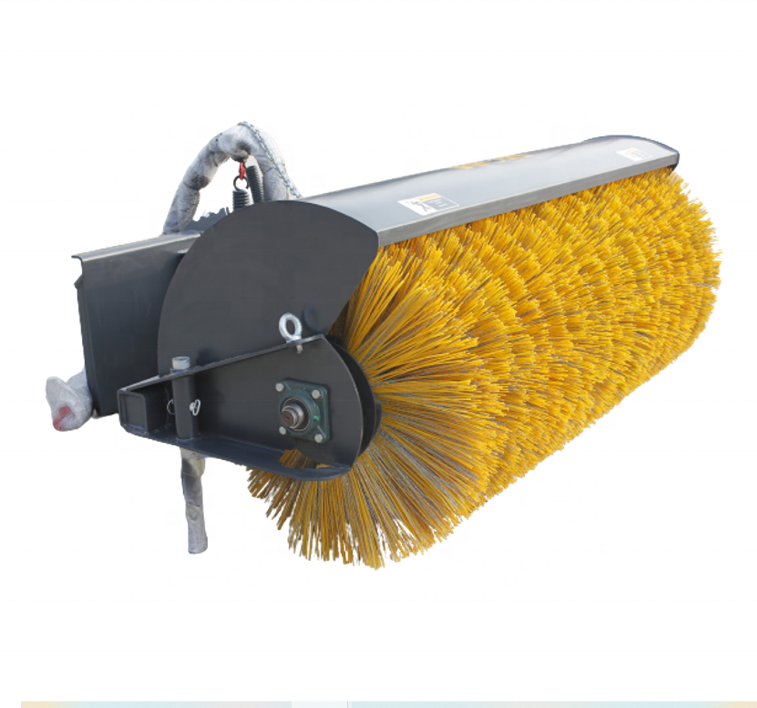

The HCN 72’’ skid steer rotary angle broom is hydraulically driven for cleaning debris, sands and snow on roads, parking lots and
other flat areas. The broom can angle left and right, comes with poly/wire mix bristles, an adjustable stand to prevent bristles
from damage when unused, and a durable direct-drive hydraulic Eaton motor. Spare wafers are available for purchase separately.
This product is backed with a one-year manufacturer warranty,
- Product Details
- {{item.text}}
Quick Details
-
Fuel:
-
hydraulic
-
Dimension(L*W*H):
-
1625*1804*870
-
Weight (KG):
-
500 kg
-
Certification::
-
CE ISO
-
After-sales Service:
-
Overseas third-party support available
Quick Details
-
Warranty of core components:
-
12 Months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HCN
-
Fuel:
-
hydraulic
-
Dimension(L*W*H):
-
1625*1804*870
-
Weight (KG):
-
500 kg
-
Certification::
-
CE ISO
-
After-sales Service:
-
Overseas third-party support available
Product Description
Since 2008, HCN Machinery Manufacturing has been the one-stop resource for quality, durable, powerful attachments such as Angle Broom. From Skid Steer Angle Broom to severe-duty Wheel Loader Angle Broom, HCN is the trusted name for heavy equipment tools that hard-working people get the job done.
The HCN Angle Broom is designed for heavy-duty sweeping of dirt, snow, and other unwanted material. It quickly mounts to your skid steer or loader and even truck or forklift. Featuring a 60", 72" or 84" width, optional hydraulic angle change. The angle broom can continuously sweep debris ahead of the machine or angle the broom to windrow material to the side.
The HCN Angle Broom is designed for heavy-duty sweeping of dirt, snow, and other unwanted material. It quickly mounts to your skid steer or loader and even truck or forklift. Featuring a 60", 72" or 84" width, optional hydraulic angle change. The angle broom can continuously sweep debris ahead of the machine or angle the broom to windrow material to the side.
|
Application field
|
Benefits
|
|
Construction applications
|
Increasing production and decreasing labor costs
|
|
Landscaping applications
|
Eliminating the time-consuming task
|
|
Factory sanitary applications
|
Safe installation and relocation
|
|
Road Maintenance
|
Efficient and reliable
|
|
Utility Maintenance
|
Expanding Usable Property
|
|
Construction
|
One Step Process
|
|
Municipalities
|
Less Expensive
|
|
Seaport/Airport Maintenance
|
Environmentally Friendly
|
|
Model
|
020160 I
|
020172 I
|
020184 I
|
|
Overall Length (mm)
|
1625
|
1625
|
1625
|
|
Overall Width (mm)
|
1804
|
2163
|
2435
|
|
Overall Height (mm)
|
870
|
870
|
870
|
|
Overall Weight (mm)
|
500
|
545
|
575
|
|
Working Width （kg）
|
1500
|
1800
|
2100
|
|
Turning Angle (°)
|
±30°
|
±30°
|
±30°
|
|
Working Width at 30°(mm)
|
1250
|
1550
|
1850
|
|
Brush Diameter (Φmm)
|
Φ800
|
Φ800
|
Φ800
|
|
Working Pressure (Mpa)
|
21
|
21
|
21
|
|
Working Flow （L/Min）
|
70-85
|
80-100
|
80-100
|
|
Working Voltage （V）
|
DC12/24
|
DC12/24
|
DC12/24
|
|
Package Volume (m3)
|
4.096
|
4.830
|
5.385
|
|
Brush Quantity (piece)
|
30
|
37
|
41
|
Detailed Images
Material Description
Features:
Durable direct-drive hydraulic Eaton motor works more efficiently and reduces downtime
* Floating linkage design keeps the broom adapt to the road surface properly and consistently, reducing the bristles wearing
* Poly/wire mix bristles
* Adjustable protection metal stand
* Hydraulic hoses included
* The case drain line (the third hose) provides the option to release motor case pressure and alternatively extend motor
lifetime.
* Bi-directional rotation bristles
* A motor protection guard frame installed
* Onecylinder hydraulic ,two cylinder hydraulic and manual angle rotating design optional
* Floating linkage design keeps the broom adapt to the road surface properly and consistently, reducing the bristles wearing
* Poly/wire mix bristles
* Adjustable protection metal stand
* Hydraulic hoses included
* The case drain line (the third hose) provides the option to release motor case pressure and alternatively extend motor
lifetime.
* Bi-directional rotation bristles
* A motor protection guard frame installed
* Onecylinder hydraulic ,two cylinder hydraulic and manual angle rotating design optional
Specifications:
* Working width: 60”,72”,84”
* Number of wafers: 41
* Brush diameter: 5"
* Core diameter: 04”
* Sweeping width at 30° angle: 63”
* Maximum angle (left and right): +/- 30°
* Hydraulic flow: Min. 10 GPM to Max 25 GPM
* Compatible to use high-flow
* Number of wafers: 41
* Brush diameter: 5"
* Core diameter: 04”
* Sweeping width at 30° angle: 63”
* Maximum angle (left and right): +/- 30°
* Hydraulic flow: Min. 10 GPM to Max 25 GPM
* Compatible to use high-flow
