Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
3410mm*1510mm*2320mm
-
Machine Weight:
-
2300 kg
-
Keyword:
-
DY1150 Telescopic Loader
-
Operating weight:
-
2300kg
-
Color:
-
Grey and red
-
Min. turning radius:
-
1535mm
-
Rated Speed:
-
16.5km/h
-
Transmission Type:
-
4- Wheel Mechanical Transmission
-
Working Oil Flow:
-
82L/min
-
Optional Engine:
-
EPA Tier 4 / Euro 5
-
Pressure:
-
200bar
-
Attachments:
-
Quick Hitch
Quick Details
-
Engine Brand:
-
YANMAR
-
Power:
-
35.5KW
-
Brand Name:
-
TAIAN
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
3410mm*1510mm*2320mm
-
Machine Weight:
-
2300 kg
-
Keyword:
-
DY1150 Telescopic Loader
-
Operating weight:
-
2300kg
-
Color:
-
Grey and red
-
Min. turning radius:
-
1535mm
-
Rated Speed:
-
16.5km/h
-
Transmission Type:
-
4- Wheel Mechanical Transmission
-
Working Oil Flow:
-
82L/min
-
Optional Engine:
-
EPA Tier 4 / Euro 5
-
Pressure:
-
200bar
-
Attachments:
-
Quick Hitch

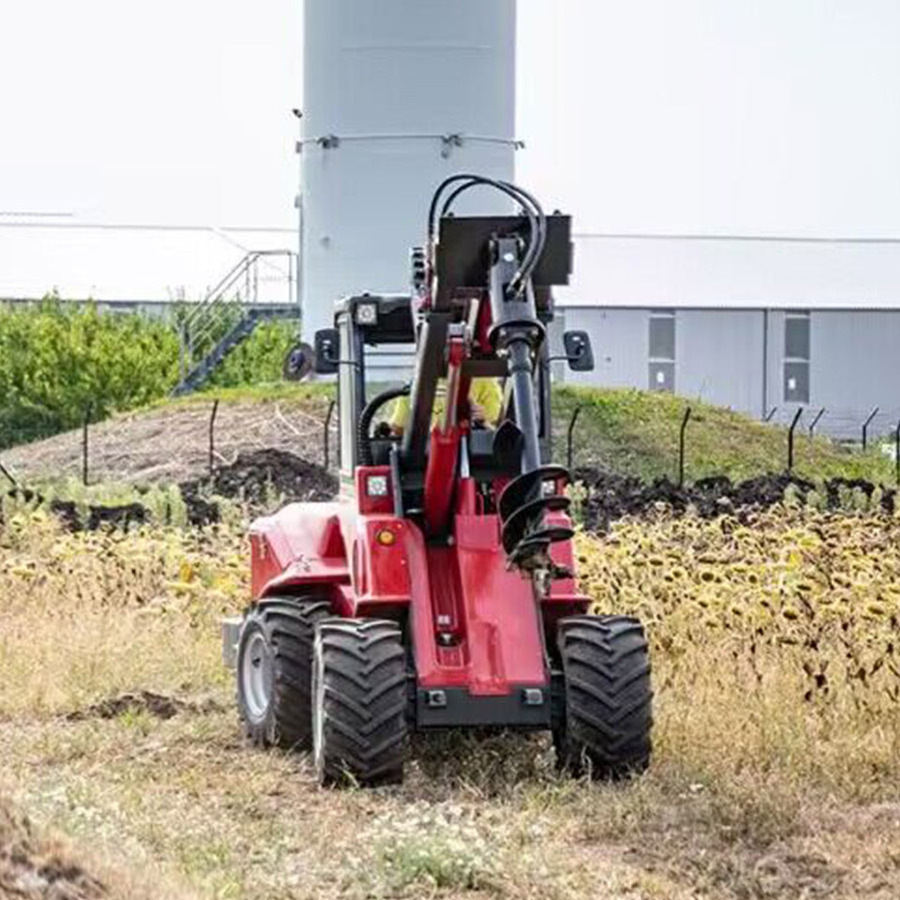

Articulated Avant Mini Loader DY1150 Mini Telescopic Wheel Loader For Sale
|
Dimension (LxWxH) |
3410mm*1510mm*2320mm |
|
Max.Lifting height to the pin (Boom Extended) |
3530mm |
|
Max. Lifting height to the pin (Boom Retracted) |
2908mm |
|
Bucket Capacity |
600L |
|
Rated Loading Capacity |
1600kg |
|
Tipping Load |
2600kg |
|
Min. Turning Radius |
1535mm |
|
Ground Clearance |
330mm |
|
Turning Angle |
45 Degree |
|
Speed |
16.5km/h |
|
Operating Weight |
2300kg |
|
Standard Tires |
31X15.5-15 |
|
Tire Pressure |
2.8Bar |
|
Oil Tank Capacity |
70L |
|
Pressure |
200bar |
|
Working Oil Flow |
82L/min |
|
Tracking Oil Flow |
117L/min |
|
Oil Model(Mineral Oil) |
L-HL46 |
|
Fuel Tank Capacity |
32L |
|
Battery Capacity |
70Ah |
|
Voltage |
12V |
DY1150 Features:
*Compact design, Easy to handle.
*Drive speed as high as 15~30km/h
*Small turning radius.
*Telescopic Boom as standard.
*Self Levering.
*Anti-Slip function driving on rough road.
*Electrical parking as standard.
*Optional Rear Hydraulic Output.
*Convenient maintenance.
*Great maneuverability – works in tight situations as well.
*Sound alarm for maintenance and warnings.
*High-flow auxiliary hydraulics runs almost any attachment.
*European standard quick coupling plate.
*CE, FOPS & ROPS Certified.
The versatile machine for do-it-yourself jobs:
The starting point with the design of DY series was to develop a compact multi purpose work machine for homeowners, vacation houses and smaller farms.
In garden you can make the flower beds, new lawns and ponds with DY1150 . It is also an ideal tool for lawn mowing and other maintenance jobs.
In landscaping jobs like building of yards DY series is a great helper: earthmoving and levelling happens very quickly and easily with DY1150
DY1150 is a very efficient snow removal machine in winter, and you can also do salt and sand spreading with it.
Many landscaping contractors, councils, local authorities and churchyards already have an DY series machine working in their parks and yards. The compact dimensions, easy operation, versatility and low costs are features valued by customers.
Forest work
Thanks to its excellent all terrain capabilities DY series works in forest as well. Four wheel drive and small turning radius are of great help there. DY1150 has developed attachments destined for forest work, like timber trailer, , log processor, log splitter, tree spader, hedge trimmer etc.
