- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Drayson
-
Model Number:
-
fiberglass flat sheet
-
Surface Treatment:
-
Smooth/Gritted/Gel-Coated
-
Certificate:
-
ISO9001:2015 / ASTM E-84
-
Material:
-
ECR Glass Fiber + Resin + ATH Filling
Quick Details
-
Application:
-
Construction/Platform/Flooring
-
Technique:
-
Pultruded
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Drayson
-
Model Number:
-
fiberglass flat sheet
-
Surface Treatment:
-
Smooth/Gritted/Gel-Coated
-
Certificate:
-
ISO9001:2015 / ASTM E-84
-
Material:
-
ECR Glass Fiber + Resin + ATH Filling

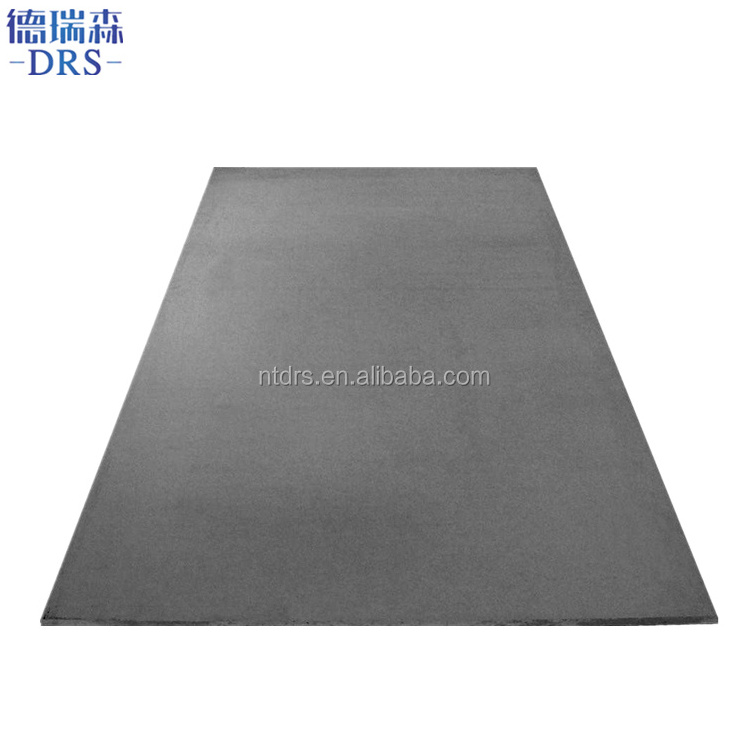

4x8 Foot Polyester Resin Gel Coat Fiberglass Sheets
|
Parameters |
|
|
|
|||
|
Type
|
4x8 Foot Polyester Resin Gel Coat Fiberglass Sheets
|
|
|
|||
|
Material
|
ECR Glass Fiber + Resin (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH)
|
|
|
|||
|
Size
|
can be customized (pls check detail as below form)
|
|
|
|||
|
Color
|
According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized
|
|
|
|||
|
Properties |
|
|
|
|||
|
Light Weight / High Strength |
Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength |
|
|
|||
|
Anti-Fire / Safety
|
Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.
|
|
|
|||
|
Anti-Corrosion
|
No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture.
|
|
|
|||
|
Anti-skid / slip
|
Different process mode on surface, concave, gritted, increase friction factor.
|
|
|
|||
|
Anti-aging
|
Have more than 20 years effective service life under normal outdoor working condition.
|
|
|
|||
|
Anti-fatigue
|
Moderate flexibility reduces the workers` pressure on legs and waist
|
|
|
|||
|
E
asy maintenance
|
have alternative and bright colors. Non-fading. Easily for clean.
|
|
|
|||
|
Excellent economic benifits
|
Excellent comprehensive economic benefits
|
|
|
|||
Y & T Shape
Anti-Slip Stair Nosing
Kick Plate
Flat Sheet Flooring
Anti-Slip Flat Strip
FRP Channel
Tube & Hand Rail System
Tube Connector/Fittings
Angle Profile
Ladder System
H / I Beams
Charge System & Cable Tray
|
Type
|
Dimension(mm)
|
|
Flat plate/panel
|
A*T
|
|
FP32
|
3.2x1220
|
|
FP64
|
6.4x1220
|
|
FP95
|
9.5x1220
|
|
FP127
|
12.7x1220
|
|
FT152
|
15.2x1220
|
|
FT190
|
19x1220
|
|
Flat strip
|
A*T
|
|
FS19
|
19x6.4
|
|
FS30A
|
30x3.0
|
|
FS30B
|
30x6.4
|
|
FS35
|
35x8.0
|
|
FS38
|
38x5.0
|
|
FS40
|
40x8.0
|
|
FS50B
|
50x4.0
|
|
FS50C
|
50x8.0
|
|
FS50D
|
50x15
|
|
FS50E
|
50x17
|
|
FS102
|
102x5.0
|
|
FS152
|
152x20
|
|
FS190
|
190x15
|
|
FS280
|
280x10
|
|
FS50A(bevel edge)
|
50x3.2
|
|
FS60A(bevel edge)
|
60x3.2
|
|
FS70(bevel edge)
|
70x4.0
|
|
FS90A(bevel edge)
|
90x3.2
|
|
FS100(bevel edge)
|
100x3.2
|
|
FS120(bevel edge)
|
120x3.0
|
