Quick Details
-
Function:
-
inflator
-
Product name:
-

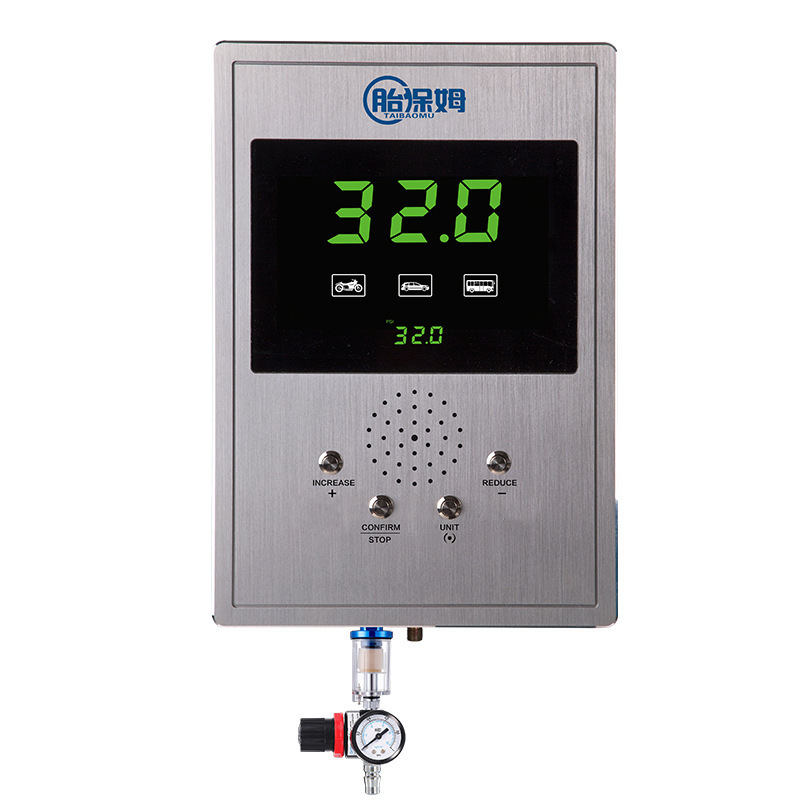

Wall-hung Tire/Tyre Inflator LED
-
Function1:
-
Inflate
-
Function2:
-
Deflate
-
Display:
-
LED Digital Display
-
Pressure unit:
-
4 pressure unit choose ,Psi Bar Kg/cm2 Kpa
-
Max inlet pressure:
-
100 Psi,7 kg/c㎡,7 Bar,700Kpa
-
Accuracy:
-
±0.2Psi,±0.01 Kg/c㎡,±0.013bar,±1Kpa
Quick Details
-
Car Fitment:
-
ABG (Allg Baumasch Gesellsch)
-
Place of Origin:
-
China
-
Warranty:
-
12 Months
-
Function:
-
inflator
-
Product name:
-
Wall-hung Tire/Tyre Inflator LED
-
Function1:
-
Inflate
-
Function2:
-
Deflate
-
Display:
-
LED Digital Display
-
Pressure unit:
-
4 pressure unit choose ,Psi Bar Kg/cm2 Kpa
-
Max inlet pressure:
-
100 Psi,7 kg/c㎡,7 Bar,700Kpa
-
Accuracy:
-
±0.2Psi,±0.01 Kg/c㎡,±0.013bar,±1Kpa
| Technical parameter | |||||
| Model | TB-812 | ||||
| Applicable vehicle | Moto-bicycle,Van,Car,SUV | ||||
| Display mode | LED digital display (340x235mm,backlight display) | ||||
| Powerstyle | AC 110V-220V | ||||
| Workingtemperature | -20~+65℃ | ||||
| Storagetemperature | -20~+65℃ | ||||
| Using | Air | ||||
| Function | Inflate | ||||
| Deflate | |||||
| 4 pressure unit choose ,Psi Bar Kg/cm2 Kpa, | |||||
| reminder and memory function | |||||
| Max inlet pressure | Kg/cm² | 10 kg/cm² | |||
| Bar | 10 Bar | ||||
| Psi | 150 Psi | ||||
| Kpa | 1000Kpa | ||||
| Gauage Measuring range | Kg/cm² | 0 Kg/cm² ~ 7 kg/cm² | |||
| Bar | 0.0~7 Bar | ||||
| Psi | 0.3~100Psi | ||||
| Kpa | 20~700Kpa | ||||
| Accuracy | Kg/cm² | ±0.01 Kg/cm² | |||
| Bar | ±0.01bar | ||||
| Psi | ±0.2Psi | ||||
| Kpa | ±3Kpa | ||||
| Differentiation | 0.5Psi/0.05Bar/0.05Kg/cm²/5Kpa | ||||
| Standard fittings: | Wall-hung Tire Inflator | ||||
| 10m High pressure ruber hose (with air chuck) | |||||
| Power Cable | |||||
| Packe size | 340x238x65mm | ||||
| Net weight | 6.8kg | ||||
*Pre-set pressure automatic inflate
*
LED backlight display
*4 pressure units switch
*Pressure unit Memory function
*Universal joint
*Accuracy ±0.2Psi
Our Service
1. OEM Manufacturing welcome: Product, Package, pressure gauge invention...
2.
free Sample
.
3.
1 year guarantee.
4. We will reply you for your inquiry in 24hours.working day:7*24.
5. after delivery, we will track the products for you once every two days, until you get the products.
FAQ
Q1.Are you a manufacturer or trading company?
A:Established in 2006, Zhuhai SeaPeng Automobile Testing Equipment Co., LTD. is a high-tech enterprise specialized in manufacturing, researching and sales of Tire inflator with Pressure Gauge and AIR inflation system. Headquartered at Zhuhai, China, SeaPeng has dedicated itself in the manufacturing of air inflation over the last 13 year.
Q2.Where is your factory located ? How can I visit there ?
A: With an ISO90001 certified factory located in TangJia wan,ZhuHai city , Guang dong Province , P.R. China . It takes about 1 hour from Guang zhou railway station by train. Welcome to visit us.
