Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
hengsheng
-
Model Number:
-
280mm-110mm A2
-
Torque:
-
customized
-
Model:
-
280mm-110mm A2
-
Structure:
-
Permanent magnet type
-
Product Name:
-
Inear actuator
-
Product material:
-
Aluminium
-
Rated current:
-
≤1.2A
-
Speed:
-
6-7mm/s
-
load current:
-
≤3A
-
Load weight (kg):
-
150
-
Forming length:
-
customized
Quick Details
-
Speed(RPM):
-
custom
-
Continuous Current(A):
-
custom
-
Efficiency:
-
IE 1
-
Warranty:
-
Other
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
hengsheng
-
Model Number:
-
280mm-110mm A2
-
Torque:
-
customized
-
Model:
-
280mm-110mm A2
-
Structure:
-
Permanent magnet type
-
Product Name:
-
Inear actuator
-
Product material:
-
Aluminium
-
Rated current:
-
≤1.2A
-
Speed:
-
6-7mm/s
-
load current:
-
≤3A
-
Load weight (kg):
-
150
-
Forming length:
-
customized
Product Description
|
Place of Origin
|
China Fujian
|
|
certificate
|
CE ROHS
|
|
Brand Name
|
hengsheng
|
|
Model
|
280mm-110mm A2
|
|
Structure
|
Permanent magnet type
|
|
Product Name
|
Inear actuator
|
|
Product material
|
Aluminium
|
|
Rated current
|
≤1.2A
|
|
Speed
|
6-7mm/s
|
|
load current
|
≤3A
|
|
Load weight (kg)
|
150
|
|
Forming length
|
customized
|
|
Duty cycle
|
20%
|
|
noise level
|
≤55db
|
|
Limit switch
|
built-in
|
|
Minimum installation distance
|
280mm-110mm
|
|
Operating temperature
|
30 ℃ ~ + 65 ℃
|
|
Dynamic load force (N)
|
1000N
|
2000N
|
3000N
|
6000N
|
||
|
No load speed (mm/s)
|
25
|
15
|
10
|
5
|
||
|
Full load speed (mm/s)
|
24
|
16
|
8
|
4
|
||
|
Voltage (VDC)
|
12V/24VDC
|
|
|
|
||
Video Description

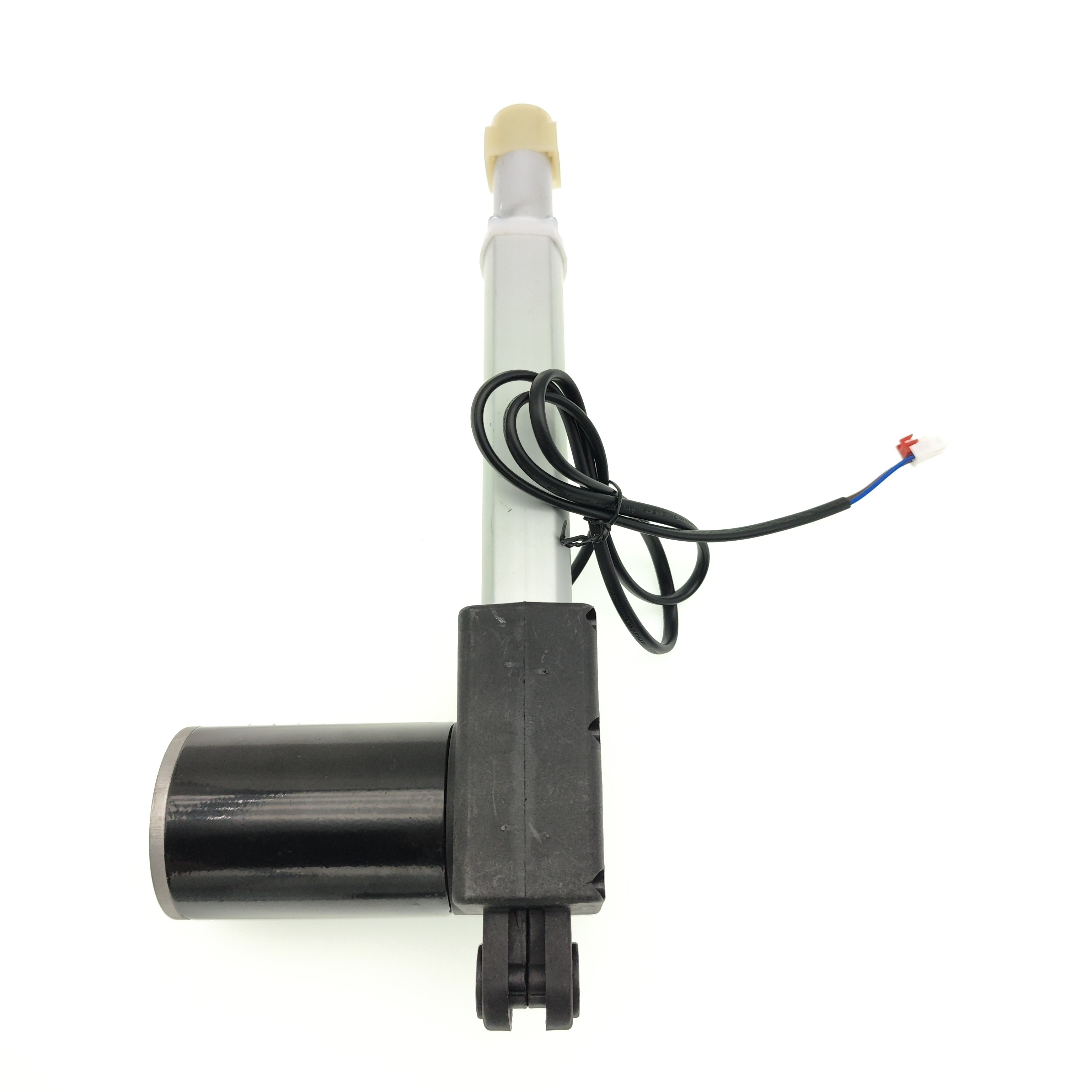

linear actuator brush DC motor
big thrust，low noise，Widely used in Medical beds, furniture, sofas, electric chairs,windows and doors, TV cabinets, cabinets, lifting platforms, etc.
DC drive motor, Screw and plastic turbine (can be customized copper turbine), Aluminum alloy inner tube （Can be customized stainless steel inner tube） ,Aluminum alloy outer tube, surface sandblasting treatment，And Oxidation,treatment，smooth，easy to clean,the chassis is brand new
