Quick Details
-
Model Number:
-
A20-S20-S2-C
-
Brand Name:
-
Tonhe
-
Name:
-
Timer drain valve
-
voltage:
-
AC110-230V
-
time preset:
-
0 H : 0M :0S --99 H 59 M 59 S
-
Working pressure:
-
0-10bar
-
Actuator torque:
-
4N.M
-
Operating current:
-
Less than 100mA
-
Protection Class:
-
IP67
-
Open/close time:
-
≤7 seconds
-
Actuator color:
-
Gray
-
Cable length:
-
0.5 meter
Quick Details
-
Port Size:
-
3/4" BSP or NPT
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A20-S20-S2-C
-
Brand Name:
-
Tonhe
-
Name:
-
Timer drain valve
-
voltage:
-
AC110-230V
-
time preset:
-
0 H : 0M :0S --99 H 59 M 59 S
-
Working pressure:
-
0-10bar
-
Actuator torque:
-
4N.M
-
Operating current:
-
Less than 100mA
-
Protection Class:
-
IP67
-
Open/close time:
-
≤7 seconds
-
Actuator color:
-
Gray
-
Cable length:
-
0.5 meter

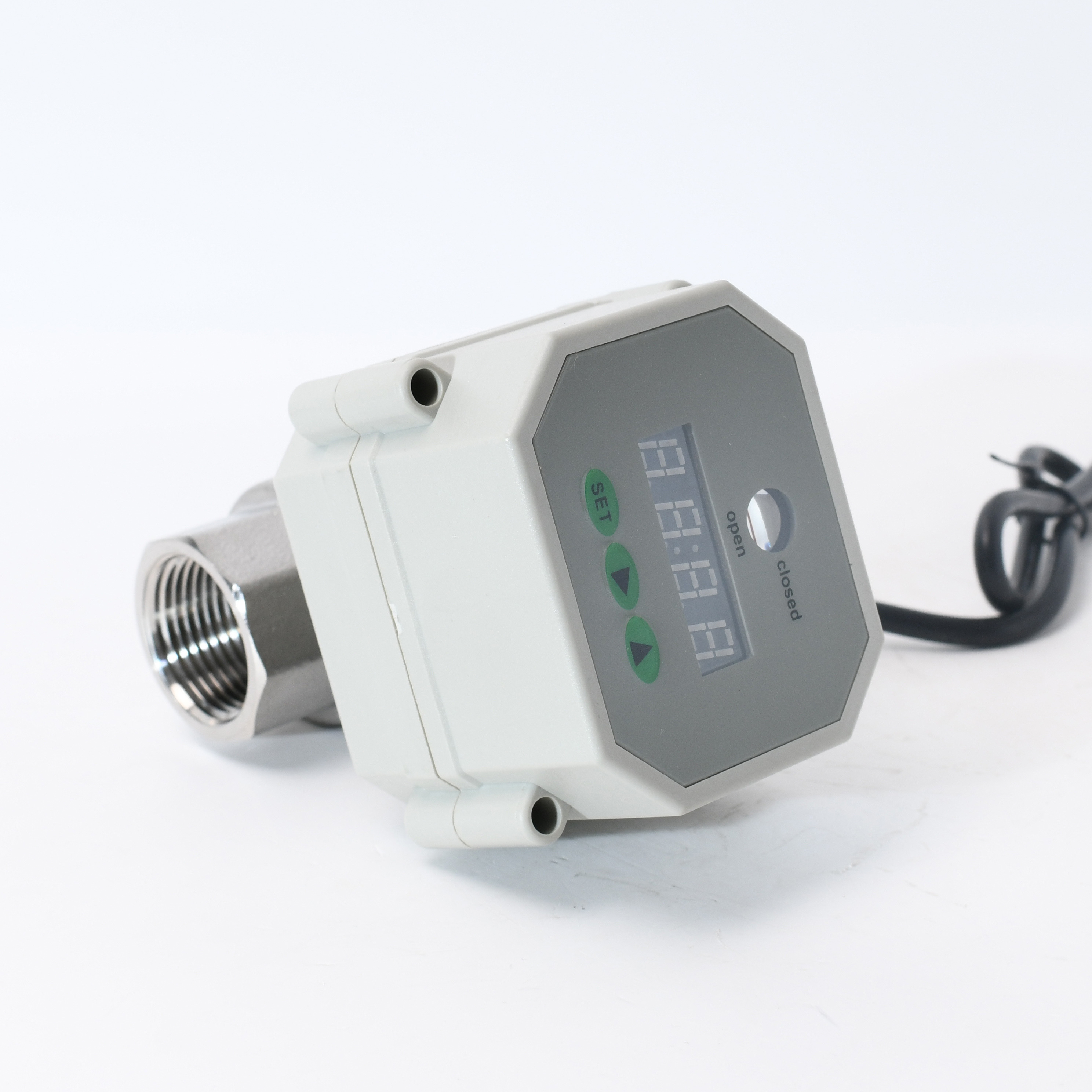

Tonheflow factory price 2 way DN20 304 stainless steel auto drain solenoid valve electric on off valve with timer
Pls confirm the details below when you order them.
No. | Item | Need to be confirmed |
1 | Valve thread | BSP or NPT female thread |
2 | Voltage | AC110-230V |
3 | Valve size | DN20 3/4" |
Technical Parameters
Valve size |
NPT/BSP 1/2 ” 3/4 ” (Optional ) |
Type |
Shut off ball valve, p ower is electricity |
Maximum working pressure |
1. 0 MPa |
Circulation medium |
Fluid, air |
Rated voltage |
AC/ DC 9 - 24 V AC 10-230V (Optional ) |
Open/close time |
≤ 7 S |
keeping valve open time |
0 H : 0M :0S --99 H 59 M 59 S |
keeping valve close time |
0 H : 0M :0S --99 H 59 M 59 S |
Working current |
≤500 m A |
Stall current setting |
0-599 mA |
Life time |
7 0000 times ( testing pressure is 0.4MPa, medium is water ) |
Valve b ody material |
Brass SS304 SS316 ( Optional ) |
Actuator material |
Engineering Plastics PPO |
S ealing material |
FKM & PTFE |
Actuator rotation |
90° |
T orque force |
2 N .m |
Cable Length |
0.5m , 1.5m ( Optional ) |
Environment temperature |
-15℃~ 6 0℃ |
Liquid temperature |
2℃~ 90℃ |
Manual operation |
No |
Open/close i ndicator |
Yes |
Protection class |
IP6 7 |
Certificate |
LVD, EMC, ROHS |
Company quality management system |
ISO 9001:2015 |
