Quick Details
-
Size:
-
1140*1220*1460mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ENEJEAN
-
Power:
-
2.5KW
-
Heating:
-
Electric,Steam,Electric&Steam, Hot water
-
Voltage:
-
110,220,230,380,400,415V
-
Certificate:
-
CE certification & ISO9001
-
Material:
-
Stainless steel 304, corrossion free
-
Installation:
-
100% Free standing
-
Control:
-
Full-automatic & Manual
-
Advantages:
-
Quality & Service Guaranteed
-
HS Code:
-
84502000
Quick Details
-
Warranty:
-
2 years
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Weight:
-
680KG
-
Size:
-
1140*1220*1460mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ENEJEAN
-
Power:
-
2.5KW
-
Heating:
-
Electric,Steam,Electric&Steam, Hot water
-
Voltage:
-
110,220,230,380,400,415V
-
Certificate:
-
CE certification & ISO9001
-
Material:
-
Stainless steel 304, corrossion free
-
Installation:
-
100% Free standing
-
Control:
-
Full-automatic & Manual
-
Advantages:
-
Quality & Service Guaranteed
-
HS Code:
-
84502000

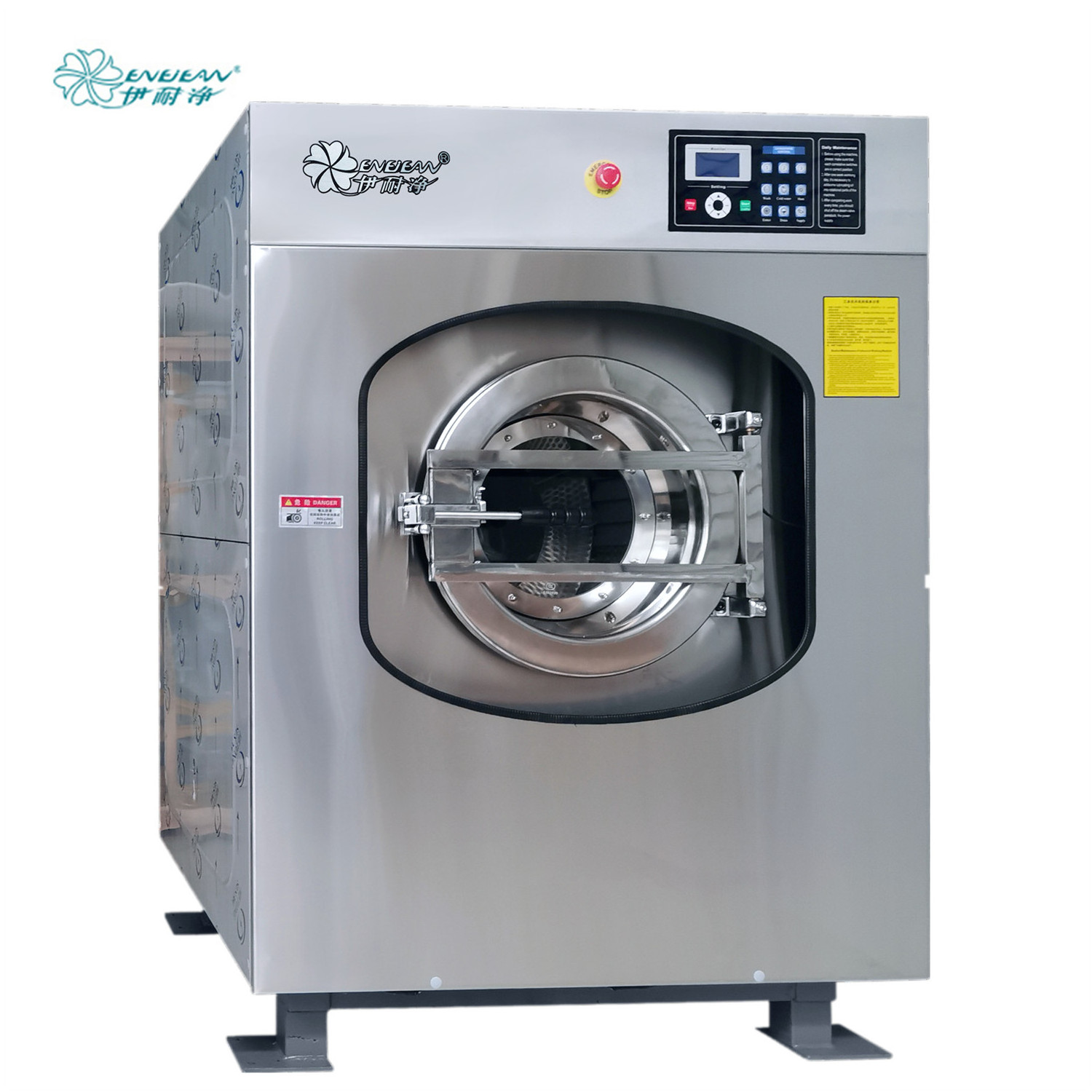

ENEJEAN
Industrial Washing Machine
1. Front loading washing machine Electric or steam heated.
2. Panel and drum adopt high quality stainless steel, acid and alkali resistance, anti-corrosion.
3. Washing machine with mechanical suspension shock structure, low noise, free standing.
4. Adopted imported seal, sealing is good, no leakage.
5. Fully programmable electronic control, fault indication system.
6. Electrically operated Drain Valve.
| Model | YSX-100 | YSX-70 | YSX-50 | YSX-30 | YSX-25 |
YSX-20
|
YSX-15 |
|
Washing Capacity |
100 KG | 70 KG | 50 KG | 30 KG | 25 KG | 20 KG | 15 KG |
|
Drum (Dia.*Deep) |
1200*820 mm | 1200*626 mm | 1070*610 mm |
900*500 mm |
800*500 mm | 780*460 mm | 720*380 mm |
|
Laundry Speed |
32 RPM | 34 RPM | 36 RPM | 36 RPM | 51 RPM | 51 RPM | 51 RPM |
|
High Speed Extracting |
67 0 RPM | 670 RPM | 700 RPM | 720 RPM | 800 RPM | 800 RPM | 800 RPM |
| Motor Power | 7.5 KW | 7.5 KW | 5.5 KW | 4 KW | 2.5 KW | 2.2 KW | 1.5 KW |
|
Drain Pipe Dia. |
ø160 mm | ø140 mm | ø140 mm | ø140 mm | ø48-ø60 mm | ø48-ø60 mm | ø48-ø60 mm |
|
Machine Dimension (L*D*H) |
1770*1860 *2300 mm |
1770*1800 *2300 mm |
1600*1500 *1920 mm |
1400*1380 *1760 mm |
1140*1220 *1460 mm |
1050*1070 *1360 mm |
960*880 *1150 mm |
| Machine Weigh | 3200 KG | 2700 KG | 2500 KG | 1800 KG | 680 KG | 580 KG | 520 KG |
Electric Heating and Steam Heating Options
Both steam heating and electric heating are available for custumers' choice.
Stainless Steel Front Panel of Outer Cylinder
All our machine cover panels are constructed with high-quality stainless steel to guarantee rust resistance even when in contact with water. This premium-grade material ensures exceptional durability and longevity, safeguarding the machine's structural integrity over extended periods of use.
Strong Framework
The machine boasts a robust frame constructed with 4# tubular steel, ensuring optimal stability and durability. Its base is also made of real steel material, further enhancing its strength and reliability. Thanks to its innovative soft mounting design, the incorporation of spring buffers and dampers effectively mitigates vibrations during high-speed operation.
Drainage System
Our advanced system incorporates an air cylinder to precisely control the drain outlet, effectively managed by our programmable control system.
Additionally, the drive system is equipped with comprehensive protection mechanisms, including safeguards for over current, over voltage, and overload situations.
