Quick Details
-
Brand Name:
-
HK
-
Dimension(L*W*H):
-
3300*2320*3120
-
Weight:
-
15500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Diameter of cone:
-
1750
-
Max. feeding size:
-
115
-
Width of discharging hole:
-
25-50
-
Motor power (kw)::
-
160
-
Name:
-
Small stone cone crusher
-
Installation:
-
Engineer Guide
-
Spare parts supply:
-
Lifelong Time
-
Test&Installation:
-
Professional Engineer Assigned
Quick Details
-
Application:
-
Mining, all kinds of stone
-
Capacity(t/h):
-
5-20
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HK
-
Dimension(L*W*H):
-
3300*2320*3120
-
Weight:
-
15500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Diameter of cone:
-
1750
-
Max. feeding size:
-
115
-
Width of discharging hole:
-
25-50
-
Motor power (kw)::
-
160
-
Name:
-
Small stone cone crusher
-
Installation:
-
Engineer Guide
-
Spare parts supply:
-
Lifelong Time
-
Test&Installation:
-
Professional Engineer Assigned
Small stone cone crusher
Product Description of Small stone cone crusher
1. Introduction of Small stone cone crusher
Small stone cone crusher is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industry and many other sectors.
Small stone cone crusher of granite crusher is also suitable for crushing raw materials in metallurgical, building, road building, chemical and silicate industries.
According to the different crushing principle and mass product particle size, it can be divided into many models.
Small stone cone crusher has large crushing ratio, high efficiency, low energy consumption, uniform product size, suitable for medium and fine crushing of all kinds of ores and rocks.

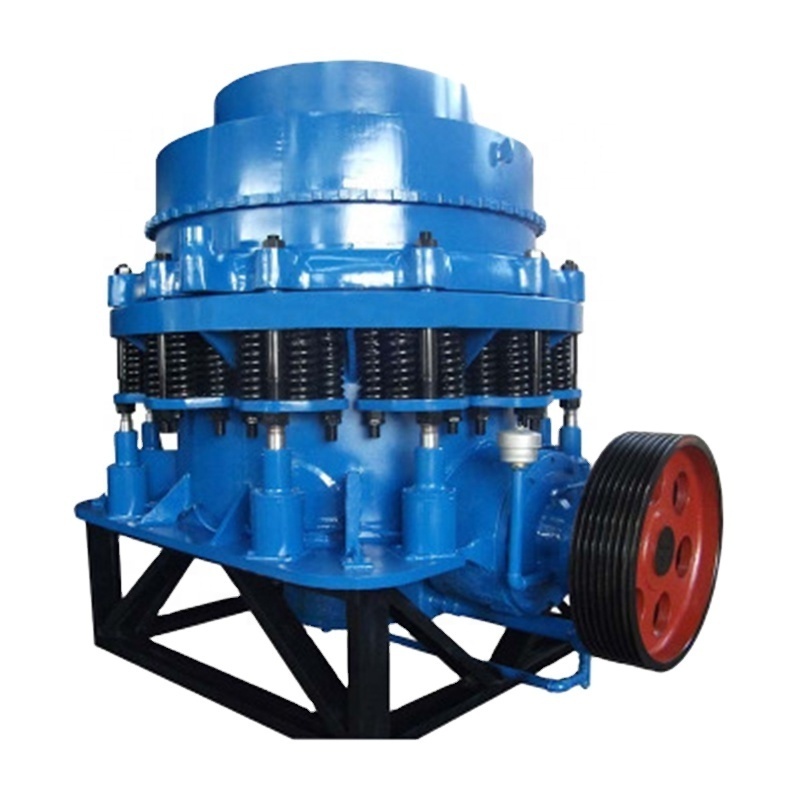

2. Pictures of Small stone cone crusher
3. Structure of Small stone cone crusher
4. Working Principle of Small stone cone crusher
In the working process of the Small stone cone crusher of granite crusher, the motor drives the eccentric sleeve to rotate through the transmission device,
and the moving cone rotates under the force of the eccentric shaft sleeve, and the section near the static cone becomes a broken cavity.
The material is crushed by the extrusion and impact of the moving cone and the static cone.
When the moving cone leaves the section, the material of the required particle size falls under the action of its own gravity and is discharged from the cone bottom.
5. Performance Characteristics of Small stone cone crusher
(1) High crushing ratio and high production efficiency.
(2) Low consumption and low operating cost of easily damaged parts
(3) laminated and broken, the finished product has excellent grain shape.
(4) Hydraulic protection and hydraulic cleaning, high degree of automation, reduce downtime.
(5) Thin oil lubrication, reliable advanced, improve service life.
(6) Various broken cavity types, flexible application and strong adaptability.
(7)The maintenance is simple and the operation is convenient.
(8) It provides higher production capacity, excellent product grain shape, and easy automatic control, reliability and flexibility, truly create more value for users.
6. Technical Parameters of Small stone cone crusher
|
Model |
Diameter(mm) |
Feed inlet size(mm) |
Discharge size(mm) |
Capacity(t/h) |
Power(kW) |
Speed of eccentric shaft(r/min) |
Weight(t) |
Overall dimensions(mm) |
|
PYB600 |
600 |
65 |
12-25 |
12-25 |
30 |
356 |
5 |
2800×1300×1700 |
|
PYD600 |
600 |
35 |
3-15 |
5-23 |
30 |
356 |
5.5 |
2800×1300×1700 |
|
PYB900 |
900 |
115 |
15-50 |
50-90 |
55 |
333 |
10.2 |
3050×1640×2350 |
|
PYZ900 |
900 |
60 |
5-20 |
20-65 |
55 |
333 |
10.2 |
3050×1640×2350 |
|
PYD900 |
900 |
40 |
3-13 |
15-50 |
55 |
333 |
10.3 |
3050×1640×2350 |
|
PYB1200 |
1200 |
145 |
20-50 |
110-200 |
110 |
300 |
24.7 |
4152×2300×2980 |
|
PYZ1200 |
1200 |
100 |
8-25 |
50-15- |
110 |
300 |
25 |
4152×2300×2980 |
|
PYD1200 |
1200 |
50 |
3-15 |
18-105 |
110 |
300 |
25.6 |
4152×2300×2980 |
|
PYB1750 |
1750 |
215 |
25-60 |
280-480 |
160 |
245 |
50.3 |
4870×3800×4192 |
|
PYZ1750 |
1750 |
185 |
10-30 |
115-320 |
160 |
245 |
50.3 |
4870×3800×4192 |
|
PYD1750 |
1750 |
85 |
5-15 |
75-230 |
160 |
245 |
50.4 |
4870×3800×4192 |
|
PYB2200 |
2200 |
300 |
30-60 |
590-1000 |
260-280 |
220 |
80 |
7705×3430×4852 |
|
PYZ2200 |
2200 |
230 |
10-30 |
200-580 |
260-280 |
220 |
80 |
7705×3430×4852 |
|
PYD2200 |
2200 |
100 |
5-15 |
120-340 |
260-280 |
220 |
81.4 |
7705×3430×4850 |
7. Warranty of Small stone cone crusher
1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost.
After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place.
But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
8. About Our factory of Small stone cone crusher
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). feeding material
2). Feeding material MAX. Size (mm)
3). Final mesh size (mm)
4). Capacity (t/h)
Upon we got your message we shall give you our favorable offer in short time.
