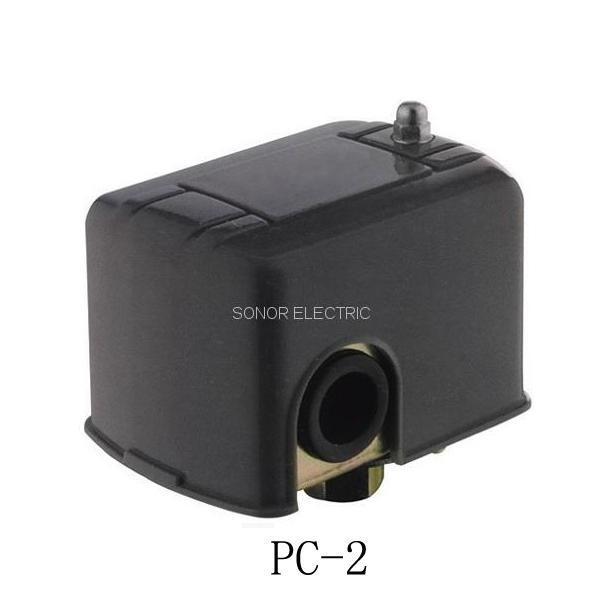

water pump pressure switch/puressure switch for water pump
water pump pressure switch/puressure switch for water pump

water pump pressure switch/puressure switch for water pump

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
SN-PC-2
Max. Current:
20A
Max. Working Pressure:
10bar
Certification:
CE, SGS, ISO
Current:
10A 20A
Voltage:
220V-240V 110V-120V 110V-240V
Max.working temperature:
60℃
Protection grade:
IP 65
Connection thread:
R1"
Max.power:
1.1KW 1.5KW 2.2KW
Starting pressure setting:
1.2bar 1.5bar 2.2bar

Quick Details

Max. Voltage:
240V
Place of Origin:
China
Brand Name:
SONOR
Model Number:
SN-PC-2
Max. Current:
20A
Max. Working Pressure:
10bar
Certification:
CE, SGS, ISO
Current:
10A 20A
Voltage:
220V-240V 110V-120V 110V-240V
Max.working temperature:
60℃
Protection grade:
IP 65
Connection thread:
R1"
Max.power:
1.1KW 1.5KW 2.2KW
Starting pressure setting:
1.2bar 1.5bar 2.2bar

Product Description

water pump pressure switch/puressure switch for water pump

water  pressure switches provide reliable control for automatic water systems with time function. The pressure switch is universally acceptable for water well pumps and pumping systems usage.It will automatically cut the water supply restoration. A manual reset lever will be decreased if system pressure is suitable for automatic operation. The simple
design makes it easy to use for both professionals and normal users.

Function:

1.Electric swith used in water systems,start and stop the pump automatically

2.Examine the water automatically,stop the pump in the case of water shortaget,protect the pump from damage caused by dry-running

3.Completely replaced traditional pump control system composed of pressure switch,pressure tank and check valve,etc.

Technical Parameter
SN-PC-2
Min.pressure(on):20PSI
Max.pressure(off):80PSI
Joint screw:1/4"
Pressure range:20-40PSI,30-50PSI,40-60PSI

MODEL

Min On
(Cut-In) (PSI)

Max Off

(Cut-Out) (PSI)

Differential
(PSI)

Factory Setting      (PSI)

Electrical

Pipe Fittings

Contact Arrangement

120VDC

240VDC

SN-PC-2

20

80

15-30

20-40

2HP

3HP

NPT1/4”Male or Female

NC

15-35

30-50

2HP

3HP

NPT1/4”Male or Female

NC

15-35

40-60

2HP

3HP

NPT1/4”Male or Female

NC
