Quick Details
-
Weight:
-
7KG
-
Size:
-
115*18*18cm
-
Weight (KG):
-
7 kg
-
Product name:
-
4 Inch Frp Ro Membrane Housing/4040 Pressure Vessel Shell
-
Type:
-
End opening or side opening
-
Brand name:
-
OEM or FY
-
Model number:
-
4040
-
Use:
-
RO palnt filter parts
-
Certificate:
-
ISO9001
-
Package:
-
Carton package
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FEIYUE
-
Material:
-
Cardboard Carton, FRP
-
Weight:
-
7KG
-
Size:
-
115*18*18cm
-
Weight (KG):
-
7 kg
-
Product name:
-
4 Inch Frp Ro Membrane Housing/4040 Pressure Vessel Shell
-
Type:
-
End opening or side opening
-
Brand name:
-
OEM or FY
-
Model number:
-
4040
-
Use:
-
RO palnt filter parts
-
Certificate:
-
ISO9001
-
Package:
-
Carton package
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
4 Inch Frp Ro Membrane Housing/4040 Pressure Vessel Shell
| FRP 40E (End port) |
| Material | FRP |
| End cap material | ABS |
| Max.Working pressure | 300 psi, 450 psi, 600 psi, 800 psi, 1000 psi |
| Inlet port | 3/4'' |
| Outlet port | 1/2'' |
| Model | 4021, 4040, 4080, 40120, 40160, 40200 |
| FRP 40S ( Side port) | |
| Material | FRP |
| End cap material | ABS |
| Max. Working pressure | 300 psi, 450 psi |
| Inlet port | 3/4'' |
| Outlet port | 1/2'' |
| Model | 4021, 4040, 4080, 40120, 40160, 40200 |
| FRP 80S ( Side port) | |
| Material | FRP |
| End cap material | ABS |
| Max. Working pressure | 300 psi, 450 psi, 600 psi, 800 psi, 1000 psi |
| Inlet port | 1 1/2” |
| Outlet port | 1'' |
| Model | 8040, 8080, 80120, 80160, 80200 |

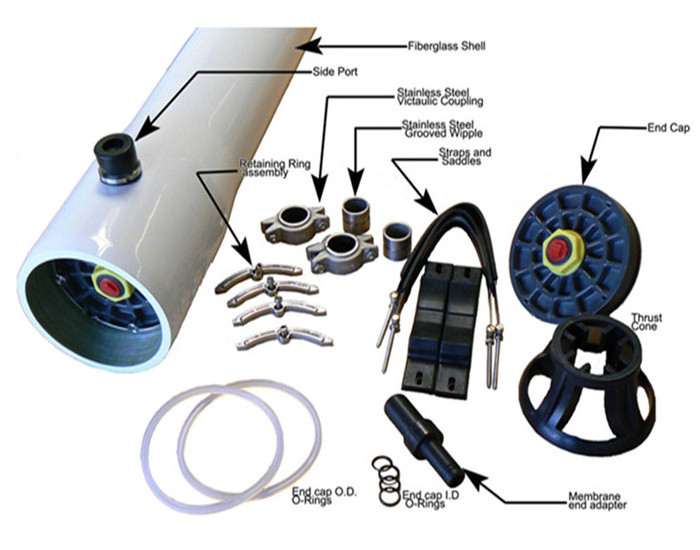

FRP RO Membrane housing Characteristic:
1. Diameter:4'' ;
2. Matrial: FRP;
3. Elements inside: 1-7pcs RO membrane;
4. Pressure: 300PSI to 1200PSI;
5. Type: side port and end port
6. Sizes:8040/8080/80120/80160, 4040/4080/40120/40160;
7. Suitable for Dow, GE, Koch, Hydranautics, Saehan, Toray, VONTRON membrane components of other standards.
Quality
A
ssur
ance
o
f FRP RO Membrane housing:
| Model |
PS PSI(MPa) |
Connection | Membrane size | Number of elements |
| AMD-80S150 | 150(1.0) | SIDE | 8040 | 1-8 |
| AMD-80S300 | 300(2.1) | SIDE | 8040 | 1-8 |
| AMD-80S450 | 450(3.1) | SIDE | 8040 | 1-8 |
| AMD-80S600 | 600(4.1) | SIDE | 8040 | 1-8 |
| AMD-80S1000 | 1000(6.9) | SIDE | 8040 | 1-8 |
| AMD-80S1200 | 1200(8.4) | SIDE | 8040 | 1-8 |
| Model |
PS PSI(MPa) |
Connection | Membrane size | Number of elements |
| AMD-40E150 | 150(1.0) | END | 4040 | 1-4 |
| AMD-40E300 | 300(2.1) | END | 4040 | 1-4 |
| AMD-40E450 | 450(3.10) | END | 4040 | 1-4 |
| AMD-40E600 | 600(4.1) | END | 4040 | 1-4 |
| AMD-40E1000 | 1000(6.9) | END | 4040 | 1-4 |
