Quick Details
-
Brand Name:
-
Moral
-
Model Number:
-
SJC
-
Warranty:
-
5 Years
-
diameter:
-
5000mm
-
Platform:
-
Aluminum platform
-
control:
-
automatic
-
Height:
-
310mm/min.120mm
-
load capacity:
-
3000kg
-
Speed:
-
2Rpm(can be adjusted)
-
Drive System:
-
Pin-Gear Drive System
-
Power Output:
-
0.75KW
-
Support wheels:
-
High hardness Nylon wheels
Quick Details
-
Height (mm):
-
5000mm
-
Width (mm):
-
5000mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Moral
-
Model Number:
-
SJC
-
Warranty:
-
5 Years
-
diameter:
-
5000mm
-
Platform:
-
Aluminum platform
-
control:
-
automatic
-
Height:
-
310mm/min.120mm
-
load capacity:
-
3000kg
-
Speed:
-
2Rpm(can be adjusted)
-
Drive System:
-
Pin-Gear Drive System
-
Power Output:
-
0.75KW
-
Support wheels:
-
High hardness Nylon wheels

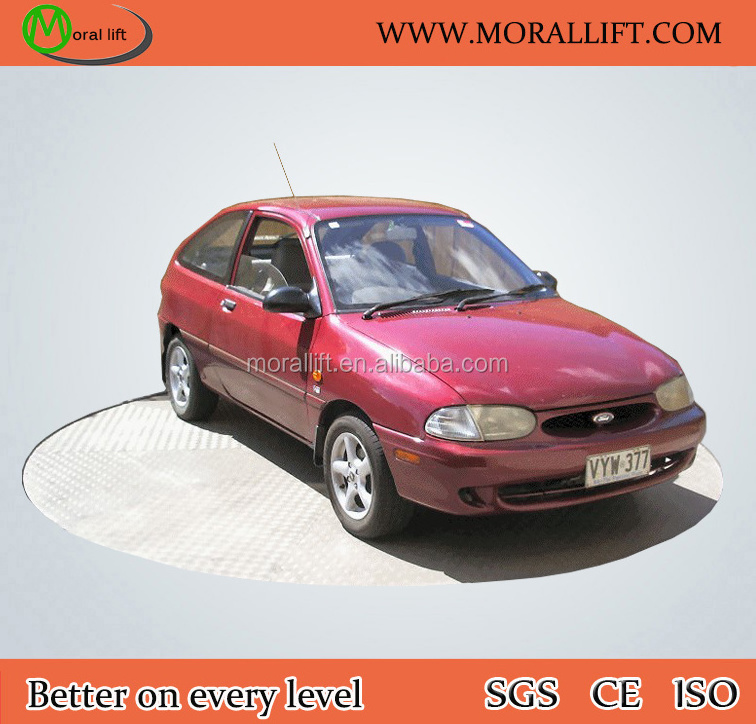

domestic rotating driveway car turntable
Pin-Gear drive mechanism
Rotate any 360 degree!!!
Max. diameter 35000mm available
10years for main structure and 1year for parts!!!
Directions for uses
1.This machine is used where the car can not make a turn, and auto-revolving automobile
exhibition platform
2.The range of rotation: 0°— 360°
3.Automatic or manually control of rotation
No need to risk backing into traffic when you have a Car Turner vehicle turntable. Just drive on,
push the remote control (like a garage door opener) and the car turntable rotates (~~ you safely
and easily, so you can drive off head-first.
Car turners help eliminate accidents and property damage, and protect children from harm. Turn
your parking stress into pride of ownership with this practical and classy upgrade for your home.
No digging required as the car turner mounts on the surface of your existing driveway.
Main feature:
1.Pin-Gear drive mechanism, ensuring the smooth revolving, reliable operation, low noise,long life
and minimal wear and tear.
2.Surface medium density fibre board, steel plate, diamond tread aluminum alloy available.
3.
Max. diameter 35000mm available
4. Made by steel, FOB Qingdao
5.
Rotate any 360 degree
Car turntable, Vehicle Turntables, Automobile Turntables, Parking Turntables, max 35000mm
diameter
technical data
|
Item no. |
Type |
Car turntable |
|
Vehicle size |
5000*1850*1550 |
|
|
Single Vehicle Weight (kg) |
≤2000 |
|
|
Turning plate diameter |
5000 |
|
|
Drive Mode |
Electric Motor |
|
|
Speed of turning plate |
2r/min(can be adjusted |
|
|
T urning angle |
360 degree |
|
|
Power source |
380V,50HZ,3P/220V,50HZ,3P/other local power |
|
|
Power coverage |
0.75KW |
|
|
Control System |
Push Button, Remote Control or PLC |
|
Friendship tips:
Factory direct!!!quality assurance!!!best price!!!!
rotary car turntables prices is caculated according to your load capacity and diameter , prices above is just for reference.
so when you send a inquiry, please kindly send the below information to us:
Load capacity:_??? kg
diameter:__???m
Your any requirement can be realiazed in Moral lift!
Moral lift is dedicated in offering every customer car turntable with fist-rank solution and services!
comprehensive optimizing quality upgrade!!!
please contact us if any inquiry, and tell details thanks!!!
