Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HESHENG
-
Dimensions(L*W*H):
-
1220*1020*1620mm
-
Weight:
-
400 KG
-
Certification:
-
CE Certification
-
Warranty:
-
One Year
-
Core Components:
-
vacuum table
-
Model:
-
HS4060GJ
-
Print repeatability::
-
+-0.01515MM
-
Power supply:
-
380V3p
-
Air supply:
-
0.5-0.6 Mpa
-
Print thickness:
-
0-30mm
-
Max. frame size::
-
700*800mm
-
Max Printing size:
-
400*600mm
-
Worktable Size:
-
500*700mm
-
Package:
-
1220*1020*1620mm
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HESHENG
-
Dimensions(L*W*H):
-
1220*1020*1620mm
-
Weight:
-
400 KG
-
Certification:
-
CE Certification
-
Warranty:
-
One Year
-
Core Components:
-
vacuum table
-
Model:
-
HS4060GJ
-
Print repeatability::
-
+-0.01515MM
-
Power supply:
-
380V3p
-
Air supply:
-
0.5-0.6 Mpa
-
Print thickness:
-
0-30mm
-
Max. frame size::
-
700*800mm
-
Max Printing size:
-
400*600mm
-
Worktable Size:
-
500*700mm
-
Package:
-
1220*1020*1620mm

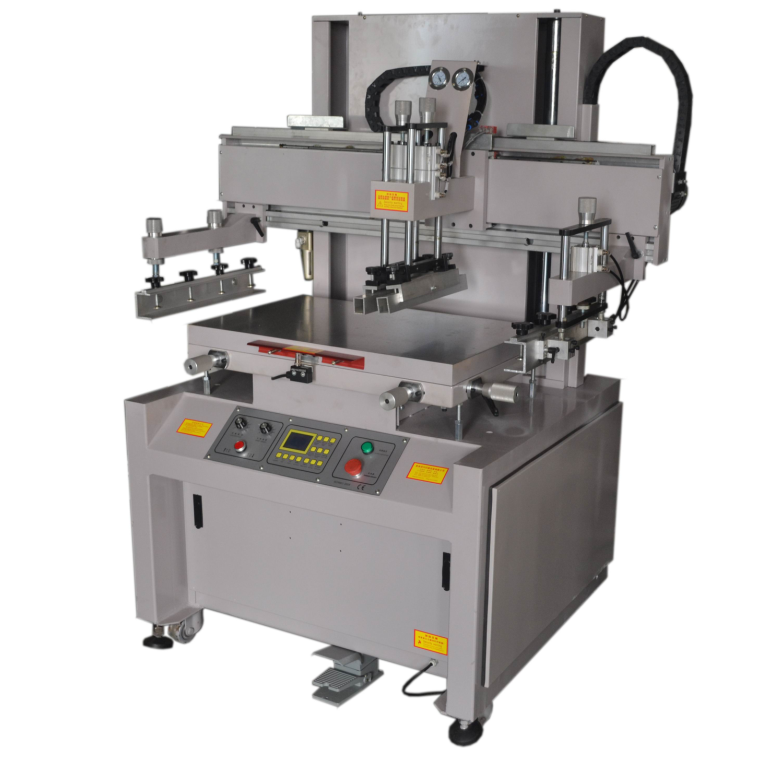

Semi Auto Electricflat flat bed screen printing machine with micro registration for sale
Functions:
1. This silk screen printing machine series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries .
2. silk screen printing machine suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, PET heating transfer film,tempered glass,auto windshield,light guide plate,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of PVC, which have high requirement in overprinting...
Characteristics:
- imported electronic and pneumatic components
- safety operates system
- worktable is facilitated with X-Y-Z fine pitch registration adjustment
- worktable is with self locking system as well as vacuum system
- option: wrap-around safety guard Components & Brand:
- guide-way: BOSCH REXROTH
- pneumatic System: BOSCH REXROTH, PNEUMAX
- electric System: OMRON, TE
- CPU: PANASONIC
- transducer: MITSUBISHI
- motor: ABB, CPG
Technical paremeter:
|
Model |
HS4060GJ |
HS5070GJ |
HS6090GJ |
|
Color printing |
Single color printing |
||
|
Printing face |
Flat face |
||
|
Auto grade |
Semi-automatic |
Semi-automatic |
Semi-automatic |
|
Max printing area |
400*600mm |
500*700mm |
600*900mm |
|
Worktable size |
500*750mm |
600*900mm |
700*1100mm |
|
Printing speed |
1000pcs/h |
1000pcs/h |
1000pcs/h |
|
Max mesh frame |
700*800mm |
1090x800mm |
900x1290mm |
|
Substrate height(mm) |
0-50mm |
0-50mm |
0-50mm |
|
Plate precision(mm) |
±0.05 |
±0.05 |
±0.05 |
|
Overprint precision(mm) |
0.01 |
0.01 |
0.01 |
|
Printing pressure Kfg/ cm2 |
4.0-6.0 |
4.0-6.0 |
4.0-6.0 |
|
Package size |
1470X1150X1850mm |
1470X1150X1850mm |
1470X1150X1850mm |
|
Voltage/power |
380V/50HZ /2KW |
380V/50HZ /2KW |
380V/50HZ /3.2KW |
|
Net weight |
320kg |
320kg |
420kg |
|
Appliance |
Flat surface of materials such as paper, plastic, circuit board, ceramic, glass, non-woven fabric etc... |
||
