Quick Details
-
Control System Brand:
-
RuiDa
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Transon
-
Weight (KG):
-
300 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Working area:
-
140cm*90cm / 55in*35in
-
Standard laser power:
-
100W(Optional 80w)
-
Laser type:
-
CO2 sealed laser tube
-
Engraving speed:
-
0-6000cm/min
-
Cutting speed:
-
0-5000cm/min
-
Power supply:
-
220V/50HZ , 110V/60HZ
-
Graphic format supported:
-
BMP, PLT, DST, DXF, AI
-
Software supported:
-
Photoshop, Coreldraw, AutoCAD, Artcut, TAJIMA
-
Net Weight:
-
450kg
-
Certification:
-
CE, ISO
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Turkey, Germany
-
Showroom Location:
-
Turkey, Thailand
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
/
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Transon
-
Weight (KG):
-
300 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Working area:
-
140cm*90cm / 55in*35in
-
Standard laser power:
-
100W(Optional 80w)
-
Laser type:
-
CO2 sealed laser tube
-
Engraving speed:
-
0-6000cm/min
-
Cutting speed:
-
0-5000cm/min
-
Power supply:
-
220V/50HZ , 110V/60HZ
-
Graphic format supported:
-
BMP, PLT, DST, DXF, AI
-
Software supported:
-
Photoshop, Coreldraw, AutoCAD, Artcut, TAJIMA
-
Net Weight:
-
450kg
-
Certification:
-
CE, ISO
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Turkey, Germany
-
Showroom Location:
-
Turkey, Thailand
-
Marketing Type:
-
Ordinary Product

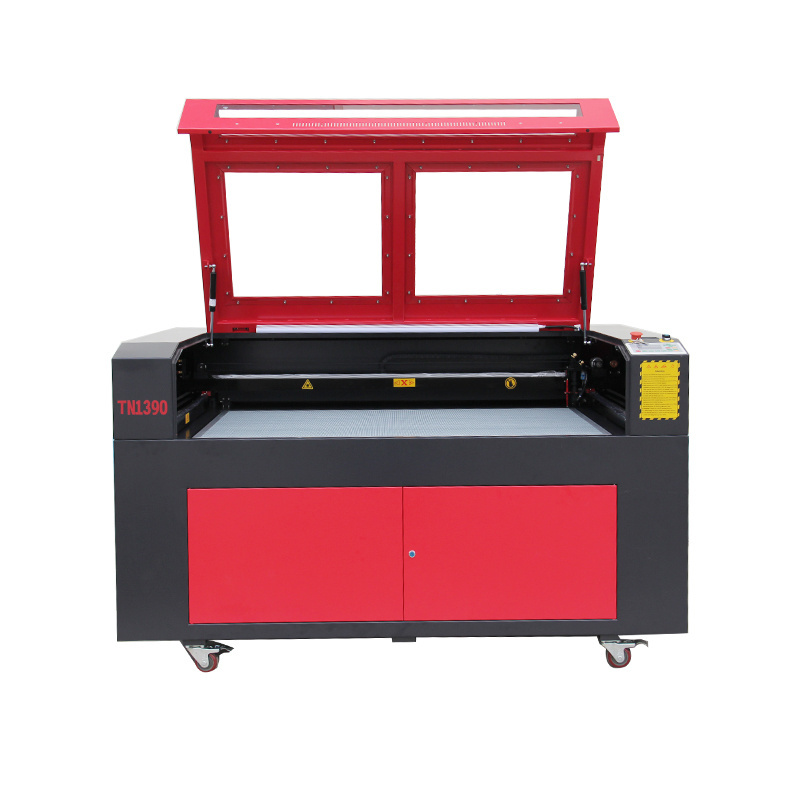

China CNC cutter fabric laser machine
Laser Solution For Paper Crafts, Advantage:
Non-contact processing,
Section smooth, fast, no deformation, no wear, no need mould
Precise cutting
Personalized cutting designs
Low maintenance and operation cost
Easy operation
Create incredible high added value of your products
Features
Specifically developed for the features of paper processing. Multi-position material uploading and unloading meets the requirement of batch processing and production.
The machine can precisely cut paper and also precisely engrave paper with high speed and simple operation.
Boundless innovation of design with one-time prototyping cutting and engraving of all kinds of complex pattern. No need of further processing.
It is non-contact heat processing with high cutting quality. The contour is clear with no burr and deformation.
Applicable industries & Materials
Applicable to paper, cards and packaging materials, etc.
Applicable to greeting cards, shadow puppets, labels, packaging, paper art and other industries.
Parameter
|
TS1490 Tranoson laser cutting machine |
|
|
Item / Model |
TS1490 |
|
Cutting area |
1400x900mm |
|
Laser power |
60W/80W/100W/150W/180W |
|
Laser type |
CO2 Laser tube |
|
Cutting speed |
0-50000mm/min |
|
Resetting positioning accuracy |
0.01mm |
|
Power supply |
220V/50HZ 110V/60HZ |
|
Operating temperature |
0 - 45°C |
|
Operating humidity |
5-95% |
|
Min. shaping character |
English 1.0x 1.0mm |
|
Graphic format supported |
PLT,AI,DXF,BMP,DST.ect. |
|
Software supported |
CorelDraw, PhotoShop, AutoCAD, Tiandao,Tajima |
|
Driving system |
3 phases actuator / Stepper/Servomotor |
|
Cooling mode |
Water-cooling and protection system |
|
Equipment Dimensions |
1960*1310*1120mm |
|
Net Weight: |
550kg |
|
Shipping Dimensions |
2060*1410*1200mm |
|
Optional Spare Parts |
Up-down clump, Rotary System, Honeycomb table |
|
Recommended Spare Parts |
Laser Tube and Lens |
Optional Equipment:
1. Rotary system. For engraving column & cylinder, etc.
2. Motorized up-down table. For feeding thick work piece, often adopted together with rotary system.
3. Water-cooling unit. For cooling down the laser tube.
4. Red-light position. Clear to see where the laser will be
5. Vacuum table. For light-weight work piece such as paper textile, etc
Machine standard and optional parts
Guarantee & after sales Service:
1. Laser tube guarantees 3 months. While the whole machine guarantee for 1 year.
2. 24 hours technical support by email or calling
3. English manual and video tutorial
Paper laser engraving and cutting sample
