Quick Details
-
Dimension(L*W*H):
-
650mm*450mm*740mm
-
Weight:
-
250
-
Power (kW):
-
3kw/4kw
-
brand name:
-
HOYITE hose crimper
-
color:
-
red or yellow or blue or orange,as you need
-
Application:
-
withhold the hose and hose joints together
-
product name:
-
hose crimper
-
crimping range:
-
6-51mm
-
dies:
-
10 sets
-
rated pressure:
-
31.5Mpa
-
control:
-
Manual, foot pedal, Button way
-
weight:
-
about 250 kgs
-
Control System:
-
Electric Control System
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HYT
-
Voltage:
-
220-380V
-
Dimension(L*W*H):
-
650mm*450mm*740mm
-
Weight:
-
250
-
Power (kW):
-
3kw/4kw
-
brand name:
-
HOYITE hose crimper
-
color:
-
red or yellow or blue or orange,as you need
-
Application:
-
withhold the hose and hose joints together
-
product name:
-
hose crimper
-
crimping range:
-
6-51mm
-
dies:
-
10 sets
-
rated pressure:
-
31.5Mpa
-
control:
-
Manual, foot pedal, Button way
-
weight:
-
about 250 kgs
-
Control System:
-
Electric Control System
220v/380v Crimping Machine /hyt-51 Hydraulic High Pressure Hose Crimper
Main products of HYT
· Hose cutting machine
· Hose skiving machine
· Hydraulic hose burst testing machine
· Workbench of hose crimping machine
· Dies storage of hose crimper
· Matched hydraulic hose,ferrules and fittings
Advantage of hose crimper
All of our hose crimper machine are approved by ISO and the machine verified by CE.
Three years useful life guaranteed.One year repair dated from the purchased day.
Design new model fit for customer requirement.We accept customize of large order.
Each of Hydraulic hose crimper tested before delivery in responsible.
Best Pre-sales and after service as well as the technical support .
Satisfied customer requirement make every effort.
Technical description of our HYT-51 hose crimper
|
Product name |
hose crimper |
|
Brand name |
HYT |
|
Model number |
HYT-51 |
|
Place of origin |
Tianjin,China |
|
Crimping range |
6-51mm |
|
Rated pressure |
31.5mpa |
|
The largest crimping pressure |
450T |
|
Micrometer precision |
0.02mm |
|
Oil pump out-let quantity |
5ml/rad/3kw (380V/50Hz-3 phase) 2.5ml/rad/2.2kw (220V/50Hz-1 phase) |
|
Dimension |
650mm*450mm*740mm |
|
Weight |
250kgs |
|
Number of dies |
10 sets |
Application of our hose crimper
Hose crimping machine also called hose locking machine, rubber hose locking machine, mainly by burke
institutions, motor, gear pump, the control valve and fuel tank composition. Suitable for mechanical
engineering of the high pressure hose assembly withhold processing, also can withhold two-way bend,
jumbo bend and deformed head.
Installation and debugging process of hose crimper
1, handling: machine appropriate USES forklift handling.
2, installation: machine should be level fixed on a solid foundation, and ground treatment. brake hose crimping machine
3, oil: open the case back side cover, in the tank to rise 54, 46 ChangChengPai anti-wear hydraulic oil.
4, contact: the power cable joint in the machine regulation of power supply, inching motor observation
t o spin, mold mouth increase the motor rotation in the right direction, otherwise please adjust phase sequence.
CE certificate of our HYT-51 hose crimper

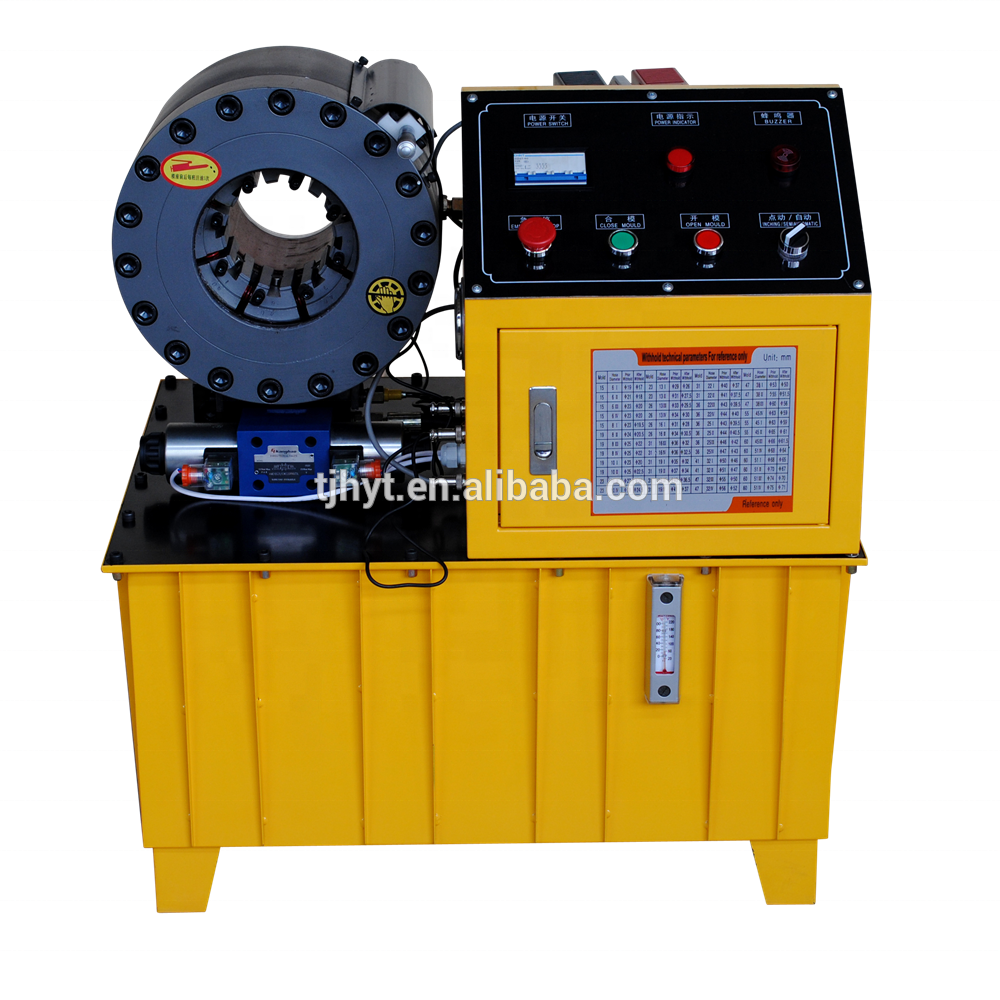

Pictures of hose crimper
High quality nose of hydraulic hose crimper
The Interior device on this type Hydraulic hose crimper
Competitive factory price Hydraulic hose crimper
The back of Hydraulic hose crimper
The inner package to keep away from moisture
Ten sets of high quality dies included with our Hydraulic hose crimper
Professional package to protect the Hydraulic hose crimper
If you want to know more of Hydraulic hose crimper,feel free to contact me
