Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MY
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1 KG
-
Working Temperature Range:
-
-60 - 200 ℃
-
Core Components:
-
silicone
-
Product:
-
12V 24V flexible polyimide film pcb kapton heater with adhesive
-
Parts:
-
Silicone
-
Working temperature:
-
-60-+250 Deg C
-
Application:
-
Oil,water,mill,honey,paint,coconut
-
Color:
-
Orange
-
Size:
-
Reqiured
-
Thickness:
-
1.5mm(standard)
-
Usage:
-
Heating
-
Product name:
-
Polymide Film Electric Thin Film Heaters 12v car mirror PI heater
Quick Details
-
Type:
-
Other
-
Power Source:
-
Electric
-
Voltage:
-
1.5v--800v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MY
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1 KG
-
Working Temperature Range:
-
-60 - 200 ℃
-
Core Components:
-
silicone
-
Product:
-
12V 24V flexible polyimide film pcb kapton heater with adhesive
-
Parts:
-
Silicone
-
Working temperature:
-
-60-+250 Deg C
-
Application:
-
Oil,water,mill,honey,paint,coconut
-
Color:
-
Orange
-
Size:
-
Reqiured
-
Thickness:
-
1.5mm(standard)
-
Usage:
-
Heating
-
Product name:
-
Polymide Film Electric Thin Film Heaters 12v car mirror PI heater

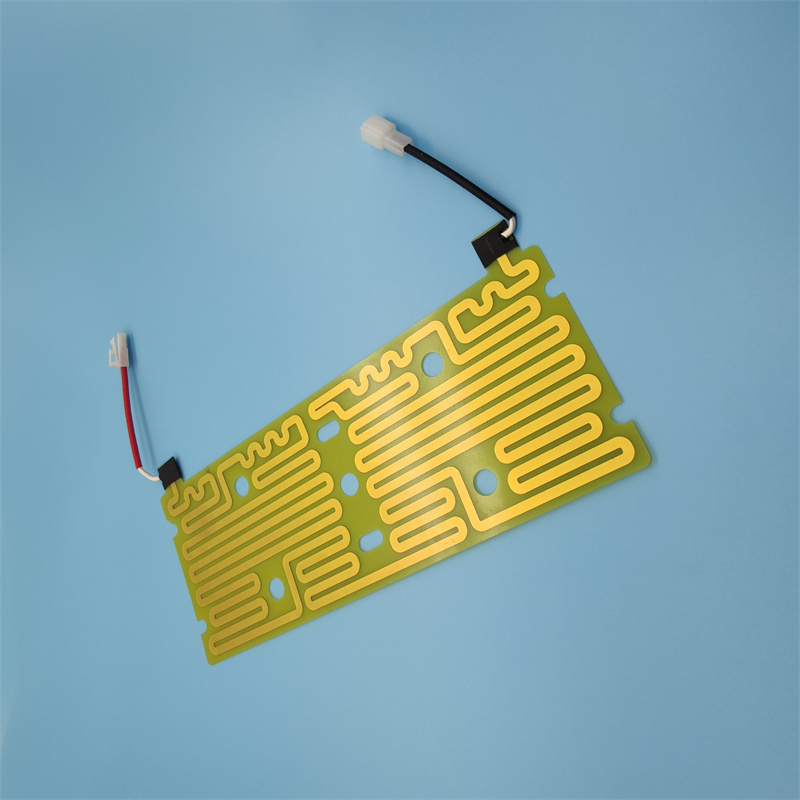

Polymide heaters are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Kapton heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
Specification
Working voltage: 12 - 400V
Working temperature: -200°C - 200°C
Watt density: 1.1-6.5w/cm2
Mounting: PSA or mechanical
Max. size: 500x600mm
Thickness: ≤0.25mm
Exit: teflon, kapton or silicone insulated leads
Parameters
| No. | Description | Parameter |
| 1 | Certification | CE and Rohs |
| 2 | Voltage range | 1.5v~400v |
| 3 | Power density range | 0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) |
| 4 | Using temperature range | -60~200°C(-140~392°F) |
| 5 | Width range | 10mm~500mm(0.39"~19.68") |
| 6 | Length range | 10mm~1800mm(0.39"~70.86") |
| 7 | Thickness range | Standard:0.126~0.266mm(0.005"~0.01") |
| 8 | Plug | Chinese,British, American, European and so on |
| 9 | Quality guarantee | 1 year |
| 10 | Life | more than 4 years(normal useful) |
| 11 | MOQ | 1 piece |
| OEM and ODM is welcome,can print your logo | ||
Applications
Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
Stabilize optoelectronic components
Test or simulate integrated circuits
Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD’s
Protect aircraft electronic and mechanical devices in cold weather / area.
1. All Products one year warranty and all goods on appro for 3 months .
2. Fast delivery and competitive price.
3. We offer FREE assistance in heater design to achieve an ideal thermal heating solution for your application.
4. Custom made size,shape and voltage&wattage.
