Quick Details
-
Fit Machine:
-
20-40 Tons Excavator
-
Fit Link Pitch:
-
135,171,175,190,203,216,228
-
Delivery time:
-
Within 30 days after contract established
-
Usage:
-
track repair,track pin puller
-
Color:
-
Customize
-
After Warranty Service:
-
Video technical support
-
Quality:
-
High-Quality
-
Brand:
-
Huntwell
-
MOQ:
-
1 Piece
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HWV
-
Certification:
-
ISO9001
-
Fit Machine:
-
20-40 Tons Excavator
-
Fit Link Pitch:
-
135,171,175,190,203,216,228
-
Delivery time:
-
Within 30 days after contract established
-
Usage:
-
track repair,track pin puller
-
Color:
-
Customize
-
After Warranty Service:
-
Video technical support
-
Quality:
-
High-Quality
-
Brand:
-
Huntwell
-
MOQ:
-
1 Piece
WORKING PRINCIPLE

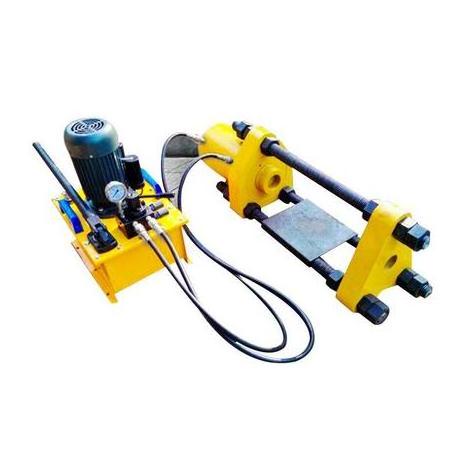

The track link pin press is a special tool by utilizing the conversion from hydraulic energy into mechanical energy to dis-assembly the track pin of a crawler excavator. Manual, electrical or manual and electrical pump is used as a power source to move the hydraulic jack forward so that the pin can be removed smoothly. Instead of gas cutting and hammering, it ensures that the track is intact. It is an ideal special tool for track excavator maintenance and assembly.
Hydraulic system of electrically driven track press: hydraulic system (pump station) is installed on the right side of the host. The entire hydraulic control system drives the high-pressure pump to input the pressure oil through the motor. After the solenoid reversing valve, the oil is respectively input to enable the cylinder plunger to reciprocate up and down. In the neutral position, the system is unloaded and the oil flow goes into the tank. The press is electro-hydraulic controlled. Extra hand pump can be equipped for field operation without power supply.
100T TRACK PIN PRESS MAIN PARAMETERS
| 1 | Nominal force of oil cylinder | KN | 1000 |
| 2 | Press stroke | mm | 180 |
| 3 | Rated pressure | MPA | 20 |
| 4 | Center height | mm | 100 |
| 5 | Motor power | KW | 4 |
| 6 | Rated flow | ml/r | 5 |
200T TRACK PIN PRESS MAIN PARAMETERS
| 1 |
Nominal force of oil cylinder |
KN |
2000 |
| 2 |
Press stroke |
mm |
180 |
| 3 |
Rated pressure |
MPA |
31.5/45 |
| 4 |
Center height |
mm |
110 |
| 5 |
Motor power |
KW |
4 |
| 6 |
Rated flow |
ml/r |
5 |
Product Features
| Certification | ISO9001 |
| Function |
Track Repair Track Pin Puller |
| Suit for | Caterpillar,Hitachi,Volvo,and so on |
| Fit Link Pitch | 135,171,175,190,203,216,228 |
| Delivery Time | Within 30 days after constract established |
| CATALOGUE | |||||||||
| BULLDOZER | D20 | D30 | D31 | D37 | D40 | D41 | D45 | D50 | D60 |
| D65 | D68 | D75 | D80 | D85 | D150 | D155 | D275 | D355 | |
| D3C | D3D | D4C | D4D | D4H | D5 | D6C | D6D | D6H | |
| D7G | D8K | D8N | D9N | D10N | D11N | ||||
| EXCAVATOR | PC30 | PC40 | PC45 | PC60 | PC75 | PC100 | PC120 | PC150 | PC200 |
| PC220 | PC300 | PC350 | PC400 | ||||||
| E70B | E110 | E120B | E215 | E235 | E307 | E311 | E312 | E322 | |
| E180 | E240 | E200B | E320 | E300 | E300B | E330 | E325 | ||
| EX30 | EX40 | EX60 | EX100 | EX120 | EX200 | EX220 | EX270 | EX300 | |
| EX400 | EX600 | UH043 | UH052 | UH53 | UH07 | UH081 | UH082 | UH083 | |
| FH120 | FH130 | FH150 | FH200 | FH220 | FH270 | FH300 | |||
| EC55 | EC130 | EC150 | EC200 | EC210 | EC240 | EC290 | EC360 | ||
| DH55 | DH130 | DH180 | DH200 | DH280 | DH300 | DH320 | |||
| R60 | R130 | R200 | R210 | R220 | R290 | R320 | R914 | ||
| HD250 | HD400 | HD450 | HD700 | HD770 | HD820 | HD1250 | |||
| SK40 | SK60 | SK100 | SK120 | SK200 | SK220 | SK04-2 | SK07 | ||
| SK07N2 | SK09 | SK12 | SK14 | SK300 | SK310 | SK400 | |||
| JS70 | JS75 | JS110 | JS130 | JS160 | JS180 | JS200 | JS220 | ||
| JS240 | JS260 | JS300 | JS330 | ||||||
| SH70 | SH100 | SH120 | SH160 | SH200 | SH260 | SH265 | SH280 | SH300 | |
| SH340 | LS2650 | LS2800 | LS3400 | LS4300 | |||||
| MX8 | SE200 | SE210 | SE280 | MX292 | SE350 | ||||
| MS110 | MS120 | MS140 | MS180 | ||||||
1.Are you manufacturer or trading company?
We are a manufacturer, we have our own factory and production lines to provide competitive products with high quality and good price.
2.Can your factory print our logo on the products?
Yes, we can laser print customer's logo on the product with the permission from customers for free.
3.Is your factory able to do OEM to help us to exptend our market?
We willing to help our customers to design their package box with their own logo. We have a design team and a marketing plan design Team to service our customers for this.
4.Can you accept trail/small order?
Yes, in the beginning we could accept small quantity, to help you open your market step by step.
If you have any other questions, please do not hesitate to contact us!
