Quick Details
-
Model Number:
-
CR2477
-
Place of Origin:
-
Jiangsu, China
-
Shape:
-
Round
-
Weight:
-
10.0g
-
Electric Energy:
-
0 Wh
-
Norminal Capacity:
-
1000mAh
-
Norminal voltage:
-
3V
-
Norminal Current:
-
1mA
-
Max Pulse Current:
-
20mA
-
Diameter:
-
24.5mm
-
Thickness:
-
7.7mm
-
Keywords:
-
Henli Max CR2477
-
Shelf life:
-
5~10years
-
OEM/ODM:
-
Accepatable
-
Customization service:
-
Add Pins Wires Plugs Brands
Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
Henli Max
-
Certification:
-
UL, RoHS, REACH, UN38.3
-
Model Number:
-
CR2477
-
Place of Origin:
-
Jiangsu, China
-
Shape:
-
Round
-
Weight:
-
10.0g
-
Electric Energy:
-
0 Wh
-
Norminal Capacity:
-
1000mAh
-
Norminal voltage:
-
3V
-
Norminal Current:
-
1mA
-
Max Pulse Current:
-
20mA
-
Diameter:
-
24.5mm
-
Thickness:
-
7.7mm
-
Keywords:
-
Henli Max CR2477
-
Shelf life:
-
5~10years
-
OEM/ODM:
-
Accepatable
-
Customization service:
-
Add Pins Wires Plugs Brands

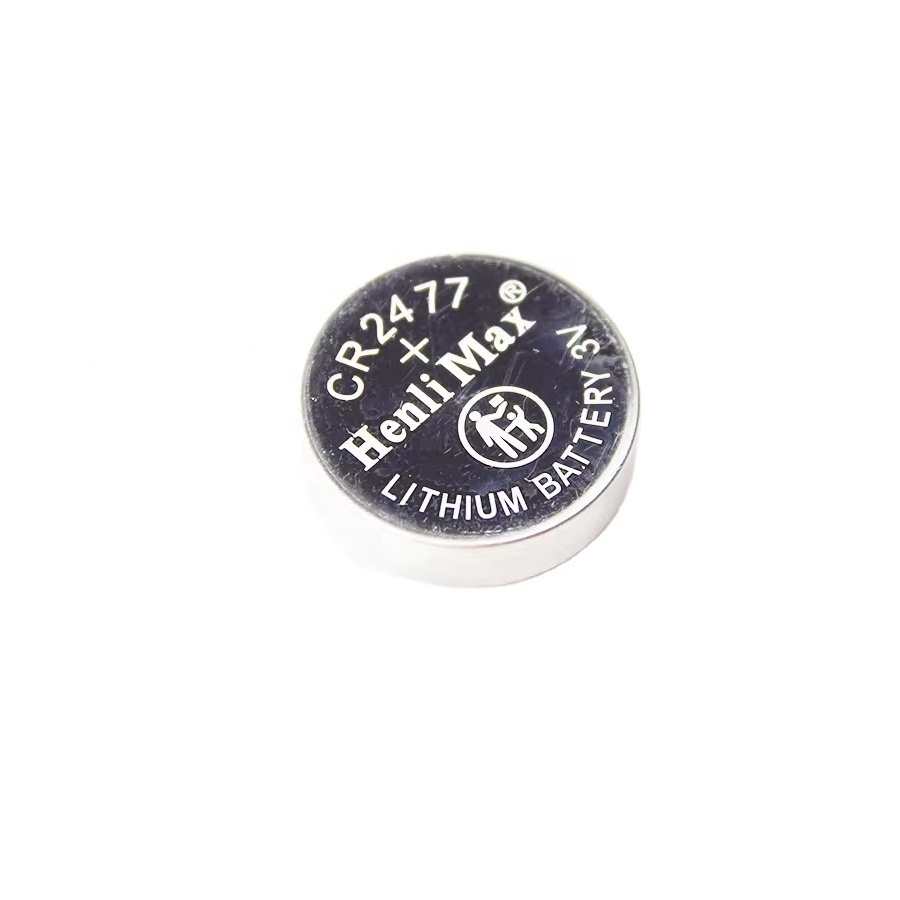

Henli Max's cr2477 lithium battery , an exceptional lithium manganese button battery. With a nominal voltage of 3V and a nominal capacity of 1000mAh, this henli max cr2477 delivers reliable power for a wide range of applications. Our groundbreaking research and innovative design have overcome the power limitations of traditional lithium batteries, ensuring robust large current working performance.
One of the key advantages of our cr2477 3v lithium battery is its excellent anti-leakage performance. We have independently designed and optimized the battery structure to ensure exceptional anti-leakage characteristics, guaranteeing safe and reliable operation. Additionally, our specially developed sealing technology ensures a long storage life for the battery, preserving its quality even during extended periods of storage.
| No. | Model | Normal Voltage (V) | Normal Current (mA) | Normal Capacity (mAh) | Max. Pluse Current (mA) | Diameter (mm) | Height (mm) | Operating Temperature(°C) |
| 1 | CR920 | 3 | 0.1 | 25 | 5 | 9.5 | 2.0 | -20~60ºC |
| 2 | CR927 | 3 | 0.1 | 32 | 3 | 9.5 | 2.7 | -20~60ºC |
| 3 | CR1025 | 3 | 0.1 | 30 | 5 | 10.0 | 2.5 | -20~60ºC |
| 4 | CR1212 | 3 | 0.1 | 20 | 5 | 12.5 | 1.2 | -20~60ºC |
| 5 | CR1216 | 3 | 0.1 | 24 | 5 | 12.5 | 1.6 | -20~60ºC |
| 6 | CR1220 | 3 | 0.1 | 40 | 5 | 12.5 | 2.0 | -20~60ºC |
| 7 | CR1225 | 3 | 0.1 | 50 | 5 | 12.5 | 2.5 | -20~60ºC |
| 8 | CR1616 | 3 | 0.2 | 55 | 5 | 16.0 | 1.6 | -20~60ºC |
| 9 | CR1620 | 3 | 0.2 | 70 | 5 | 16.0 | 2.0 | -20~60ºC |
| 10 | CR1632 | 3 | 0.2 | 125 | 10 | 16.0 | 3.2 | -20~60ºC |
| 11 | CR2016 | 3 | 0.2 | 90 | 10 | 20.0 | 1.6 | -20~60ºC |
| 12 | CR2025 | 3 | 0.5 | 165 | 15 | 20.0 | 2.5 | -20~60ºC |
| 13 | CR2032 | 3 | 0.5 | 240 | 25 | 20.0 | 3.2 | -20~60ºC |
| 14 | CR2330 | 3 | 0.5 | 280 | 20 | 23.0 | 3.0 | -20~60ºC |
| 15 | CR2354 | 3 | 1 | 560 | 20 | 23.0 | 5.4 | -20~60ºC |
| 16 | CR2412 | 3 | 0.2 | 100 | 5 | 24.5 | 1.2 | -20~60ºC |
| 17 | CR2430 | 3 | 1 | 300 | 30 | 24.5 | 3.0 | -20~60ºC |
| 18 | CR2450 | 3 | 3 | 600 | 50 | 24.5 | 5.0 | -20~60ºC |
| 19 | CR2477 | 3 | 1 | 1000 | 20 | 24.5 | 7.7 | -20~60ºC |
| 20 | CR3032 | 3 | 1 | 550 | 35 | 30.0 | 3.2 | -20~60ºC |
