Quick Details
-
Max. Loading Capacity:
-
800L
-
Weight (KG):
-
600 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HXD
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
2100*850*1700mm
-
Power (kW):
-
5.5 kW
-
Product name:
-
substrate mixing machine efficiency ribbon soil mixer machine
-
Machine Material:
-
carbon steel/stainless steel 201/Stainless Steel 304 / SUS316L
-
Function:
-
Powder Mixer Blender
-
Inside structure:
-
Double Spiral belt mixer
-
Discharge method:
-
normal discharge or Butterfly valve
-
Barrel volume:
-
300L-5000L
-
barrel size:
-
1.05*0.5*0.6m
Quick Details
-
Barrel Volume (L):
-
800
-
Max. Loading Volume (L):
-
800 L
-
Range of Spindle Speed(r.p.m):
-
15 - 20 r.p.m
-
Max. Loading Capacity:
-
800L
-
Weight (KG):
-
600 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HXD
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
2100*850*1700mm
-
Power (kW):
-
5.5 kW
-
Product name:
-
substrate mixing machine efficiency ribbon soil mixer machine
-
Machine Material:
-
carbon steel/stainless steel 201/Stainless Steel 304 / SUS316L
-
Function:
-
Powder Mixer Blender
-
Inside structure:
-
Double Spiral belt mixer
-
Discharge method:
-
normal discharge or Butterfly valve
-
Barrel volume:
-
300L-5000L
-
barrel size:
-
1.05*0.5*0.6m
Products Description
Introduction

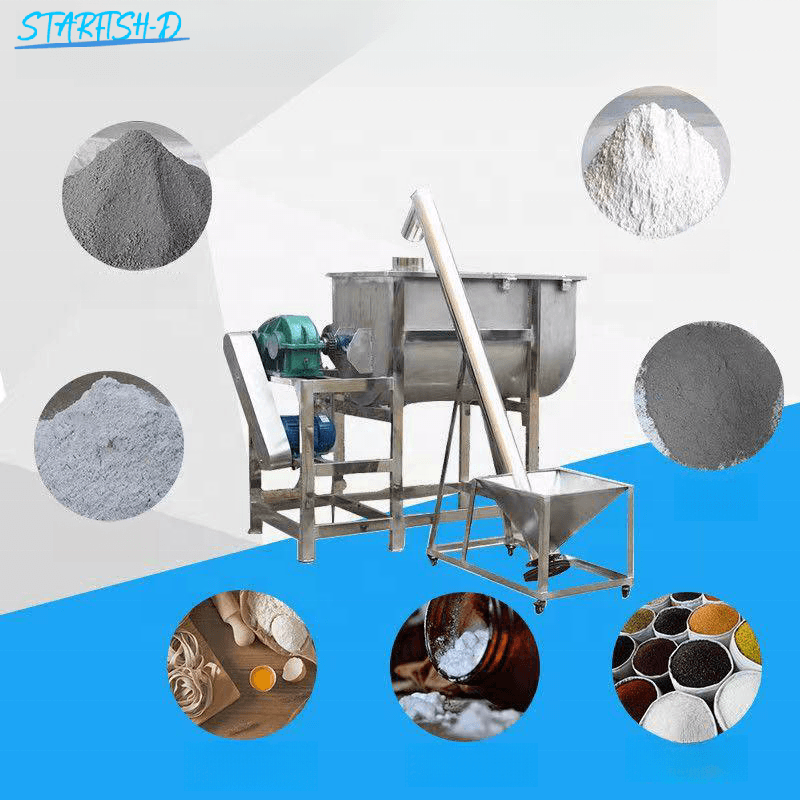

The horizontal ribbon mixer is a common industrial mixing equipment. The material has both circular and axial movements under the action of the paddle. According to the movement state of the material, it generates convection mixing, shear mixing and diffusion mixing. Through high-speed rotation, the material agglomerates can be dispersed, achieving ideal mixing effect.
Application:
The horizontal ribbon mixer is used in a variety of fields, such as the manufacture of chemicals, the food industry and construction materials.can be used in Food industry: flavor, spice, seasoning, flour, milk powder, coffee,bakery powder, protein powder, intermediate, etc. Chemical industry: fertilizer, animal feed, fodder, pesticide, putty powder, wall putty powder, gypsum powder, dry mortar, dry cement, colorant, reactive dyes, putty, anticrack sludge, etc. It can mix various powders, granules and other materials. It is not only suitable for small batch production and experimental research, but also can be integrated with other production line equipment to form an automated production process and improve production efficiency and output.
Machine Parameter
|
Model
|
Power (KW)
|
Capacity
|
Max Mixing Powder
|
Mixing time (mins/batch)
|
|
HXD300
|
3
|
300
|
280
|
6-8
|
|
HXD500
|
4
|
500
|
480
|
6-8
|
|
HXD800
|
5.5
|
800
|
780
|
8-10
|
Packing & Delivery
Packing：
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
