Quick Details
-
Material:
-
Stainless Steel 304
-
Product name:
-

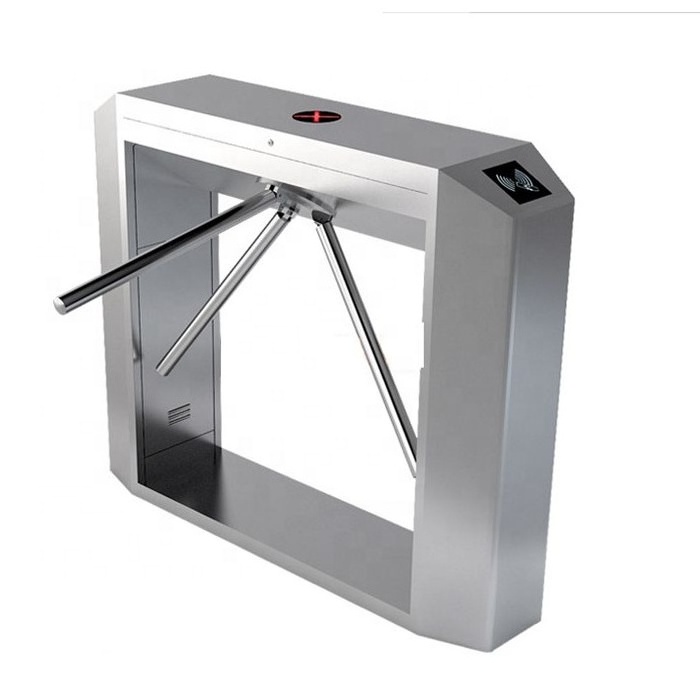

Tripod Turnstile
-
Size:
-
1200*280*1000mm
-
Certificate:
-
CE Approved
-
package size:
-
1250*350*1050mm
-
Type:
-
Barrier
-
Usage:
-
Subway Station Mall
-
OEM:
-
Accepted
-
Color:
-
Silver
-
Operation:
-
Half automatic
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hezhong
-
Model Number:
-
HZ-1261
-
Material:
-
Stainless Steel 304
-
Product name:
-
Tripod Turnstile
-
Size:
-
1200*280*1000mm
-
Certificate:
-
CE Approved
-
package size:
-
1250*350*1050mm
-
Type:
-
Barrier
-
Usage:
-
Subway Station Mall
-
OEM:
-
Accepted
-
Color:
-
Silver
-
Operation:
-
Half automatic
Product Description
Specification
|
Power Supply
|
AC220V
|
|
Temperature
|
-15 to 60 degrees
|
|
Humidity
|
<95%, without concretion
|
|
Passage Width
|
<=600mm
|
|
Passing Speed
|
40 persons/min
|
|
Power Consumption
|
100W
|
|
Input Interface
|
+12V electrical signal or impulse signal
|
|
width
|
more than 100ms
|
|
drive current
|
>10mA
|
|
Communication Interface
|
RS485 (Distance:<=1200m)
|
|
Material
|
304 stainless steel
|
|
Dimension
|
420*330*980 mm
|
Products Feature
1. GB 304 stainless steel sheet metal forming, beautiful, durable
2. Dimensions : 420 × 330 × 980 (mm)
3. Channel width: less than 550 (mm);
4. Brake lever steering : one-way, two-way (optional)
5. Control mode: manual/ automatic (optional)
6. Can mount a variety of control devices: metal security gate/ IC card/ ID card/ card/ barcode card, etc.
7. Working environment: indoor(outdoor use shall stand awning)
8. Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact;
9. Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching ;
10. Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates ;
11. Multiple modes of function: by setting the switch can be set to the gates normally open , normally closed two modes of operation ;
12. Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;
13. Power off the pole, the power from the bar features: gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements ; ( automatic type )
14. Anti-collision function: no credit card pedestrian push the brake lever , lock gates ;
15. Remote control: RS485 card can be accessed by computer or TCP to RS485 remote control gates ;
16. Automatic reset function: by credit card is not specified , within the time gates back in situ cancel access .
2. Dimensions : 420 × 330 × 980 (mm)
3. Channel width: less than 550 (mm);
4. Brake lever steering : one-way, two-way (optional)
5. Control mode: manual/ automatic (optional)
6. Can mount a variety of control devices: metal security gate/ IC card/ ID card/ card/ barcode card, etc.
7. Working environment: indoor(outdoor use shall stand awning)
8. Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact;
9. Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching ;
10. Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates ;
11. Multiple modes of function: by setting the switch can be set to the gates normally open , normally closed two modes of operation ;
12. Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;
13. Power off the pole, the power from the bar features: gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements ; ( automatic type )
14. Anti-collision function: no credit card pedestrian push the brake lever , lock gates ;
15. Remote control: RS485 card can be accessed by computer or TCP to RS485 remote control gates ;
16. Automatic reset function: by credit card is not specified , within the time gates back in situ cancel access .
Product View
