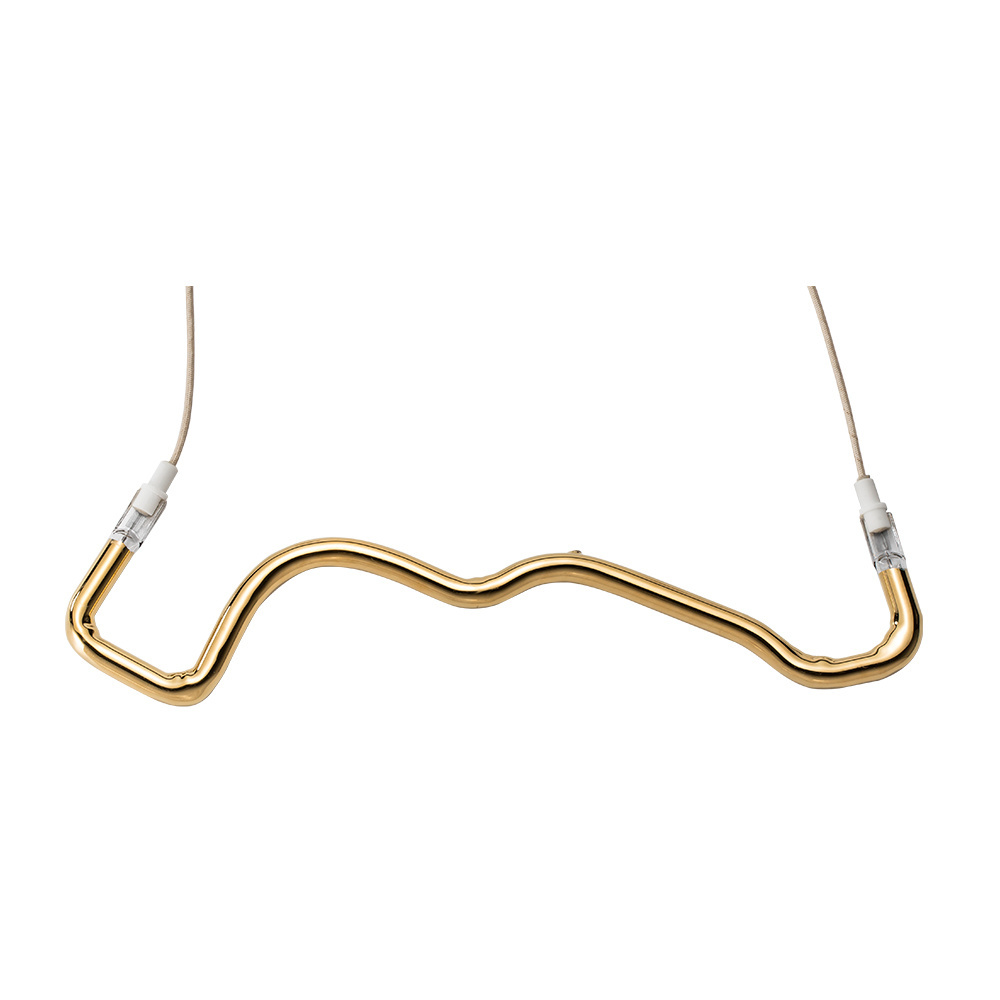

150-6000W 3D contoured quartz glass tube infrared heating element

150-6000W 3D contoured quartz glass tube infrared heating element

FOB Reference Price: Get Latest Price

≥2 Pieces

US $80

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

IR Distance(M):: other

Lifespan (hours):: 5000-6000h

Lamp Luminous Efficiency(lm/w):: -

Place of Origin:: China

Brand Name:: UVIR

Product name:: Halogen Infrared Heat Lamp

Tube color:: Gold

Power:: 150-6000W

Filament:: Tungsten

Type:: 3D Infrared Heater

Base type:: RS

Cable Wire:: Teflen / textile wire / High Temperature Resistant wire

Tube Diameter:: 8-14mm

Wavelength:: Short wave/Medium wave/Long wave

Application:: Industrial heating/Food heating/Thermoplastic/Oven

Quick Details

Warranty(Year):: 1-Year

Color Temperature(CCT):: Warm White

Lamp Body Material:: Quartz

IR Distance(M):: other

Lifespan (hours):: 5000-6000h

Lamp Luminous Efficiency(lm/w):: -

Place of Origin:: China

Brand Name:: UVIR

Product name:: Halogen Infrared Heat Lamp

Tube color:: Gold

Power:: 150-6000W

Filament:: Tungsten

Type:: 3D Infrared Heater

Base type:: RS

Cable Wire:: Teflen / textile wire / High Temperature Resistant wire

Tube Diameter:: 8-14mm

Wavelength:: Short wave/Medium wave/Long wave

Application:: Industrial heating/Food heating/Thermoplastic/Oven

Infrared lamps , also known as infrared heating lamps, refer to lamps whose main component of radiation is in the infrared spectrum range. Infrared lamps can provide precisely controlled energy radiation and can be used for heating. Industrially, they are mainly used in hot electronic wafers in the semiconductor industry, blown PETP bottles, reflow soldering equipment, dry fillers, dry paint in motor vehicle repairs, and mainly in medical applications. It is used in toner positioning in copiers, melting of solder on printed circuit boards, food heating and disinfection, etc. Infrared lamps are widely used in machinery, automobiles, food,medical and other industries.

Infrared lamps have a leading position in the international market and have huge market potential.

They have the following advantages:

1 . The infrared radiation intensity is high and the infrared wavelength is stable.

2. No ultraviolet leakage and dazzling visible light.

3. Fast thermal response time and easy temperature control.

4. Rapid heating and small thermal inertia.

5. When the lamp is lit, there is no oxygen burning and no poisonous gas.

6. Suitable for industrial heating (industrial machinery, baking machinery).

We can create special shaped infrared radiators based on the corners and edges of the workpiece, accura-tely locate the edges and contours, and heat them in a focused manner to complete the required bending and heating process.

Product name	3D Contoured Infrared lamp
Power(W)	150-6000, Customized
Voltage(V)	45-480, Customized
Wavelength	Short wave/Medium wave
Tube Diameter	8-14 mm
Reflector	White/Gold/White
Special requirements	Can be customizable
Application	Automotive Industry: Plastic Welding/Robotic gluing equipment,etc.

If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!

FAQ

Q1. Can all the products be customized?

A: We are the factory of making IR lamps，UV lamp，IR accessories. All the our products can be made by the details you provide.

Q2. What is the outer package of the product?

A: carton packing or wooden packing.

Q3. Processing cycle?

A: Some of products we have in stock. Usually need about 15days to maked.

Q4. Order quantity?

A: Customized IR Lamps Usually is 2 pieces.

Q5.What about the lead time for mass production?

A: It depends on the order quantity and the season you place the order. Generally speaking, the lead time of MOQ is about 15 to 20 days. We suggest that you start inquiry at least two months before the date you would like to get the products at your country.
