2. The edge of the marking shoe is uniform, the thickness is equal, and the line shape is beautiful.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
126 kg
-
Features:
-
Convenient And Easy-operated
-
Type:
-
hot melt
-
Line Types:
-
Thermoplastic Line
-
Marking Thickness:
-
1.5-2.5mm
-
Usage:
-
Airport, Express Way,Guiding Arrows,Parking,Warehosue,Stadium,etc
-
Application:
-
Traffic Line
-
Road marking machine:
-
Hand PushThermoplastic Paint Road Line
-
Mark width:
-
100-450 ( optioanl)
-
Paint Tank Capacity:
-
100KG
Quick Details
-
Place of Origin:
-
Jiangsu, China, CN;JIA
-
Brand Name:
-
LXD
-
Dimension(L*W*H):
-
1150*850*950mm
-
Weight:
-
126 kg
-
Features:
-
Convenient And Easy-operated
-
Type:
-
hot melt
-
Line Types:
-
Thermoplastic Line
-
Marking Thickness:
-
1.5-2.5mm
-
Usage:
-
Airport, Express Way,Guiding Arrows,Parking,Warehosue,Stadium,etc
-
Application:
-
Traffic Line
-
Road marking machine:
-
Hand PushThermoplastic Paint Road Line
-
Mark width:
-
100-450 ( optioanl)
-
Paint Tank Capacity:
-
100KG
Product Description

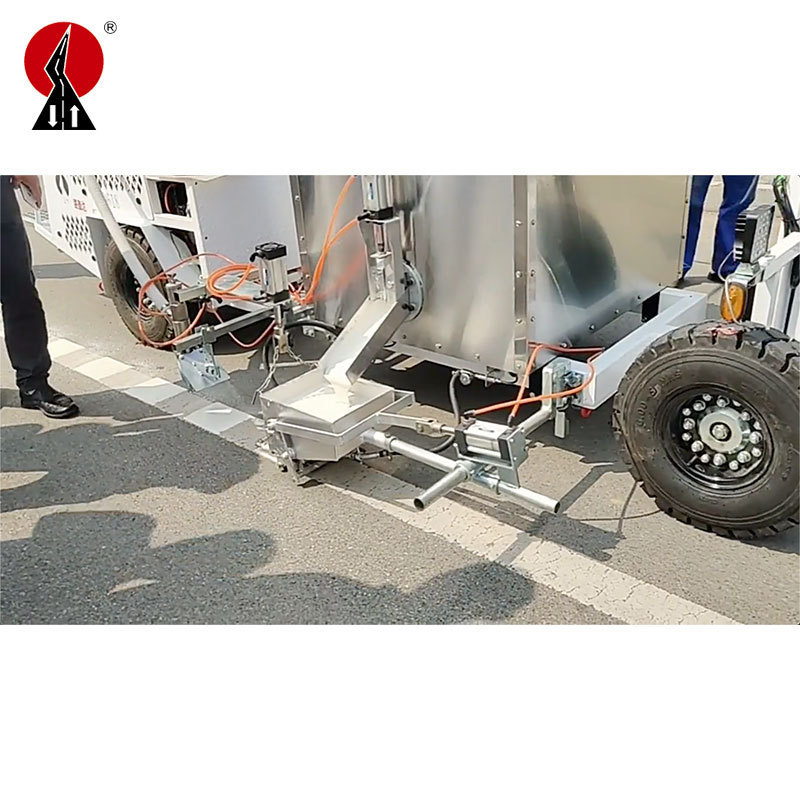

1. High-precision one-piece cast iron marking shoe.
2. Forward speed: 15km/h, backward speed: 10km/h.
Specification
|
Marking equipment
|
high-precision integrated marking shoe,screeding type,standard configuration: 150mm
|
|
Grounded blade
|
inlaid hard alloy,and also have pure alloyed grounded blade for your choice
|
|
Paint container capacity
|
100kg(4 bags thermoplastic paint)
|
|
Paint container
|
double layer stainles steel,equipped with inserted dismountable manumotive stirring device
,the container is removable & interchangeable for quick color changes |
|
Glass beads container capacity
|
10kg
|
|
Glass beads container
|
Automatic spreader
|
|
Glass beads dispenser
|
100/150/200/250/300/400/450mm(optional)
|
|
Line thickness
|
1.0-3.0mm(adjustable)
|
|
Line marking width
|
50/100/150/200/250/300/400/450mm(optional)
|
|
Heating temperature
|
180~210℃
|
|
Heating Mode
|
Liquefied petroleum gas heating
|
|
Gas tank
|
15kg
|
|
wheel
|
High temperature resistance soft rubber,rear wheel equipped with localiser to make the machine walk along the straight line
|
|
Speed
|
1.5km/h
|
|
Driving method
|
Hand-push
|
|
Machine Weight
|
126kg
|
|
Dimension
|
1150×850×950mm
|
Application
