Quick Details
-
Application:
-
Workshop
-
Design Style:
-
Industrial
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEIYUAN
-
Model Number:
-
DFC-10001A
-
Sample:
-
Available
-
Width:
-
1.25 m
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Project Solution Capability:
-
Others
-
Application:
-
Workshop
-
Design Style:
-
Industrial
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEIYUAN
-
Model Number:
-
DFC-10001A
-
Sample:
-
Available
-
Width:
-
1.25 m
Description

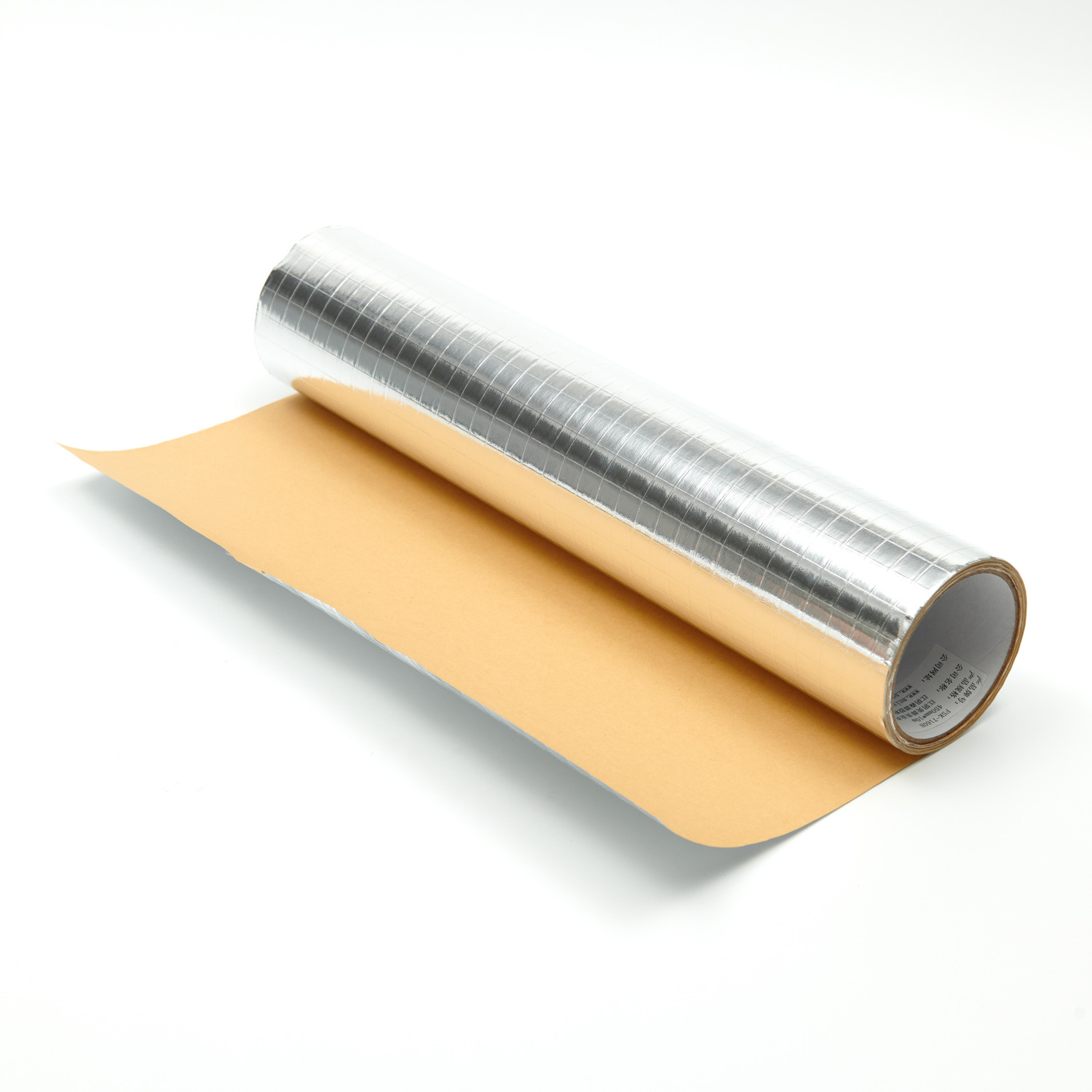

DFC-1001A is a light duty, commercial grade D/S Foil Insulation. It is made from 2 outer layers of pure aluminum foil and 1 layer natural kraft paper. These layers are bonded together with polyethylene and reinforced with 3-way fiberglass scrim. It is ideally used as sarking and insulation under roofs, in walls behind cladding or under timber floors, for residential and commercial building. Combining with glasswool / foam insulation, it is excellent as a vapor barrier for air-conditioning ducts, pipes and vessels.
Construction
|
Composition |
Description |
Value (English) |
Value (Metric) |
|
Foil |
Aluminum |
0.28 mil |
7 micron |
|
Reinforcing-MD |
Fiberglass |
2/ inch |
8/ 100mm |
|
Reinforcing-XD |
Fiberglass |
3/ inch |
12/ 100mm |
|
Adhesive |
Polyethylene |
------ |
------ |
|
Kraft |
Natural |
36.6 lbs / 3000 ft2 |
60gsm |
|
Adhesive |
Polyethylene |
------ |
------ |
|
Foil |
Aluminum |
0.28 mil |
7 micron |
T ypical Physical Property
|
Physical Property |
Test Method |
Value (English) |
Value (Metric) |
|
Basis Weight |
Scale |
23.5 lbs / 1000 ft2 |
115 gsm |
|
Permeance (WVTR) |
ASTM E96, Procedure A |
0. 02 perm |
1.15 ng/N . s |
|
Tensile Strength - MD |
ASTM D828 |
34 lbs/In |
150 N/25mm |
|
Tensile Strength - XD |
ASTM D828 |
18.2 lbs/In |
80 N/25mm |
|
Burst Strength |
ASTM D774 |
50 psi |
35 N/cm2 |
|
Low Temperature Resistance |
ASTM D1790 4 hrs @ - 40 ℉ ( -40 ℃ ) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
|
High Temperature Resistance |
ASTM D1790 4 hrs @ +150 ℉ (+66 ℃ ) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
|
Emissivity |
ASTM E408 |
0.03 |
0.03 |
Available Roll Width : 1.25m
