Quick Details
-
Material:
-
Sandwich panel,EPS cement sandwich panel+steel frame
-
Interior&exterior wall:
-
light weight eps cement panel
-
Roof:
-
Eps Panel/color plate/color-coated board
-
Ceiling:
-
Gypsum board/aluminium gussert/PVC
-
Sound insulation:
-
38-46dB
-
Anti-earthquake:
-
8-Grade
-
Water&Electrical system:
-
Yes
-
Drainage system:
-
Yes
-
Furniture&appliances:
-
normal life need
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
DAQUAN
-
Model Number:
-
DQ-Prefab house
-
Material:
-
Sandwich panel,EPS cement sandwich panel+steel frame
-
Interior&exterior wall:
-
light weight eps cement panel
-
Roof:
-
Eps Panel/color plate/color-coated board
-
Ceiling:
-
Gypsum board/aluminium gussert/PVC
-
Sound insulation:
-
38-46dB
-
Anti-earthquake:
-
8-Grade
-
Water&Electrical system:
-
Yes
-
Drainage system:
-
Yes
-
Furniture&appliances:
-
normal life need

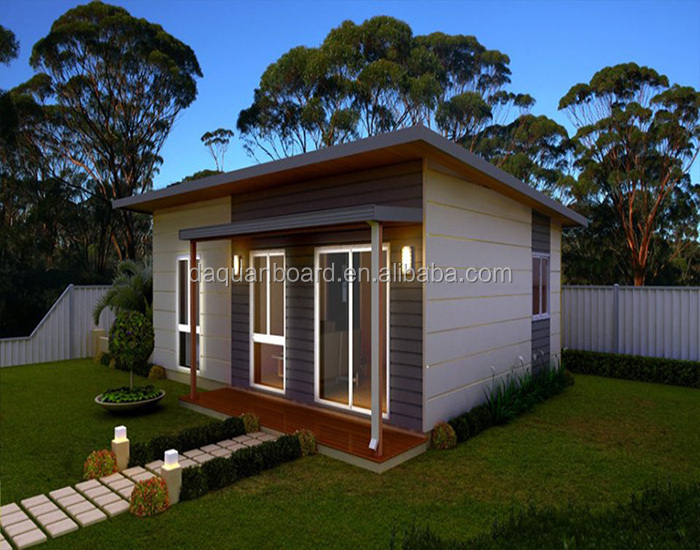

Lounge design flat grandma prefab granny flat granny flat house plans 2 bedroom flats
Wuhan Daquan Energy Saving Board Co.,Ltd
We provide all construction decoration materials, complete installation drawings, installation guide service and send engineers to ensure turnkey projects.
EPS Cement Wall Panel Advantages
1.Heat Insulation And Preservation
The energy saving feature of Daquan energy-saving boards chiefly embodies in heat preservation and insulation. Major material adopt anti-freezing and heat preservation environmnetal protection materials polysyrene grains with good heat insulation and preservation function, which could adjust the indoor temperature at a constant range, thus achieving the effects of ecological adjustment.
2.Water Proof, Fire Proof
The face panel of Daquan energy-saving boards on both sides are 4.5mm silicon-calcium fire proof boards and the main material is a mixture of cement, sand, fly ash and so on. Daquan enengy-saving boards have a fire proof limit of 4 hours against a hign temperature of 1000℃ and incombustibility standard achieve national level A. Besides, these material give out no toxic gas and perfectly meet the international environment protection criterions. The test also prove that water container can be made by Daquan panel with no need for plastering and the containers have no leakage at all.
3.Sound Insulation And Absorption
The inside constructional material(EPS polystyrene grain) has good sound insulation and sound-absorbing functions.
4.Easy Construction And Shorter Time
The construction work with traditional blocks taking 12 people 60 minutes to complete will only need 3 people to spend 60 minutes to finish if they use Daquan boards which can save a lot of labor cost for the construction part.
5.High Intensity And Quake Proof
Daquan energy-saving products all with high intensity and the earthquake resistance function can reach to 8.5 magnitudes. And shock resistace function is dozens times higher tha other wall material. They can be nailed directly or have expansion bolt to lift and hang heavy things, they also can be covered by ceramic tile, wall paper, wood panel, coating etc.
6.Space And Cost Saving
The thickness of Daquan energy-saving products are between 60mm to 180mm. They can increase the building spaces compared to the traditional blocks. The weight is only 1/12 of traditional wall body, and save the cost on construction structure.
Panels Packing
Houses Packing
Shipping Methods
Samples : we usually delivery our panel samples by express such as DHL,Fedex,UPS,TNT ,and the samples are free but freight charged from customers.
Formal orders : we usually delivery our wall panels and houses materials by containers ,and the MOQ is 20ft container.If you want to make a budget first please tell us your nearest port in advance.
1. Q: Since when your company started producing this producer? What's the annual output now?
A: Since 2005 we got a sample from Australia, our boss made research into it, tried several times and then start the stable production. The annual output is about 500, 000sqm per year.
2. Q: What are the advantages of your EPS cement sandwich panel?
A: Our panel's outstanding advantages are light weight, heat insulation, waterproof, fireproof, sound insulation, fast construction and so on.
3. Q: Is the panel fire rated, if so, what is the rating?
A: Theoretically, it can endure the fire for 4 hors in the heat of 1000c. But in fact, it is incombustible.
4. Q: Do you have any certificate to help us get government's approval?
A: We can supply our ISO certificate, test report, SGS certificate as your support document. Since the building standards are different in various countries, most of our customers buy the panels for test and get approval by themselves.
5. Q: I need samples for customer approval, will this be possible?
A: We can provide sample at your required size, but we will not afford the cost of the mail, becausewe always receive requirements for delivery of the panel sample, therefore, we just can offer you the free sample without paying the delivery cost. Besides, we suggest you to buy a small container with various sizes, the whole panel is more effective and persuasive for test than small samples.
