Quick Details
-
Certificate:
-
ISO CE
-
Origin:
-
Shanghai(China)
-
Business type:
-
Manufacture ,Trading
-
General Use:
-
Hospitals, Clinics, Optical Shops
-
Eco-friendly:
-
yes
-
Weight:
-
5KG
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LINK
-
Model Number:
-
LCP-100
-
Certificate:
-
ISO CE
-
Origin:
-
Shanghai(China)
-
Business type:
-
Manufacture ,Trading
-
General Use:
-
Hospitals, Clinics, Optical Shops
-
Eco-friendly:
-
yes
-
Weight:
-
5KG

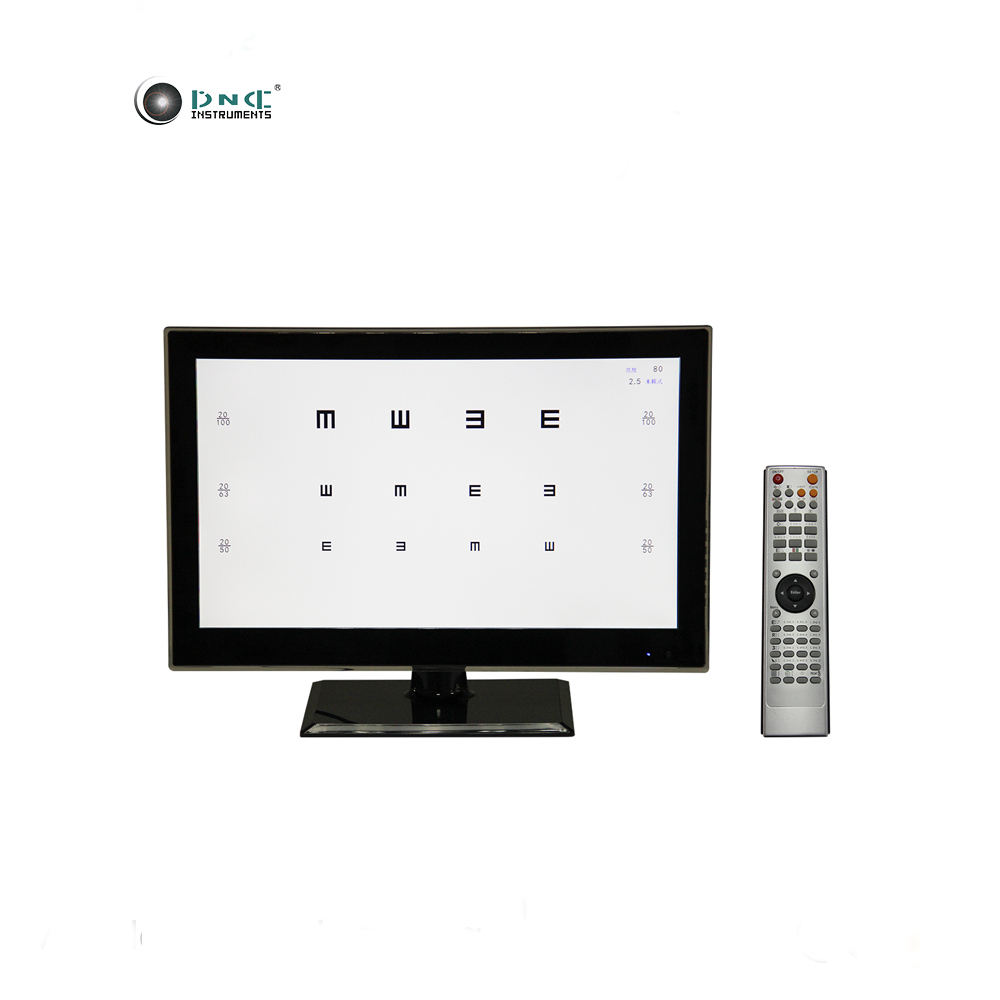

Eye Tester visual acuity examination apparatus LCP-100 Ophthalmic Automatic Chart Projector With LCD System For Chart Display
LCP-100 LCD Chart Projector
Features
• Selectable Working Distance: 2 to 6 meters (In the Mirror mode:5-6 meters)
• Over Forty working distance (2, 2.1, 2.2, 2.3…..5.8, 5.9, 6 meters) (8, 8.5, 9, 9.5 …… 18,
18.5, 19, 19.5, 20 foot) are available to suit the layout of the clinic. The LCP-100 chart size
automatically calibrates to the chosen working distance.
Specification
|
LCD |
|
|
Type |
19-inch SXGA liquid crystal display with long lasting backlight |
|
Resolution |
1280×1024 pixels |
|
Chart window size |
390(W) ×240(H) mm |
|
Brightness |
230±30 cd/ M2 |
|
Charts |
|
|
VA chart type |
Landolt C,Tumbling E,Letters, Numbers,Children |
|
Isolation |
Sing letter,Horizontal/Vertical line |
|
Range |
Decimal : (0.05) – (2.0) |
|
20f : (400) – (10) |
|
|
6m : (400) – (10) |
|
|
Special chart type |
Red-green, Dots, Astigmatism clock dial, ETDRS, Phoria, Phoria with fixation, Coincidences, Schober, Worth etc . (Depends on the chart type.) |
| Distance of installation | 2-6m(10cm of unit) 8-20f(0.5f of unit) |
| Memory card | CF card/Built-in card slot |
| Power supply | AC 100V-230V 50 / 60Hz |
| Power consumption | 100VA |
| Dimensions & Weight |
500 (W) ×555 (H) ×38(D) mm / 5kg 19.7 (W) ×21.9 (H) ×1.5 (D) /16.5 lbs |
