Quick Details
-
Screen Dimension:
-
Customized
-
Chip meterial:
-
GaAlAs
-
Input Voltage:
-
3.0~3.6V
-
Life:
-
50,000h
-
Digit Height:
-
2.0inch
-
Wavelength:
-
465~475nm
-
Face Color:
-
Black/Gray face
-
Epoxy Color:
-
White diffused
-
Polarity:
-
Common Anode/Common Cathode
-
Package Details:
-
Cartons
-
Certificate:
-
ROHS, ISO9001
Quick Details
-
Brand Name:
-
HS
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HS-20101A/BX
-
Screen Dimension:
-
Customized
-
Chip meterial:
-
GaAlAs
-
Input Voltage:
-
3.0~3.6V
-
Life:
-
50,000h
-
Digit Height:
-
2.0inch
-
Wavelength:
-
465~475nm
-
Face Color:
-
Black/Gray face
-
Epoxy Color:
-
White diffused
-
Polarity:
-
Common Anode/Common Cathode
-
Package Details:
-
Cartons
-
Certificate:
-
ROHS, ISO9001

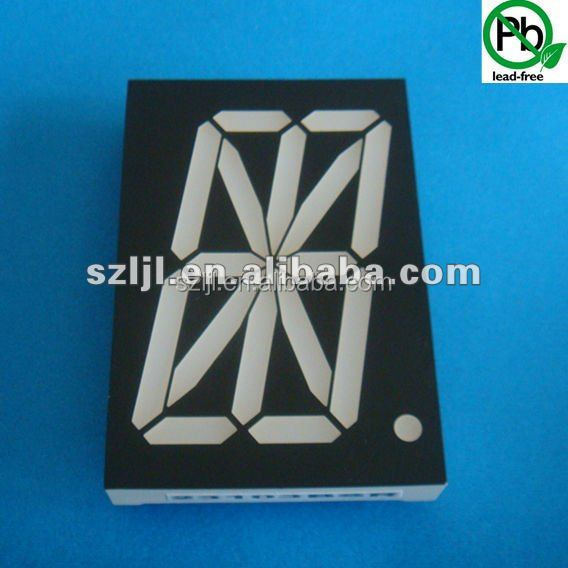

ROHs approved Alpha-numeric Display
| Place of Origin: Guangdong China (Mainland) | Brand Name: HS | Model Number: HS-20101A/BX |
| Usage: Outdoor | Tube Chip Color: Blue | Display Function: Graphics |
| Pixels: 20mm |
| Packaging Detail: | Cartons |
| Delivery Detail: | 7~15 days |
Outdoor LED Alphanumeric Display:
1.High luminous
2.High efficiency
3.Luminous evenly distributed
4.Low power consumption
CE&RoHS Approved Outdoor LED Alphanumeric Display
ABSOLUTE MAXIMUM RATINGS (at T=25°C)
|
PARAMETER |
SYMBOL |
MAXIMUM RATING |
UNIT |
|
Power Dissipation |
P D |
100 |
mW |
|
Peak Forward Current (1/10 Dudy Cycle, 0.1 Ms Pulse Width) |
I PEAK |
150 |
mA |
|
DC Forward Current |
I F |
25 |
mA |
|
Reverse Voltage |
V R |
5 |
V |
|
Operating Temperature Range |
T A |
-40°C to +85°C |
|
|
Storage Temperature Range |
T STG |
-40°C to +85°C |
|
|
Solder temperature 1/16 inch below seating plane for 3 seconds at 260°C |
|||
ELECTRICAL OPTICAL CHARACTER AND CURVES (at T=25°C)
|
PARAMETER |
SYMBOL |
TYP |
MAX |
UNIT |
LOCATION |
TEST CONDITION |
|
Forward Voltage |
V F |
2.1 |
2.4 |
V |
Per Chip |
I F =20mA |
|
Luminous Intensity |
Iv |
60 |
70 |
mcd |
Per Chip |
I F =20mA |
|
Peak Emission Wavelength |
λp |
630 |
- |
nm |
Per Chip |
I F =20mA |
|
Dominant Emission Wavelength |
λ |
625 |
630 |
nm |
Per Chip |
I F =20mA |
|
Spectral Line Half-Width |
λ1/2 |
20 |
- |
nm |
Per Chip |
I F =20mA |
|
Capacitance |
C |
40 |
- |
Pf |
Per Chip |
VF=0V;f=1Mhz |
|
Reverse Current |
I R |
- |
10 |
uA |
Per Chip |
V R =5V |
PRODUCTS
Package Dimension
